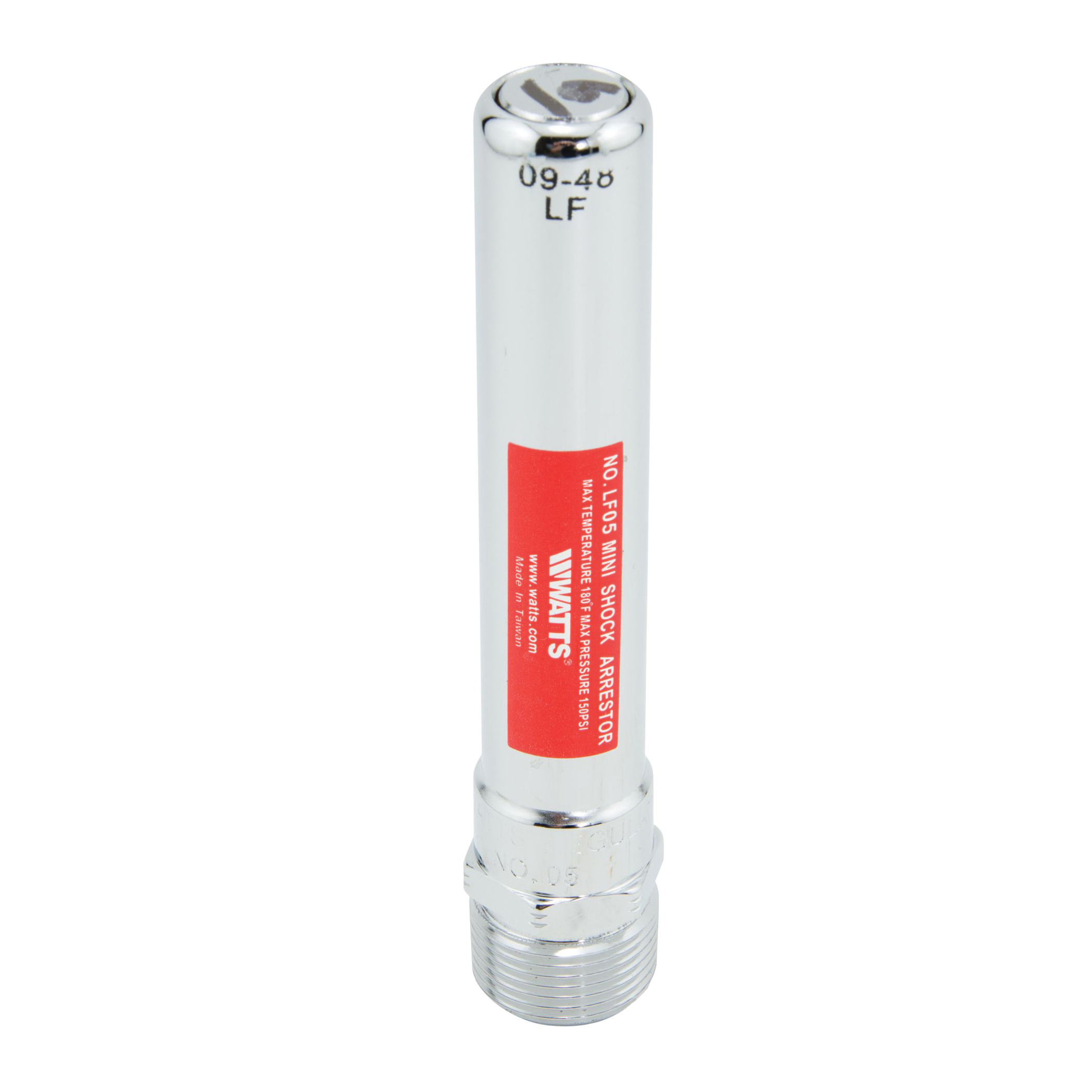

WATTS® 0009855 LF05 Water Mini-Hammer Arrester, 3/4 in Nominal, NPT End Style, 150 psi Pressure, Import
CBPN:253555
UPC:098268430165
MPN:0009855
Price:
$118.72 / EA
Prop 65:
DESCRIPTION
WATTS® Water Mini-Hammer Arrester, Series: LF05, 3/4 in Nominal, NPT, 150 psi, 33 to 180 deg F, 1-1/8 in W x 5-3/8 in H, Import
This 3/4 in lead free mini water hammer Arrester provides economical and effective single fixture protection used in residential water system applications such as dishwasher, washing machine and fast closing positive shutoff valve applications. It is designed to provide automatic, repetitive control of water hammer in residential and light industrial applications and prevent water hammer conditions that are damaging to pipes and appliances. This is a factory air charged, permanently sealed unit with NPT end connection, straight body design and a chrome plated finish. It should be installed as close to the shock source as possible, with one unit each for the hot and cold water lines. The temperature range is 33 to 180 deg F and the operating pressure is up to 150 psi.
WATTS® 0009855 LF05 Water Mini-Hammer Arrester, 3/4 in Nominal, NPT End Style, 150 psi Pressure, Import
CBPN:253555
MPN:0009855
UPC:098268430165
Price:
$118.72 / EA
Prop 65:
DESCRIPTION
WATTS® Water Mini-Hammer Arrester, Series: LF05, 3/4 in Nominal, NPT, 150 psi, 33 to 180 deg F, 1-1/8 in W x 5-3/8 in H, Import
This 3/4 in lead free mini water hammer Arrester provides economical and effective single fixture protection used in residential water system applications such as dishwasher, washing machine and fast closing positive shutoff valve applications. It is designed to provide automatic, repetitive control of water hammer in residential and light industrial applications and prevent water hammer conditions that are damaging to pipes and appliances. This is a factory air charged, permanently sealed unit with NPT end connection, straight body design and a chrome plated finish. It should be installed as close to the shock source as possible, with one unit each for the hot and cold water lines. The temperature range is 33 to 180 deg F and the operating pressure is up to 150 psi.
Specifications
Brand: WATTS®
Weight: 0.43lbs
End Style: NPT
Nominal Size: 3/4 in
Series: LF05
Temperature Rating: 33 to 180 deg F
Pressure Rating: 150 psi
Dimensions: 1-1/8 in W x 5-3/8 in H
Manufacturer Name: Watts Water Technologies
Application: Light Commercial and Residential
Warranty: 1 year
Domestic/Import: Import
Country of Origin: TW
Standards and Approvals: ASSE 1010 | cUPC Listed | IAPMO Listed | US Green Building Council Member | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm For more information go to www.P65Warnings.ca.gov
Item Features
- Ideal for dishwashers, washing machines and quick-closing faucets
- Can be installed vertically, horizontally or any angle in concealed locations without access panels
- Factory air charged and are not rechargeable
- 60 psi air pre-load
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
