WATTS® 0009450

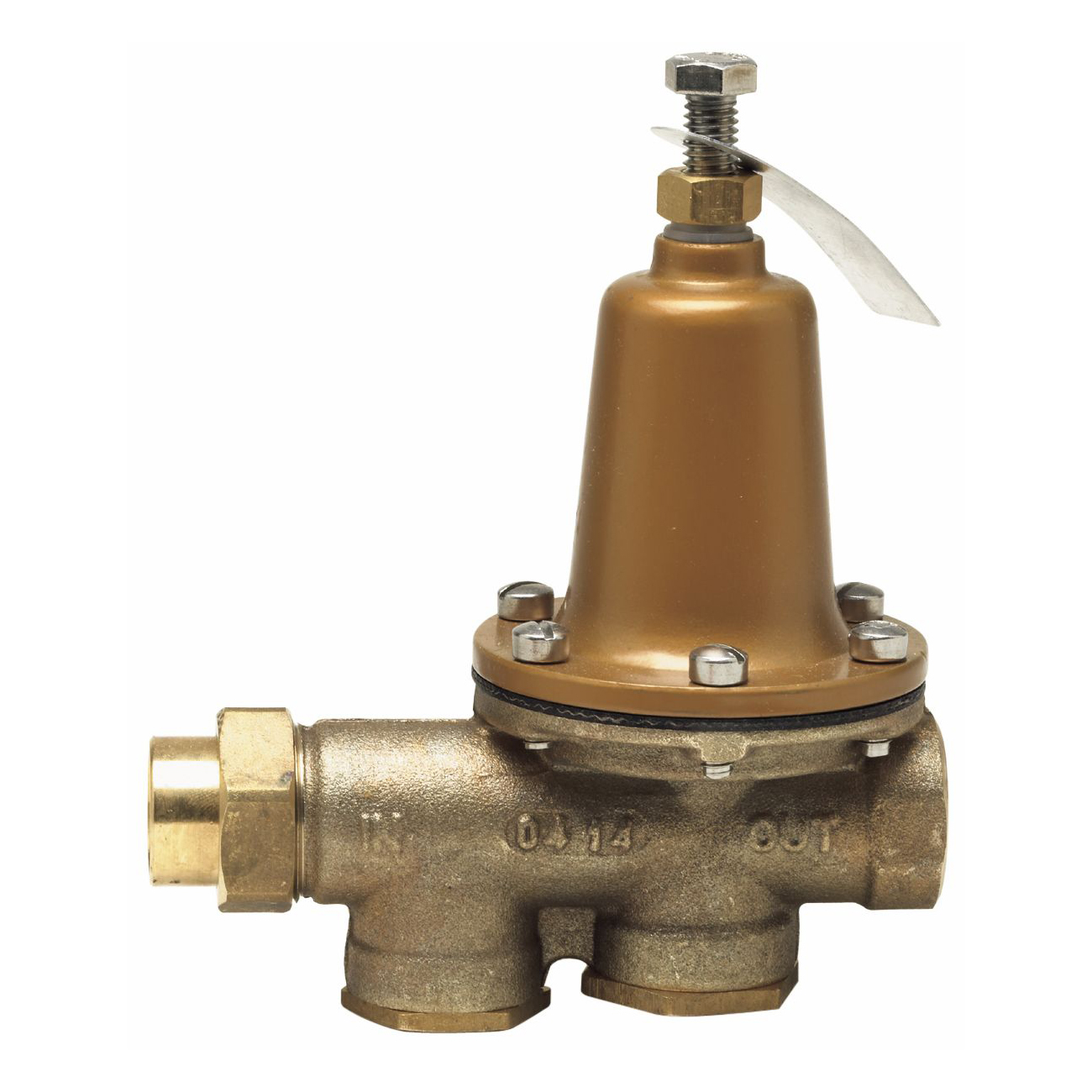

WATTS® 0009450 LF25AUB-LP-Z3 Pressure Reducing Valve, 2 in Nominal, FNPT Union x FNPT End Style, 10 to 35 psi Pressure, Cast Copper Silicon Alloy Body, Domestic

CBPN:201193

UPC:098268332063

MPN:0009450

Price:
$1455.66 / EA
Prop 65:

DESCRIPTION

WATTS® Pressure Reducing Valve, Series: LF25AUB-LP-Z3, 2 in Nominal, FNPT Union x FNPT, 10 to 35 psi, 33 to 160 deg F, Media: Water, 9-1/4 in Inlet to Outlet Length, 11-1/4 in Top to Inlet Center, Cast Copper Silicon Alloy Body, Stainless Steel Trim, Reinforced EPDM Diaphragm, Domestic

Series LF25AUB-Z3 Lead Free Water Pressure Reducing Valves are used in commercial and residential applications to reduce incoming water pressure for protection of plumbing system components and to reduce water consumption. It consists of a Lead Free copper silicon alloy body construction, union inlet connection, integral stainless steel strainer and high temperature resistant reinforced diaphragm for hot water. The Series LF25AUB-Z3 is available with a variety of end connections including: threaded, solder, PEX, quick-connect and CPVC with both union and double union connections. Series LF25AUB-Z3 has an adjustable pressure range and is serviceable in-line.

WATTS® 0009450 LF25AUB-LP-Z3 Pressure Reducing Valve, 2 in Nominal, FNPT Union x FNPT End Style, 10 to 35 psi Pressure, Cast Copper Silicon Alloy Body, Domestic

CBPN:201193

MPN:0009450

UPC:098268332063

Price:
$1455.66 / EA

Prop 65:
Watts logo

DESCRIPTION

WATTS® Pressure Reducing Valve, Series: LF25AUB-LP-Z3, 2 in Nominal, FNPT Union x FNPT, 10 to 35 psi, 33 to 160 deg F, Media: Water, 9-1/4 in Inlet to Outlet Length, 11-1/4 in Top to Inlet Center, Cast Copper Silicon Alloy Body, Stainless Steel Trim, Reinforced EPDM Diaphragm, Domestic

Series LF25AUB-Z3 Lead Free Water Pressure Reducing Valves are used in commercial and residential applications to reduce incoming water pressure for protection of plumbing system components and to reduce water consumption. It consists of a Lead Free copper silicon alloy body construction, union inlet connection, integral stainless steel strainer and high temperature resistant reinforced diaphragm for hot water. The Series LF25AUB-Z3 is available with a variety of end connections including: threaded, solder, PEX, quick-connect and CPVC with both union and double union connections. Series LF25AUB-Z3 has an adjustable pressure range and is serviceable in-line.

Specifications

BrandWATTS®
Body MaterialCast Copper Silicon Alloy
End StyleFNPT Union x FNPT
Nominal Size2 in
SeriesLF25AUB-LP-Z3, LF25AUB-Z3
Temperature Rating33 to 160 deg F
Pressure Range10 to 35 psi
MediaWater
Softgoods MaterialReinforced EPDM Diaphragm
Trim MaterialStainless Steel
Inlet to Outlet Length9-1/4 in
Manufacturer NameWatts Water Technologies
Top to Inlet Center11-1/4 in
ApplicationCommercial and Residential
Warranty1 year Limited
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsANSI A112.26.2,ASSE Standard 1003,CSA Standard B356,IAPMO Listed,MIL-V-18146B Type I,NSF Approved,Southern Standard Plumbing Code ,

Item Features

  • Standard construction includes Z3 sealed spring cage and stainless steel corrosion resistant adjusting and cage screws for accessible outdoor or pit installations
  • Union inlet connection
  • Integral stainless steel strainer
  • Replaceable seat module
  • Serviceable in line
  • Bypass feature controls thermal expansion pressure
  • High temperature resistant reinforced diaphragm for hot water
  • 50 psi (345 kPa) standard pressure setting
  • The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
