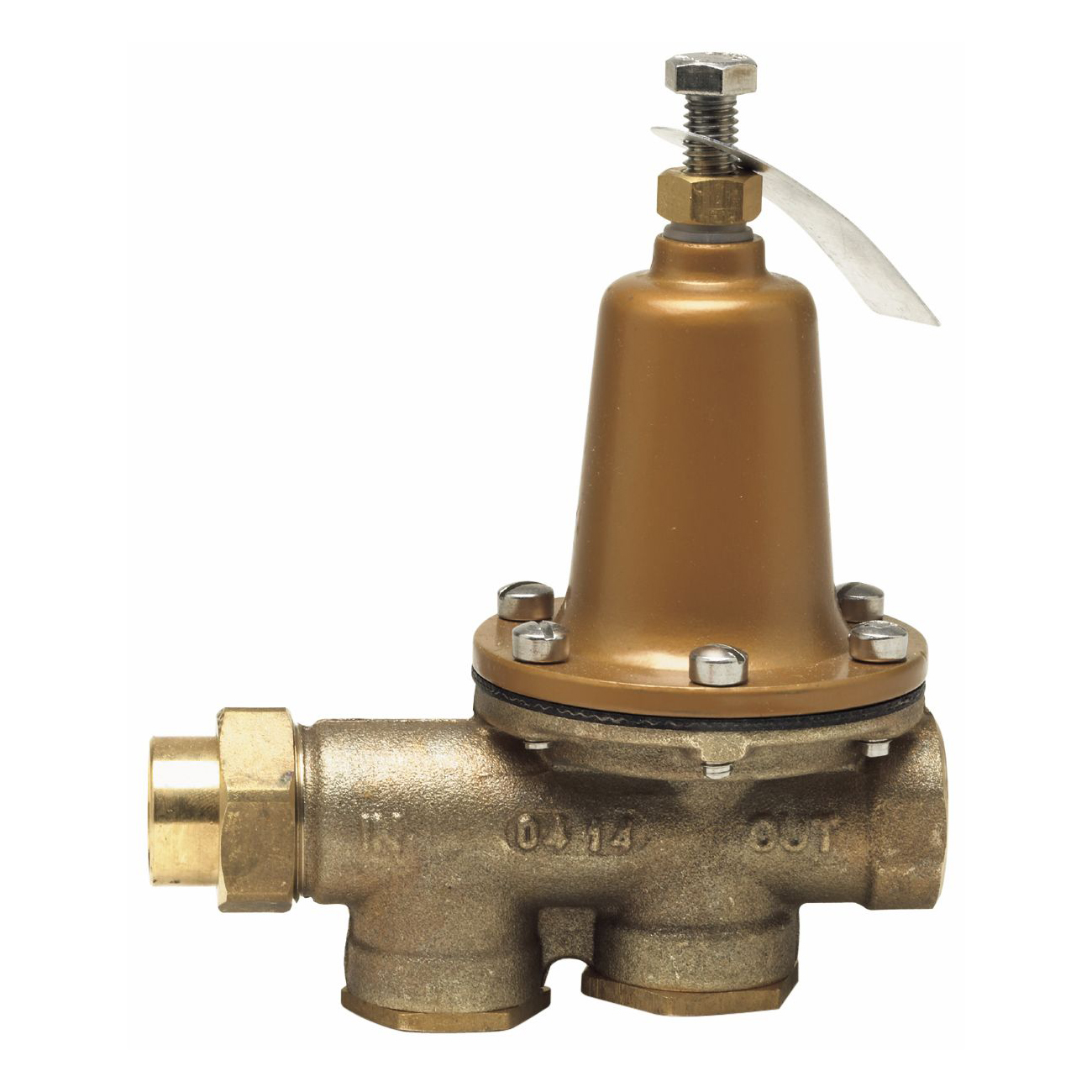

WATTS® 0009279 LF25AUB-HP-Z3 Standard Pressure Reducing Valve, 3/4 in Nominal, FNPT Union x FNPT End Style, 75 to 125 psi Pressure, Copper Silicon Alloy Body, Domestic
CBPN: 198269
UPC:098268330052
MPN:0009279
DESCRIPTION
WATTS® Pressure Reducing Valve, Standard, Series: LF25AUB-HP-Z3, 3/4 in Nominal, FNPT, 75 to 125 psi, 33 to 160 deg F, Media: Water, Copper Silicon Alloy Body, EPDM Disc Trim, Engineered Polymer Seat, 7 in H, Domestic
This 3/4 in lead free brass water pressure reducing valve for high pressure ranges is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module, NPT threaded female union inlet by NPT female outlet and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 160 degrees F (0.5 to 71 degrees C). The high pressure range is 75 to 125 PSI (518 to 863 kPa) with the standard setting at 90 PSI (621 kPa).
WATTS® 0009279 LF25AUB-HP-Z3 Standard Pressure Reducing Valve, 3/4 in Nominal, FNPT Union x FNPT End Style, 75 to 125 psi Pressure, Copper Silicon Alloy Body, Domestic
CBPN: 198269
MPN:0009279
UPC:098268330052
DESCRIPTION
WATTS® Pressure Reducing Valve, Standard, Series: LF25AUB-HP-Z3, 3/4 in Nominal, FNPT, 75 to 125 psi, 33 to 160 deg F, Media: Water, Copper Silicon Alloy Body, EPDM Disc Trim, Engineered Polymer Seat, 7 in H, Domestic
This 3/4 in lead free brass water pressure reducing valve for high pressure ranges is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module, NPT threaded female union inlet by NPT female outlet and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 160 degrees F (0.5 to 71 degrees C). The high pressure range is 75 to 125 PSI (518 to 863 kPa) with the standard setting at 90 PSI (621 kPa).
Specifications
Item Features
- Integral stainless steel strainer removable for cleaning
- Corrosion resistant coating
- Standard construction includes Z3 sealed spring cage and stainless steel corrosion resistant adjusting and cage screws for accessible outdoor or pit installations
- Stainless steel integral strainer
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- 50 psi standard reduced pressure
- Replaceable seat module
- Serviceable in line
- Bypass feature controls thermal expansion pressure
- High temperature resistant reinforced diaphragm for hot water
- The bypass feature will not prevent the pressure relief valve from opening on the hot water supply system with pressure above 150 psi
- A water saving test program concluded that reducing the supply pressure from 80 to 50 psi resulted in a water savings of 30%
