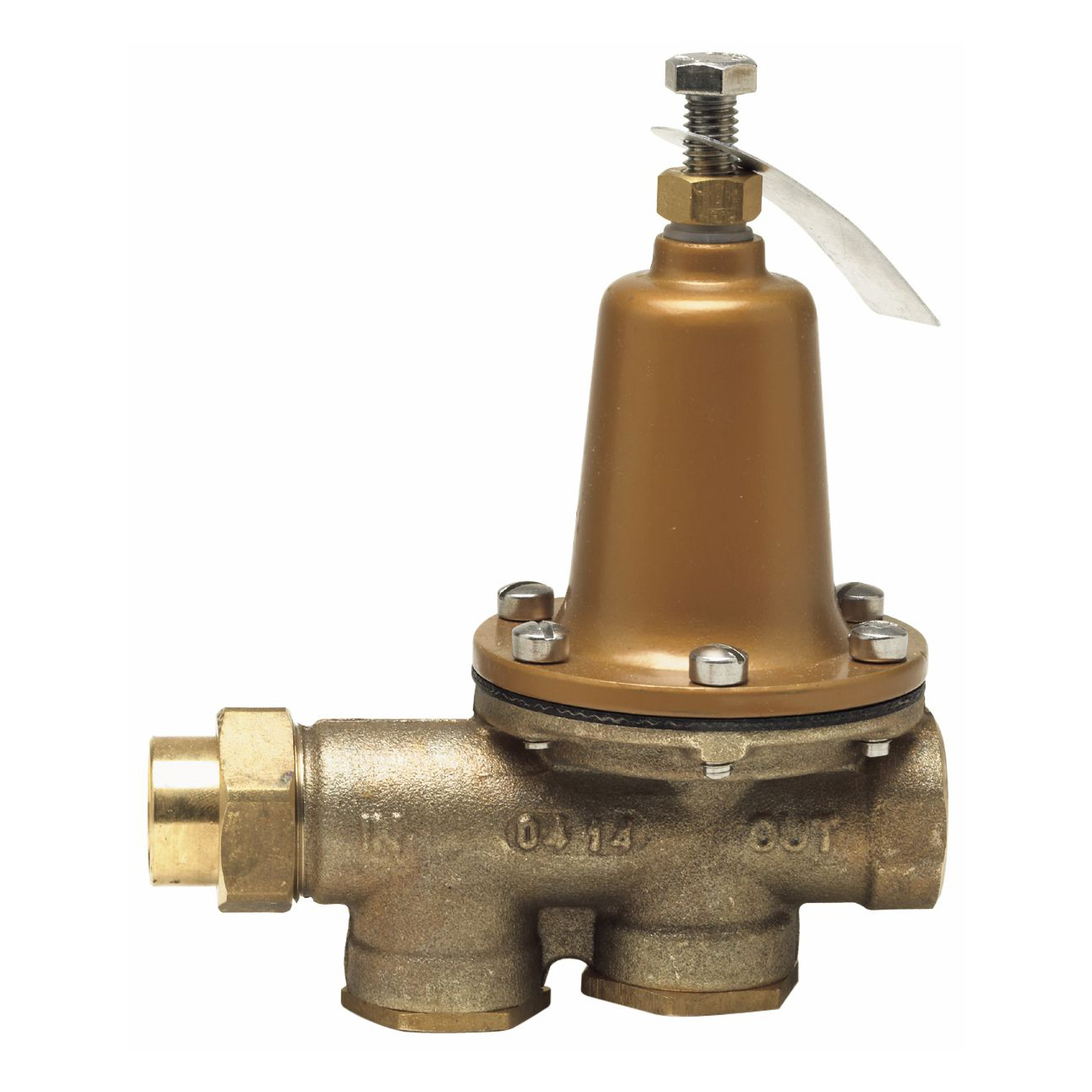

WATTS® 0009257 LF25AUB-Z3 Pressure Reducing Valve, 3/4 in Nominal, FNPT Union x FNPT End Style, 25 to 75 psi Pressure, Cast Copper Silicon Alloy Body, Import
CBPN:183713
UPC:098268329704
MPN:0009257
Price:
$212.11 / EA
Prop 65:
DESCRIPTION
WATTS® Pressure Reducing Valve, Series: LF25AUB-Z3, 3/4 in Nominal, FNPT Union x FNPT, 25 to 75 psi, 33 to 160 deg F, Media: Water, 5-5/16 in Inlet to Outlet Length, 7 in Top to Inlet Center, Cast Copper Silicon Alloy Body, Reinforced EPDM Diaphragm/Polymer Seat, Import
Series LF25AUB-Z3 Lead Free Water Pressure Reducing Valves are used in commercial and residential applications to reduce incoming water pressure for protection of plumbing system components and to reduce water consumption. It consists of a Lead Free copper silicon alloy body construction, union inlet connection, integral stainless steel strainer and high temperature resistant reinforced diaphragm for hot water. The Series LF25AUB-Z3 is available with a variety of end connections including: threaded, solder, PEX, quick-connect and CPVC with both union and double union connections. Series LF25AUB-Z3 has an adjustable pressure range and is serviceable in-line.
WATTS® 0009257 LF25AUB-Z3 Pressure Reducing Valve, 3/4 in Nominal, FNPT Union x FNPT End Style, 25 to 75 psi Pressure, Cast Copper Silicon Alloy Body, Import
CBPN:183713
MPN:0009257
UPC:098268329704
Price:
$212.11 / EA
Prop 65:
DESCRIPTION
WATTS® Pressure Reducing Valve, Series: LF25AUB-Z3, 3/4 in Nominal, FNPT Union x FNPT, 25 to 75 psi, 33 to 160 deg F, Media: Water, 5-5/16 in Inlet to Outlet Length, 7 in Top to Inlet Center, Cast Copper Silicon Alloy Body, Reinforced EPDM Diaphragm/Polymer Seat, Import
Series LF25AUB-Z3 Lead Free Water Pressure Reducing Valves are used in commercial and residential applications to reduce incoming water pressure for protection of plumbing system components and to reduce water consumption. It consists of a Lead Free copper silicon alloy body construction, union inlet connection, integral stainless steel strainer and high temperature resistant reinforced diaphragm for hot water. The Series LF25AUB-Z3 is available with a variety of end connections including: threaded, solder, PEX, quick-connect and CPVC with both union and double union connections. Series LF25AUB-Z3 has an adjustable pressure range and is serviceable in-line.
Specifications
Brand: WATTS®
Body Material: Cast Copper Silicon Alloy
End Style: FNPT Union x FNPT
Nominal Size: 3/4 in
Series: LF25AUB-Z3
Temperature Rating: 33 to 160 deg F
Domestic/Import: Import
Pressure Range: 25 to 75 psi
Media: Water
Softgoods Material: Reinforced EPDM Diaphragm/Polymer Seat
Inlet to Outlet Length: 5-5/16 in
Top to Inlet Center: 7 in
Weight: 4 lbs
Standards Approvals: ANSI A112.26.2,ASSE Standard 1003,CSA Standard B356,IAPMO Listed,MIL-V-18146B Type I,NSF Approved,Southern Standard Plumbing Code ,
Item Features
- Standard construction includes Z3 sealed spring cage and stainless steel corrosion resistant adjusting and cage screws for accessible outdoor or pit installations
- Union inlet connection
- Integral stainless steel strainer
- Replaceable seat module
- Serviceable in line
- Bypass feature controls thermal expansion pressure
- High temperature resistant reinforced diaphragm for hot water
- 50 psi (345 kPa) standard pressure setting
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
