WATTS® 0009162

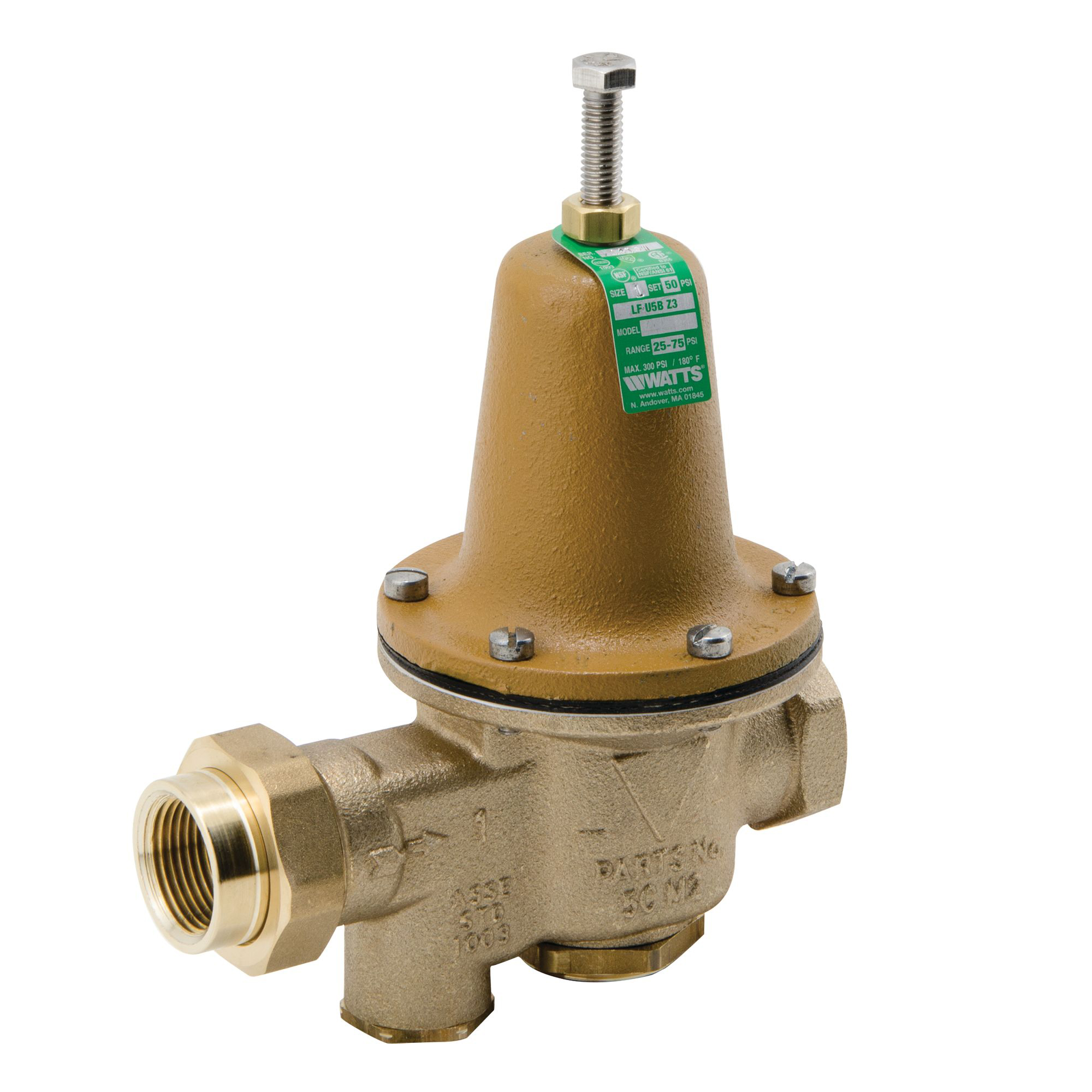

WATTS® 0009162 LFU5B-LP-Z3 High Performance Pressure Reducing Valve, 1 in Nominal, FNPT End Style, 25 to 75 psi Pressure, Cast Copper Silicon Alloy Body, Domestic

CBPN:189879

UPC:098268328073

MPN:0009162

Price:
$1594.75 / EA
Prop 65:

DESCRIPTION

WATTS® Pressure Reducing Valve, High Performance, Series: LFU5B-LP-Z3, 1 in Nominal, FNPT, 25 to 75 psi, 33 to 160 deg F, Media: Water, Cast Copper Silicon Alloy Body, EPDM Valve Disc/Reinforced EPDM Diaphragm/Stainless Steel Seat, 6-3/4 in L x 4 in W x 7-3/8 in H, Domestic

Series LFU5B-Z3 Lead Free* High Performance Water Pressure Reducing Valves are used in commercial, industrial, and residential applications to reduce incoming water pressure for protection of plumbing system components and to reduce water consumption. It consists of a Lead Free* cast copper silicon alloy body construction, integral stainless steel strainer replaceable seat module and optional thermal expansion bypass. Available with threaded, solder or quick-connect end connections. Maximum Working Pressure: 300psi (21 bar), Adjustable Reduced Pressure Range: 25 to 75psi (172 to 517 kPa), Standard Pressure Setting: 50psi (345 kPa).

WATTS® 0009162 LFU5B-LP-Z3 High Performance Pressure Reducing Valve, 1 in Nominal, FNPT End Style, 25 to 75 psi Pressure, Cast Copper Silicon Alloy Body, Domestic

CBPN:189879

MPN:0009162

UPC:098268328073

Price:
$1594.75 / EA

Prop 65:
Watts logo

DESCRIPTION

WATTS® Pressure Reducing Valve, High Performance, Series: LFU5B-LP-Z3, 1 in Nominal, FNPT, 25 to 75 psi, 33 to 160 deg F, Media: Water, Cast Copper Silicon Alloy Body, EPDM Valve Disc/Reinforced EPDM Diaphragm/Stainless Steel Seat, 6-3/4 in L x 4 in W x 7-3/8 in H, Domestic

Series LFU5B-Z3 Lead Free* High Performance Water Pressure Reducing Valves are used in commercial, industrial, and residential applications to reduce incoming water pressure for protection of plumbing system components and to reduce water consumption. It consists of a Lead Free* cast copper silicon alloy body construction, integral stainless steel strainer replaceable seat module and optional thermal expansion bypass. Available with threaded, solder or quick-connect end connections. Maximum Working Pressure: 300psi (21 bar), Adjustable Reduced Pressure Range: 25 to 75psi (172 to 517 kPa), Standard Pressure Setting: 50psi (345 kPa).

Specifications

BrandWATTS®
Body MaterialCast Copper Silicon Alloy
End StyleFNPT
Nominal Size1 in
SeriesLFU5B, LFU5B-LP-Z3
Temperature Rating33 to 160 deg F
TypeHigh Performance
Pressure Range25 to 75 psi
Dimensions6-3/4 in L x 4 in W x 7-3/8 in H
MediaWater
Softgoods MaterialEPDM Valve Disc/Reinforced EPDM Diaphragm/Stainless Steel Seat
Manufacturer NameWatts Water Technologies
IncludesZ3 Sealed Spring Cage and Stainless Steel Corrosion-Resistant Adjusting Cage Screws
ApplicationCommercial and Residential
WarrantyLimited
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsANSI A112.26.2,ASSE 1003,CSA B356,IAPMO Listed,Southern Standard Plumbing Code ,

Item Features

  • Standard construction includes Z3 sealed spring cage and stainless steel corrosion resistant adjusting and cage screws for accessible outdoor or pit installations
  • Integral stainless steel strainer
  • Replaceable seat module
  • Serviceable in line
  • Bypass feature controls thermal expansion pressure
  • High temperature resistant reinforced diaphragm for hot water
  • The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
  • The bypass feature will not prevent the pressure relief valve from opening on the hot water supply system with pressure above 150 psi
  • FNPT with built-in thermal expansion bypass
  • 10 to 35 psi low pressure range
  • For low pressure with bypass feature
  • The bypass feature will not prevent the pressure relief valve from opening on the hot water supply system with pressure above 150psi
