WATTS® 0009154

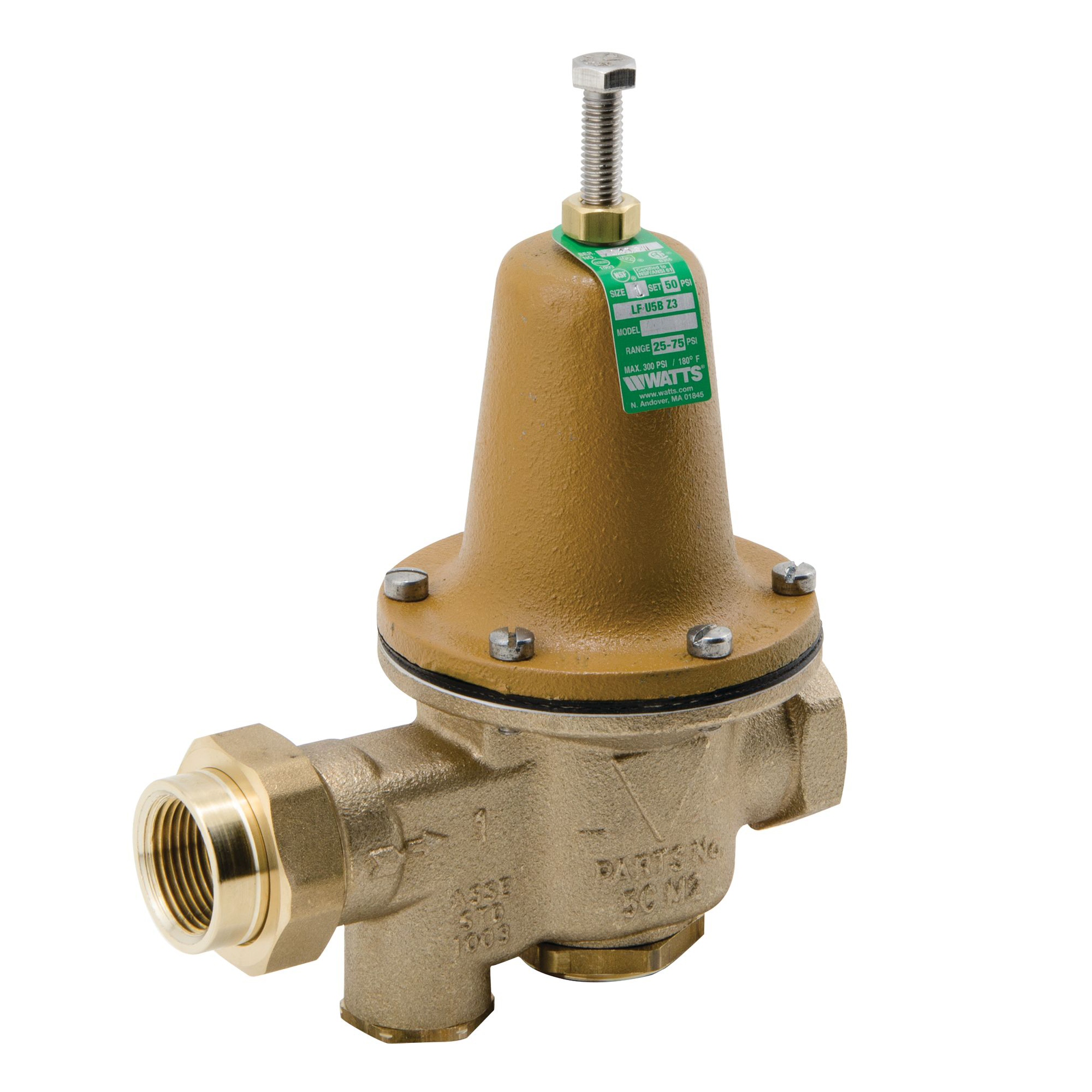

WATTS® 0009154 LFU5B-Z3 High Performance Pressure Reducing Valve, 1 in Nominal, FNPT End Style, 25 to 75 psi Pressure, Cast Copper Silicon Alloy Body, Domestic

CBPN:172541

UPC:098268327991

MPN:0009154

Price:
$1456.08 / EA
Prop 65:

DESCRIPTION

WATTS® Pressure Reducing Valve, High Performance, Series: LFU5B-Z3, 1 in Nominal, FNPT, 25 to 75 psi, 33 to 160 deg F, Media: Water, 6-5/8 in Inlet to Outlet Length, 7-3/8 in Top to Inlet Center, Cast Copper Silicon Alloy Body, Reinforced EPDM Diaphragm, Domestic

Series LFU5B-Z3 Lead Free High Performance Water Pressure Reducing Valves are used in commercial, industrial, and residential applications to reduce incoming water pressure for protection of plumbing system components and to reduce water consumption. It consists of a Lead Free cast copper silicon alloy body construction, integral stainless steel strainer replaceable seat module and optional thermal expansion bypass. Available with threaded, solder or quick-connect end connections.

WATTS® 0009154 LFU5B-Z3 High Performance Pressure Reducing Valve, 1 in Nominal, FNPT End Style, 25 to 75 psi Pressure, Cast Copper Silicon Alloy Body, Domestic

CBPN:172541

MPN:0009154

UPC:098268327991

Price:
$1456.08 / EA

Prop 65:
Watts logo

DESCRIPTION

WATTS® Pressure Reducing Valve, High Performance, Series: LFU5B-Z3, 1 in Nominal, FNPT, 25 to 75 psi, 33 to 160 deg F, Media: Water, 6-5/8 in Inlet to Outlet Length, 7-3/8 in Top to Inlet Center, Cast Copper Silicon Alloy Body, Reinforced EPDM Diaphragm, Domestic

Series LFU5B-Z3 Lead Free High Performance Water Pressure Reducing Valves are used in commercial, industrial, and residential applications to reduce incoming water pressure for protection of plumbing system components and to reduce water consumption. It consists of a Lead Free cast copper silicon alloy body construction, integral stainless steel strainer replaceable seat module and optional thermal expansion bypass. Available with threaded, solder or quick-connect end connections.

Specifications

BrandWATTS®
Weight6lbs
Nominal Size1 in
End StyleFNPT
Pressure Range25 to 75 psi
Body MaterialCast Copper Silicon Alloy
Inlet to Outlet Length6-5/8 in
Manufacturer NameWatts Water Technologies
MediaWater
SeriesLFU5B, LFU5B-Z3
Softgoods MaterialReinforced EPDM Diaphragm
Temperature Rating33 to 160 deg F
Top to Inlet Center7-3/8 in
TypeHigh Performance
ApplicationCommercial and Residential
Warranty1 year Limited
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsANSI A112.26.2 | ASSE Standard 1003 | CSA Standard B356 | IAPMO Listed | NSF/ANSI 61-G Certified | Southern Standard Plumbing Code | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.

Item Features

  • Standard construction includes Z3 sealed spring cage and stainless steel corrosion resistant adjusting and cage screws for accessible outdoor or pit installations
  • Integral stainless steel strainer
  • Replaceable seat module
  • Serviceable in line
  • Bypass feature controls thermal expansion pressure
  • High temperature resistant reinforced diaphragm for hot water
  • 25 to 75 psi adjustable reduced pressure range
  • 50 psi (345 kPa) standard pressure setting
  • The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
