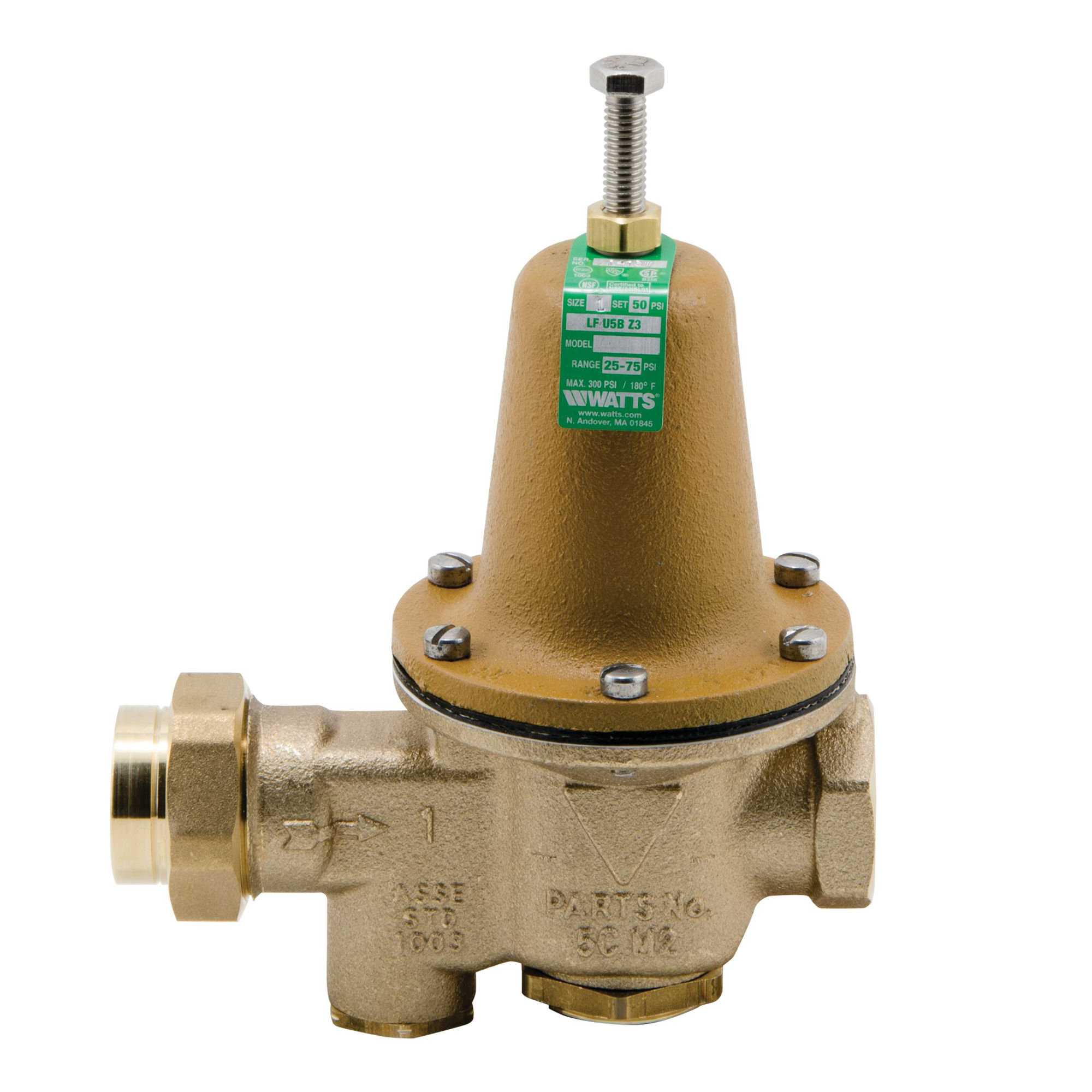

WATTS® 0009100 LFU5B-Z3 High Performance Pressure Reducing Valve, 1/2 in Nominal, FNPT End Style, 25 to 75 psi Pressure, Cast Copper Silicon Alloy Body, Domestic
CBPN:173094
UPC:098268327335
MPN:0009100
Price:
$810.31 / EA
Prop 65:
DESCRIPTION
WATTS® Pressure Reducing Valve, High Performance, Series: LFU5B-Z3, 1/2 in Nominal, FNPT, 25 to 75 psi, 33 to 160 deg F, Media: Water, 5-5/8 in Inlet to Outlet Length, 5-7/8 in Top to Inlet Center, Cast Copper Silicon Alloy Body, Reinforced EPDM Diaphragm, Domestic
Series LFU5B-Z3 Lead Free High Performance Water Pressure Reducing Valves are used in commercial, industrial, and residential applications to reduce incoming water pressure for protection of plumbing system components and to reduce water consumption. It consists of a Lead Free cast copper silicon alloy body construction, integral stainless steel strainer replaceable seat module and optional thermal expansion bypass. Available with threaded, solder or quick-connect end connections.
WATTS® 0009100 LFU5B-Z3 High Performance Pressure Reducing Valve, 1/2 in Nominal, FNPT End Style, 25 to 75 psi Pressure, Cast Copper Silicon Alloy Body, Domestic
CBPN:173094
MPN:0009100
UPC:098268327335
Price:
$810.31 / EA
Prop 65:
DESCRIPTION
WATTS® Pressure Reducing Valve, High Performance, Series: LFU5B-Z3, 1/2 in Nominal, FNPT, 25 to 75 psi, 33 to 160 deg F, Media: Water, 5-5/8 in Inlet to Outlet Length, 5-7/8 in Top to Inlet Center, Cast Copper Silicon Alloy Body, Reinforced EPDM Diaphragm, Domestic
Series LFU5B-Z3 Lead Free High Performance Water Pressure Reducing Valves are used in commercial, industrial, and residential applications to reduce incoming water pressure for protection of plumbing system components and to reduce water consumption. It consists of a Lead Free cast copper silicon alloy body construction, integral stainless steel strainer replaceable seat module and optional thermal expansion bypass. Available with threaded, solder or quick-connect end connections.
Specifications
Brand: WATTS®
Weight: 4lbs
Body Material: Cast Copper Silicon Alloy
End Style: FNPT
Nominal Size: 1/2 in
Series: LFU5B, LFU5B-Z3
Temperature Rating: 33 to 160 deg F
Type: High Performance
Pressure Range: 25 to 75 psi
Media: Water
Softgoods Material: Reinforced EPDM Diaphragm
Inlet to Outlet Length: 5-5/8 in
Manufacturer Name: Watts Water Technologies
Top to Inlet Center: 5-7/8 in
Application: Commercial and Residential
Warranty: 1 year Limited
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ANSI A112.26.2 | ASSE Standard 1003 | CSA Standard B356 | IAPMO Listed | NSF/ANSI 61-G Certified | Southern Standard Plumbing Code | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
Item Features
- Standard construction includes Z3 sealed spring cage and stainless steel corrosion resistant adjusting and cage screws for accessible outdoor or pit installations
- Integral stainless steel strainer
- Replaceable seat module
- Serviceable in line
- Bypass feature controls thermal expansion pressure
- High temperature resistant reinforced diaphragm for hot water
- 25 to 75 psi adjustable reduced pressure range
- 50 psi (345 kPa) standard pressure setting
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
