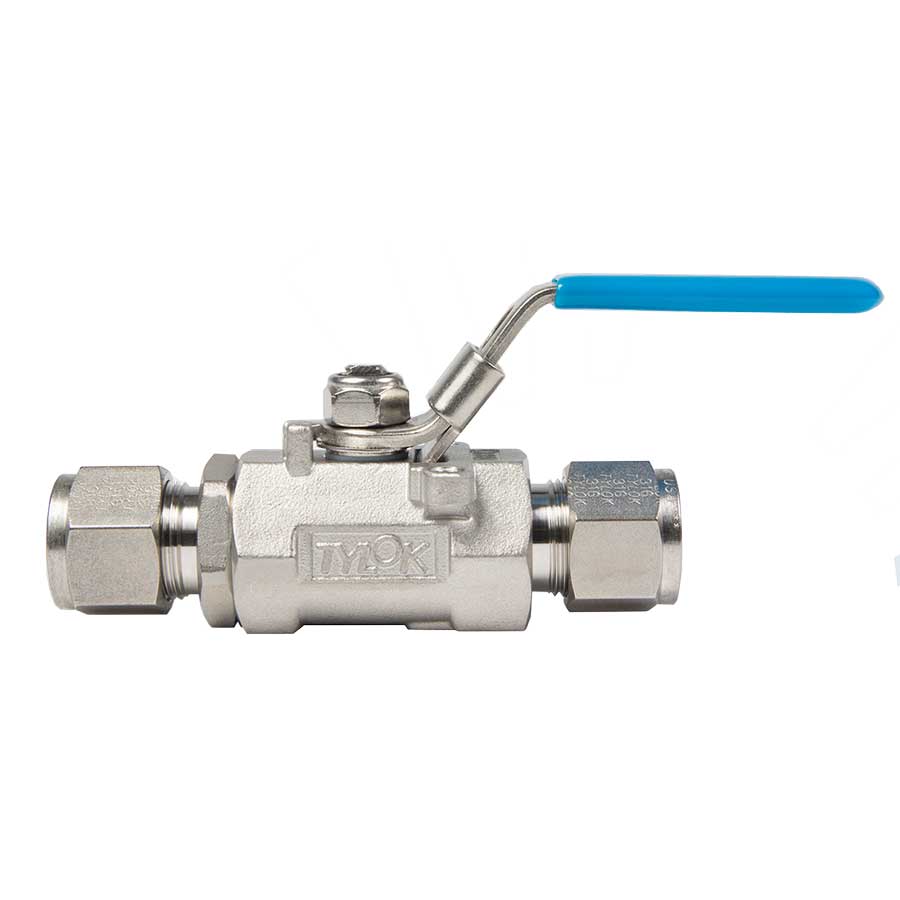

Tylok® SS-GP6-D6D6 GP Series Ball Valve, 3/8 in Nominal, Tube End Style, Stainless Steel Body, PTFE Softgoods
CBPN:173977
UPC:811731025916
MPN:SS-GP6-D6D6
Price:
$92.68 / EA
DESCRIPTION
Tylok® Ball Valve, Series: GP Series, 3/8 in Nominal, Tube, 2000 psi, 400 deg F, 0.28 in Orifice, Locking Handle Actuator, 3.15 in Inlet to Outlet Length, 1.46 in Top to Inlet Center, Stainless Steel Body, 316 Stainless Steel Stem/PTFE Trim, PTFE
GP series ball valve is a true tube valve solution for tubing systems. It is available from 1/4 to 1 in with integral tube end connections for tube-to-tube, and from 1/4 to 1/2 in with integral female pipe threads for female-to-female pipe applications. Tylok® general purpose ball valve series is a moderate pressure ball valve for general service. They were designed for tight shutoff, long service life, and low operating torque.
Tylok® SS-GP6-D6D6 GP Series Ball Valve, 3/8 in Nominal, Tube End Style, Stainless Steel Body, PTFE Softgoods
CBPN:173977
MPN:SS-GP6-D6D6
UPC:811731025916
Price:
$92.68 / EA
DESCRIPTION
Tylok® Ball Valve, Series: GP Series, 3/8 in Nominal, Tube, 2000 psi, 400 deg F, 0.28 in Orifice, Locking Handle Actuator, 3.15 in Inlet to Outlet Length, 1.46 in Top to Inlet Center, Stainless Steel Body, 316 Stainless Steel Stem/PTFE Trim, PTFE
GP series ball valve is a true tube valve solution for tubing systems. It is available from 1/4 to 1 in with integral tube end connections for tube-to-tube, and from 1/4 to 1/2 in with integral female pipe threads for female-to-female pipe applications. Tylok® general purpose ball valve series is a moderate pressure ball valve for general service. They were designed for tight shutoff, long service life, and low operating torque.
Specifications
Brand: Tylok®
Weight: 0.44lbs
Actuator Type: Locking Handle
Body Material: Stainless Steel
End Style: FNPT
Nominal Size: 3/8 in
Series: GP Series
Temperature Rating: 400 deg F
Pressure Rating: 2000 psi
Orifice Size: 0.28 in
Softgoods Material: PTFE
Trim Material: 316 Stainless Steel Stem/PTFE
Inlet to Outlet Length: 3.15 in
Manufacturer Name: Tylok International
Top to Inlet Center: 1.46 in
Warranty: 1 year Limited
Country of Origin: US
Item Features
- Built-in actuator mounting holes for ease of automation
- Bi-directional flow in fully open or fully closed position only
- Compact in size but with high flow capacity
- Locking handle in both on and off position
- Blow-out proof stem design
- CBC-Lok® tube fittings
- PTFE gasket
- 316 stainless steel stem/PTFE seat
