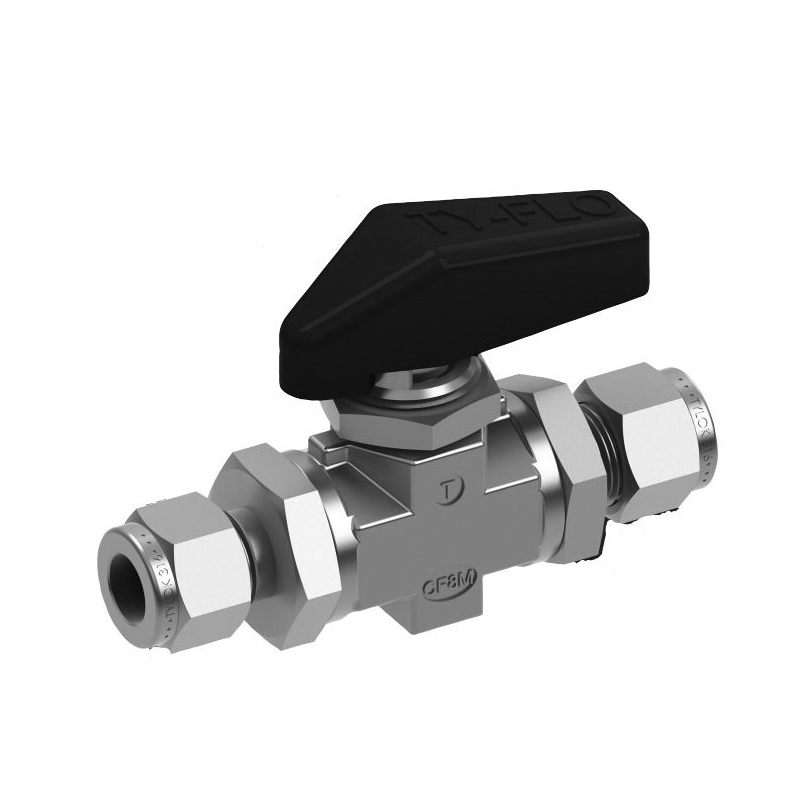

Tylok® Ty-Flo® CBC-Lok® SS-8-DTT-8-8-K HP Series High Pressure Ball Valve, 1/2 in Nominal, Tube End Style, Stainless Steel Body, FKM/PTFE Softgoods
CBPN:125173
UPC:811731025800
MPN:SS-8-DTT-8-8-K
Price:
$258.06 / EA
DESCRIPTION
Tylok® Ty-Flo® CBC-Lok® Ball Valve, High Pressure, Series: HP Series, 1/2 in Nominal, Tube End Style, 5000 psi Pressure, -15 to 300 deg F, 3/8 in Orifice, 316 Stainless Steel Ball, 2 in Top to Inlet Center, Stainless Steel Body, 316 Stainless Steel Stem and PCTFE Seat Trim, FKM/PTFE Softgoods
Ty-Flo® HP Series Ball Valves are ordered as listed in this catalog by inserting the material code before the part number. Ty-Flo® HP Series Ball Valves can be identified through the part number as to material, valve series, style, valve configurations, port size, and seat material. The part number describes a complete ball valve assembly.
Tylok® Ty-Flo® CBC-Lok® SS-8-DTT-8-8-K HP Series High Pressure Ball Valve, 1/2 in Nominal, Tube End Style, Stainless Steel Body, FKM/PTFE Softgoods
CBPN:125173
MPN:SS-8-DTT-8-8-K
UPC:811731025800
Price:
$258.06 / EA
DESCRIPTION
Tylok® Ty-Flo® CBC-Lok® Ball Valve, High Pressure, Series: HP Series, 1/2 in Nominal, Tube End Style, 5000 psi Pressure, -15 to 300 deg F, 3/8 in Orifice, 316 Stainless Steel Ball, 2 in Top to Inlet Center, Stainless Steel Body, 316 Stainless Steel Stem and PCTFE Seat Trim, FKM/PTFE Softgoods
Ty-Flo® HP Series Ball Valves are ordered as listed in this catalog by inserting the material code before the part number. Ty-Flo® HP Series Ball Valves can be identified through the part number as to material, valve series, style, valve configurations, port size, and seat material. The part number describes a complete ball valve assembly.
Specifications
Brand: Tylok®
Weight: 0.95lbs
Body Material: Stainless Steel
End Style: CBC-Lok® Tube
Nominal Size: 1/2 in
Series: HP Series
Temperature Rating: -15 to 300 deg F
Type: High Pressure
Pressure Rating: 5000 psi
Orifice Size: 3/8 in
Softgoods Material: FKM/PTFE
Trim Material: 316 Stainless Steel Stem and PCTFE Seat
Ball Material: 316 Stainless Steel
Manufacturer Name: Tylok International
Top to Inlet Center: 2 in
Standards and Approvals: ABS Type Approved | WBENC Certified
Item Features
- Reliable, simple operation for on-off service
- Fast acting, one quarter-turn fully opens or closes the valve
- Maximum performance, straight through flow for minimum turbulence and pressure drop
- Positive leak tight shut off, even with fluctuating pressures
- Panel mounting capabilities standard
- Bi-directional flow
- Handle direction indicates position of valve and flow direction
- Micro finished ball provides positive seal
- Free floating ball design compensates for seat wear
- 0.88 in panel hole
- FKM stem O-ring and PTFE stem back-up ring
