Tylok® SS-8-DELU-8

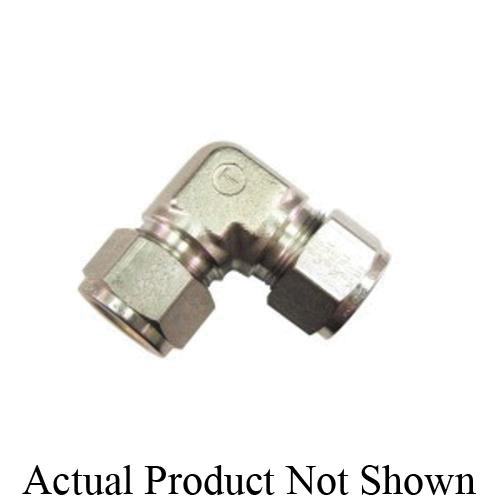

Tylok® CBC-Lok® SS-8-DELU-8 DELU 90 deg Double Ferrule Union Elbow, 1/2 in, Tube, 316 Stainless Steel, Domestic

CBPN:88709

UPC:811731020300

MPN:SS-8-DELU-8

Price:
$37.50 / EA

DESCRIPTION

Tylok® CBC-Lok® Union Elbow, Double Ferrule, Series: DELU, Fitting/Connector Type: 90 deg Elbow, 1/2 in Nominal Size, Tube, 316 Stainless Steel, Domestic

CBC-Lok® tube fittings are fully interchangeable with Swagelok® and Parker A-Lok®. Although it is always recommended to use all CBC-Lok® components, intermixing CBC-Lok® bodies and/or component parts with that of other manufacturers will not adversely affect sealing ability. CBC-Lok® Tube Fittings are made to strict quality control standards. CBC-Lok® Tube Fittings are proudly made in the U.S.A.

Tylok® CBC-Lok® SS-8-DELU-8 DELU 90 deg Double Ferrule Union Elbow, 1/2 in, Tube, 316 Stainless Steel, Domestic

CBPN:88709

MPN:SS-8-DELU-8

UPC:811731020300

Price:
$37.50 / EA

Tylok logo

DESCRIPTION

Tylok® CBC-Lok® Union Elbow, Double Ferrule, Series: DELU, Fitting/Connector Type: 90 deg Elbow, 1/2 in Nominal Size, Tube, 316 Stainless Steel, Domestic

CBC-Lok® tube fittings are fully interchangeable with Swagelok® and Parker A-Lok®. Although it is always recommended to use all CBC-Lok® components, intermixing CBC-Lok® bodies and/or component parts with that of other manufacturers will not adversely affect sealing ability. CBC-Lok® Tube Fittings are made to strict quality control standards. CBC-Lok® Tube Fittings are proudly made in the U.S.A.

Specifications

BrandTylok®
Material316 Stainless Steel
SeriesDELU
TypeDouble Ferrule
Domestic/ImportDomestic
End StyleTube
Fitting/Connector Type90 deg Elbow
Nominal Size1/2 in
Weight0.23 lbs
Standards ApprovalsASTM A276/ASME-SA-479/Type 316-SS Bar Stock,ASME-SA-182/Type 316-SS Forging,ASTM A213/ASTM A269 Tubing,ABS,ASTM F1387,Canadian Registration,ISO 9001:2008

Item Features

  • Double ferrule swaging action
  • Total component interchangeability
  • Heat code traceable
  • 7/8 in nut
  • 1/2-14 NPT pipe thread
  • 90 Rb hardness
  • Interchanges with 810-9 and 8EE8
