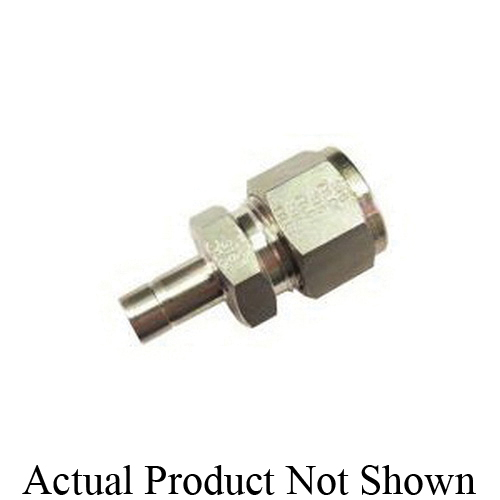

Tylok® CBC-Lok® SS-6-DRATT DRATT Double ferrule Straight Reducing Adapter, 3/8 x 5/8 in, Tube, Stainless Steel, Domestic
CBPN: 182157
UPC:815761023607
MPN:SS-6-DRATT
DESCRIPTION
Tylok® CBC-Lok® Straight Reducing Adapter, Double ferrule, Series: DRATT, Fitting/Connector Type: Adapter, 3/8 x 5/8 in Nominal, Tube, 11/16 in Body Hex, 1.981 in Length, -20 to 1000 deg F, Stainless Steel, Domestic
CBC-Lok® tube fittings are fully interchangeable with Swagelok® and Parker A-Lok®. Although itis always recommended to use all CBC-Lok® components, intermixing CBC-Lok® bodies and/or component parts with that of other manufacturers will not adversely affect sealing ability. CBC-Lok® Tube Fittings are made to strict quality control standards. CBC-Lok® Tube Fittings are proudly made in the U.S.A.
Tylok® CBC-Lok® SS-6-DRATT DRATT Double ferrule Straight Reducing Adapter, 3/8 x 5/8 in, Tube, Stainless Steel, Domestic
CBPN: 182157
MPN:SS-6-DRATT
UPC:815761023607
DESCRIPTION
Tylok® CBC-Lok® Straight Reducing Adapter, Double ferrule, Series: DRATT, Fitting/Connector Type: Adapter, 3/8 x 5/8 in Nominal, Tube, 11/16 in Body Hex, 1.981 in Length, -20 to 1000 deg F, Stainless Steel, Domestic
CBC-Lok® tube fittings are fully interchangeable with Swagelok® and Parker A-Lok®. Although itis always recommended to use all CBC-Lok® components, intermixing CBC-Lok® bodies and/or component parts with that of other manufacturers will not adversely affect sealing ability. CBC-Lok® Tube Fittings are made to strict quality control standards. CBC-Lok® Tube Fittings are proudly made in the U.S.A.
Specifications
Item Features
- Total component interchangeability
- Heat code traceable
- 11/16 in hex nut
- 90 Rb hardness
- 0.281 in thru hole
- Double ferrule swaging action system
