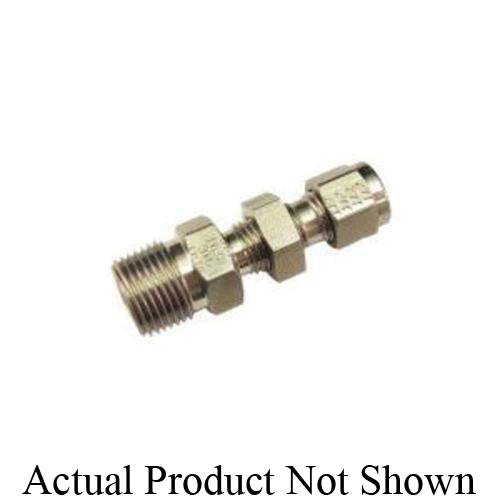

Tylok® CBC-Lok® SS-6-DBHMP-6 DBHMP Double Ferrule Bulkhead Tube Connector, 3/8 in, Tube x MNPT, 316 Stainless Steel, Domestic
CBPN: 148955
UPC:811731025152
MPN:SS-6-DBHMP-6
DESCRIPTION
Tylok® CBC-Lok® Bulkhead Tube Connector, Double Ferrule, Series: DBHMP, Fitting/Connector Type: Connector, 3/8 in Nominal Size, Tube x MNPT, 3/4 in Hex, 2.26 in Length, 316 Stainless Steel, Domestic
CBC-Lok® tube fittings are fully interchangeable with Swagelok® and Parker A-Lok®. Although it is always recommended to use all CBC-Lok® components, intermixing CBC-Lok® bodies and/or component parts with that of other manufacturers will not adversely affect sealing ability. CBC-Lok® Tube Fittings are made to strict quality control standards. CBC-Lok® Tube Fittings are proudly made in the U.S.A.
Tylok® CBC-Lok® SS-6-DBHMP-6 DBHMP Double Ferrule Bulkhead Tube Connector, 3/8 in, Tube x MNPT, 316 Stainless Steel, Domestic
CBPN: 148955
MPN:SS-6-DBHMP-6
UPC:811731025152
DESCRIPTION
Tylok® CBC-Lok® Bulkhead Tube Connector, Double Ferrule, Series: DBHMP, Fitting/Connector Type: Connector, 3/8 in Nominal Size, Tube x MNPT, 3/4 in Hex, 2.26 in Length, 316 Stainless Steel, Domestic
CBC-Lok® tube fittings are fully interchangeable with Swagelok® and Parker A-Lok®. Although it is always recommended to use all CBC-Lok® components, intermixing CBC-Lok® bodies and/or component parts with that of other manufacturers will not adversely affect sealing ability. CBC-Lok® Tube Fittings are made to strict quality control standards. CBC-Lok® Tube Fittings are proudly made in the U.S.A.
Specifications
Item Features
- Double ferrule swaging action
- Total component interchangeability
- Heat code traceable
- ASTM material construction
- 3/8-18 NPT pipe thread
- 90 Rb hardness
- Interchanges with 600-11-6 and 6MBC6N
