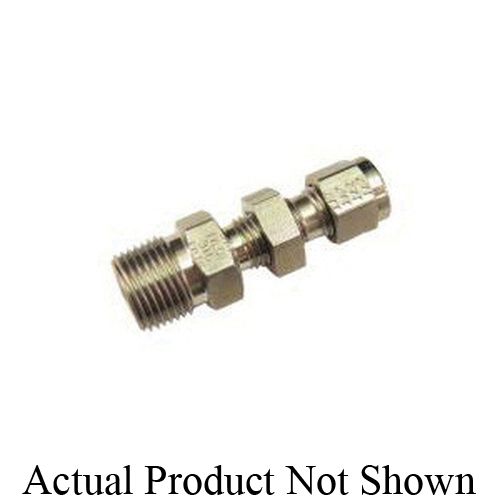

Tylok® CBC-Lok® SS-4-DBHMP-2 DBHMP Double Ferrule Straight Bulkhead Male Pipe Connector, 1/4 x 1/8 in, Tube x MNPT, Stainless Steel, Domestic
CBPN: 148952
UPC:815761020651
MPN:SS-4-DBHMP-2
DESCRIPTION
Tylok® CBC-Lok® Straight Bulkhead Male Pipe Connector, Straight Bulkhead, Series: DBHMP, Fitting/Connector Type: Connector, 1/4 x 1/8 in Nominal, Tube x MNPT, 5/8 in Body Hex, 0.605 in Length, -20 to 1000 deg F, Stainless Steel, Domestic
CBC-Lok® tube fittings are fully interchangeable with Swagelok® and Parker A-Lok®. Although itis always recommended to use all CBC-Lok® components, intermixing CBC-Lok® bodies and/or component parts with that of other manufacturers will not adversely affect sealing ability. CBC-Lok® Tube Fittings are made to strict quality control standards. CBC-Lok® Tube Fittings are proudly made in the U.S.A.
Tylok® CBC-Lok® SS-4-DBHMP-2 DBHMP Double Ferrule Straight Bulkhead Male Pipe Connector, 1/4 x 1/8 in, Tube x MNPT, Stainless Steel, Domestic
CBPN: 148952
MPN:SS-4-DBHMP-2
UPC:815761020651
DESCRIPTION
Tylok® CBC-Lok® Straight Bulkhead Male Pipe Connector, Straight Bulkhead, Series: DBHMP, Fitting/Connector Type: Connector, 1/4 x 1/8 in Nominal, Tube x MNPT, 5/8 in Body Hex, 0.605 in Length, -20 to 1000 deg F, Stainless Steel, Domestic
CBC-Lok® tube fittings are fully interchangeable with Swagelok® and Parker A-Lok®. Although itis always recommended to use all CBC-Lok® components, intermixing CBC-Lok® bodies and/or component parts with that of other manufacturers will not adversely affect sealing ability. CBC-Lok® Tube Fittings are made to strict quality control standards. CBC-Lok® Tube Fittings are proudly made in the U.S.A.
Specifications
Item Features
- Total component interchangeability
- Heat code traceable
- 29/64 in panel hole
- 5/8 in hex jam nut, 9/16 in hex nut
- 90 Rb hardness
- 0.187 in thru hole
- Double ferrule swaging action system
