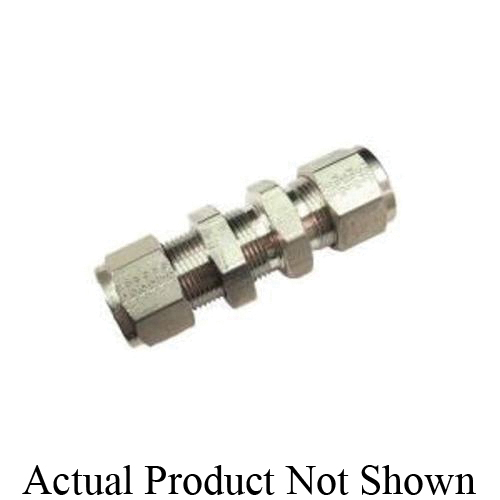

Tylok® CBC-Lok® B-8-DBHU-8 DBHU Double Ferrule Bulkhead Union, 1/2 in, Tube, Brass, Domestic
CBPN:203777
UPC:815761020675
MPN:B-8-DBHU-8
Price:
$20.16 / EA
DESCRIPTION
Tylok® CBC-Lok® Bulkhead Union, Double Ferrule, Series: DBHU, Fitting/Connector Type: Union, 1/2 in Nominal Size, Tube, 15/16 in Hex, 2.8 in Length, Brass, Domestic
CBC-Lok® tube fittings are fully interchangeable with Swagelok® and Parker A-Lok®. Although it is always recommended to use all CBC-Lok® components, intermixing CBC-Lok® bodies and/or component parts with that of other manufacturers will not adversely affect sealing ability. CBC-Lok® Tube Fittings are made to strict quality control standards. CBC-Lok® Tube Fittings are proudly made in the U.S.A.
Tylok® CBC-Lok® B-8-DBHU-8 DBHU Double Ferrule Bulkhead Union, 1/2 in, Tube, Brass, Domestic
CBPN:203777
MPN:B-8-DBHU-8
UPC:815761020675
Price:
$20.16 / EA
DESCRIPTION
Tylok® CBC-Lok® Bulkhead Union, Double Ferrule, Series: DBHU, Fitting/Connector Type: Union, 1/2 in Nominal Size, Tube, 15/16 in Hex, 2.8 in Length, Brass, Domestic
CBC-Lok® tube fittings are fully interchangeable with Swagelok® and Parker A-Lok®. Although it is always recommended to use all CBC-Lok® components, intermixing CBC-Lok® bodies and/or component parts with that of other manufacturers will not adversely affect sealing ability. CBC-Lok® Tube Fittings are made to strict quality control standards. CBC-Lok® Tube Fittings are proudly made in the U.S.A.
Specifications
Brand: Tylok®
Weight: 0.21lbs
End Style: Tube
Length: 2.8 in
Material: Brass
Nominal Size: 1/2 in
Series: DBHU
Type: Double Ferrule
Fitting/Connector Type: Union
Hex Size: 15/16 in
Manufacturer Name: Tylok International
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM B16 Alloy 360/ASTM B453 Alloy 345 Bar Stock | ASTM B124 Alloy 377 Forging | ASTM B75 Copper Temper (O) Tubing | ABS | ASTM F1387 | Canadian Registration | ISO 9001:2008
Item Features
- Double ferrule swaging action
- Total component interchangeability
- Heat code traceable
- ASTM material construction
- 1/2-14 NPT pipe thread
- 60 max rockwell 15 T hardness
- Interchanges with 810-61 and 8BC8
