Tylok® B-4-DME-2

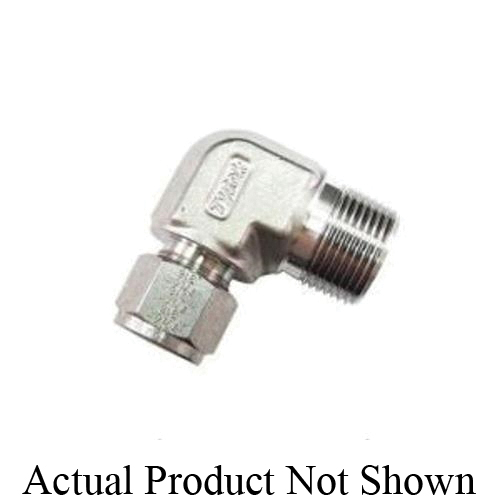

Tylok® CBC-Lok® B-4-DME-2 DME 90 deg Double Ferrule Male Elbow, 1/4 x 1/8 in, Tube x MNPT, Brass, Domestic

CBPN:149756

UPC:811731021987

MPN:B-4-DME-2

Price:
$6.60 / EA

DESCRIPTION

Tylok® CBC-Lok® Male Elbow, Double Ferrule, Series: DME, Fitting/Connector Type: 90 deg Elbow, 1/4 x 1/8 in Nominal Size, Tube x MNPT, Brass, Domestic

CBC-Lok® tube fittings are fully interchangeable with Swagelok® and Parker A-Lok®. Although it is always recommended to use all CBC-Lok® components, intermixing CBC-Lok® bodies and/or component parts with that of other manufacturers will not adversely affect sealing ability. CBC-Lok® Tube Fittings are made to strict quality control standards. CBC-Lok® Tube Fittings are proudly made in the U.S.A.

Tylok® CBC-Lok® B-4-DME-2 DME 90 deg Double Ferrule Male Elbow, 1/4 x 1/8 in, Tube x MNPT, Brass, Domestic

CBPN:149756

MPN:B-4-DME-2

UPC:811731021987

Price:
$6.60 / EA

Tylok logo

DESCRIPTION

Tylok® CBC-Lok® Male Elbow, Double Ferrule, Series: DME, Fitting/Connector Type: 90 deg Elbow, 1/4 x 1/8 in Nominal Size, Tube x MNPT, Brass, Domestic

CBC-Lok® tube fittings are fully interchangeable with Swagelok® and Parker A-Lok®. Although it is always recommended to use all CBC-Lok® components, intermixing CBC-Lok® bodies and/or component parts with that of other manufacturers will not adversely affect sealing ability. CBC-Lok® Tube Fittings are made to strict quality control standards. CBC-Lok® Tube Fittings are proudly made in the U.S.A.

Specifications

BrandTylok®
MaterialBrass
SeriesDME
TypeDouble Ferrule
Domestic/ImportDomestic
End StyleTube x MNPT
Fitting/Connector Type90 deg Elbow
Nominal Size1/4 x 1/8 in
Weight0.07 lbs
Standards ApprovalsASTM B16 Alloy 360/ASTM B453 Alloy 345 Bar Stock,ASTM B124 Alloy 377 Forging,ASTM B75 Copper Temper (O) Tubing,ABS,ASTM F1387,Canadian Registration,ISO 9001:2008

Item Features

  • Double ferrule swaging action
  • Total component interchangeability
  • Heat code traceable
  • 9/16 in nut
  • 1/8-27 NPT pipe thread
  • 60 max rockwell 15 T hardness
  • Interchanges with 400-2-2 and 4MSEL2N
