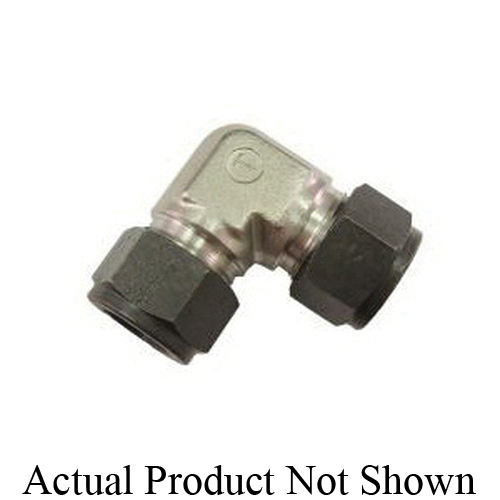

Tylok® CS-Lok® B-12-SELU-12 SELU Single Ferrule 90 deg Union Elbow, 3/4 in Nominal, Tube End Style, Brass, Domestic
CBPN:183827
UPC:815761022488
MPN:B-12-SELU-12
Price:
$41.44 / EA
DESCRIPTION
Tylok® CS-Lok® Union Elbow, Single Ferrule, Series: SELU, 90 deg Elbow Fitting/Connector, 3/4 in Nominal, Tube End Style, Brass, Domestic
CS-Lok® tube fittings is fully interchangeable with Parker CPI™. Although it is always recommended to use all CS-Lok® components, intermixing CS-Lok® bodies and/or component parts with that of other manufacturers will not adversely affect sealing ability. CS-Lok® Tube Fittings are made to strict quality control standards and cannot guarantee that of other manufacturers. CS-Lok® Tube Fittings are proudly made in the U.S.A.
Tylok® CS-Lok® B-12-SELU-12 SELU Single Ferrule 90 deg Union Elbow, 3/4 in Nominal, Tube End Style, Brass, Domestic
CBPN:183827
MPN:B-12-SELU-12
UPC:815761022488
Price:
$41.44 / EA
DESCRIPTION
Tylok® CS-Lok® Union Elbow, Single Ferrule, Series: SELU, 90 deg Elbow Fitting/Connector, 3/4 in Nominal, Tube End Style, Brass, Domestic
CS-Lok® tube fittings is fully interchangeable with Parker CPI™. Although it is always recommended to use all CS-Lok® components, intermixing CS-Lok® bodies and/or component parts with that of other manufacturers will not adversely affect sealing ability. CS-Lok® Tube Fittings are made to strict quality control standards and cannot guarantee that of other manufacturers. CS-Lok® Tube Fittings are proudly made in the U.S.A.
Specifications
Brand: Tylok®
Weight: 0.37lbs
End Style: Tube
Material: Brass
Nominal Size: 3/4 in
Series: SELU
Type: Single Ferrule
Fitting/Connector Type: 90 deg Elbow
Manufacturer Name: Tylok International
Warranty: Limited Lifetime
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ABS Type Approval Program | ASTM B16 Alloy 360/ASTM B453 Alloy 345 Bar Stock | ASTM B124 Alloy 377 Forging | ASTM B75 Tubing | ASTM F1387 | Canadian Registration | ISO 9001:2008 | WBENC Certified
Item Features
- Total component interchangeability
- Heat code traceable
- More tolerant of vibrations
- 1-1/8 in hex nut
- 60 max rockwell 15 T hardness
- 0.63 in thru hole
- Single ferrule swaging action system
