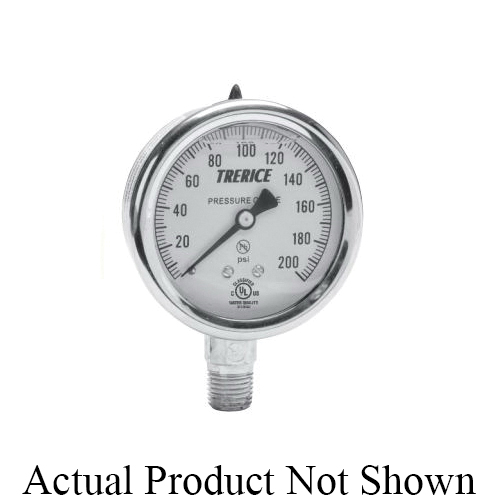

Trerice D83LFSS4002LA60 D80 Industrial Pressure Gauge, 0 to 60 psi Pressure, 1/4 in MNPT Connection, 4 in Dia Dial, +/- 1.6 % Accuracy, Glycerin Liquid Filled
CBPN: 133953
MPN:D83LFSS4002LA60
Price:
$84.19 / EA
DESCRIPTION
Trerice Industrial Pressure Gauge, Series: D80, 0 to 60 psi, 1/4 in MNPT, 4 in Dial Diameter, +/- 1.6 % Accuracy, Liquid Filled: Glycerin, 150 deg F, Lower Mount, 304 Stainless Steel Case, 4.29 in Dia x 1.93 in D
The Trerice D80 Series Industrial Gauge is designed for rugged performance requirements at an economical cost. This liquid filled gauge is furnished with a stainless steel case and crimped ring. Wetted parts are either bronze tube with Lead-Free (PBF) brass socket or stainless steel.
Trerice D83LFSS4002LA60 D80 Industrial Pressure Gauge, 0 to 60 psi Pressure, 1/4 in MNPT Connection, 4 in Dia Dial, +/- 1.6 % Accuracy, Glycerin Liquid Filled
CBPN: 133953
MPN:D83LFSS4002LA60
Price:
$84.19 / EA
DESCRIPTION
Trerice Industrial Pressure Gauge, Series: D80, 0 to 60 psi, 1/4 in MNPT, 4 in Dial Diameter, +/- 1.6 % Accuracy, Liquid Filled: Glycerin, 150 deg F, Lower Mount, 304 Stainless Steel Case, 4.29 in Dia x 1.93 in D
The Trerice D80 Series Industrial Gauge is designed for rugged performance requirements at an economical cost. This liquid filled gauge is furnished with a stainless steel case and crimped ring. Wetted parts are either bronze tube with Lead-Free (PBF) brass socket or stainless steel.
Specifications
Brand: Trerice
Weight: 1.65 lbs
Pressure Range: 0 to 60 psi
Dial Diameter: 4 in
Connection Size: 1/4 in MNPT
Mounting Type: Lower
Accuracy: +/- 1.6 %
Liquid Filled: Glycerin
Dimensions: 4.29 in Dia x 1.93 in D
Manufacturer Name: H.O. Trerice
Material: 304 Stainless Steel Case
Series: D80
Temperature Rating: 150 deg F
Application: For broad spectrum of industrial needs
Warranty: 1 Year
Standards and Approvals: ASME B40.100 Grade 1A | cULus Water Quality MH59892 | CNR Registered
Item Features
- 316 stainless steel movement
- Plain, black finished pointer
- 316 Stainless steel tube and socket
- Acrylic window
- 304 stainless steel, stem mounted flangeless case
- Aluminum/white background with black graduations and markings dial face
- Crimped 304 stainless steel ring
