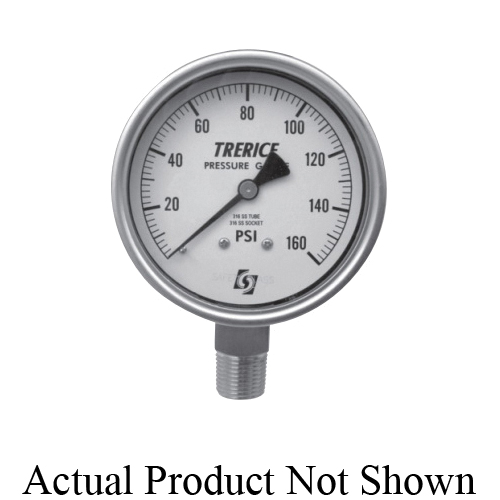

Trerice 700LFSS4004LA2000 700 Industrial Pressure Gauge, 0 to 2000 psi Pressure, 1/2 in MNPT Connection, 4 in Dia Dial, +/- 1 % Accuracy, Glycerin Liquid Filled
CBPN: 179466
MPN:700LFSS4004LA2000
DESCRIPTION
Trerice Industrial Pressure Gauge, Series: 700, 0 to 2000 psi, 1/2 in MNPT, 4 in Dial Diameter, +/- 1 % Accuracy, Liquid Filled: Glycerin, 150 deg F, Lower Mount, 304 Stainless Steel Case, Satin, 3.98 in Dia x 2.24 in D
The Trerice 700 Series Industrial Gauge is designed for the varying needs of the world's industrial applications. This gauge has a stainless steel case and ring. Its sturdy interior design and field liquid-fill capability (no kit required) provide the durability and accuracy required for industrial process environments. Available wetted parts are bronze tube with Lead-Free (PBF) brass socket, stainless steel tube and socket, or Monel tube and socket.
Trerice 700LFSS4004LA2000 700 Industrial Pressure Gauge, 0 to 2000 psi Pressure, 1/2 in MNPT Connection, 4 in Dia Dial, +/- 1 % Accuracy, Glycerin Liquid Filled
CBPN: 179466
MPN:700LFSS4004LA2000
DESCRIPTION
Trerice Industrial Pressure Gauge, Series: 700, 0 to 2000 psi, 1/2 in MNPT, 4 in Dial Diameter, +/- 1 % Accuracy, Liquid Filled: Glycerin, 150 deg F, Lower Mount, 304 Stainless Steel Case, Satin, 3.98 in Dia x 2.24 in D
The Trerice 700 Series Industrial Gauge is designed for the varying needs of the world's industrial applications. This gauge has a stainless steel case and ring. Its sturdy interior design and field liquid-fill capability (no kit required) provide the durability and accuracy required for industrial process environments. Available wetted parts are bronze tube with Lead-Free (PBF) brass socket, stainless steel tube and socket, or Monel tube and socket.
Specifications
Item Features
- Bayonet type, 304 stainless steel ring
- 316 stainless steel tube and socket
- Laminated safety glass window lens
- 304 stainless steel, stem mounted flangeless case
- Aluminum/white background with black graduations and markings dial face
- Micro adjustable, black finished pointer
