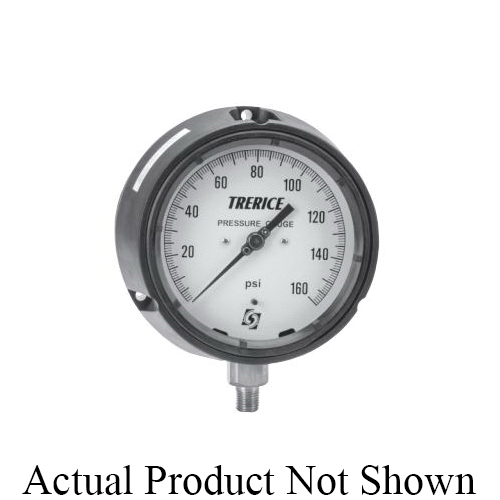

Trerice 450SS4502LD300 450 Dry Pressure Gauge, 0 to 300 psi/0 to 2000 kPa Pressure, 1/4 in MNPT Connection, 4-1/2 in Dia Dial, +/- 0.5 % Accuracy
CBPN: 140304
MPN:450SS4502LD300
DESCRIPTION
Trerice Pressure Gauge, Dry, Series: 450, 0 to 300 psi/0 to 2000 kPa, 1/4 in MNPT, 4-1/2 in Dial Diameter, +/- 0.5 % Accuracy, 250 deg F, Lower Mount, Fiberglass Reinforced Polypropylene Case, 5.83 in Dia x 3.25 in D
The Trerice 450 Series Process Gauge is designed for the petrochemical and industrial process industries. This solid front, blow-out back gauge is noted for its fiberglass reinforced polypropylene turret case and screwed ring; its sturdy interior design; and its field liquid-fill capability (no kit required). The 450 Series can withstand the most rugged industrial applications, while maintaining precise accuracy. Wetted parts are bronze tube/brass socket, stainless steel, or Monel.
Trerice 450SS4502LD300 450 Dry Pressure Gauge, 0 to 300 psi/0 to 2000 kPa Pressure, 1/4 in MNPT Connection, 4-1/2 in Dia Dial, +/- 0.5 % Accuracy
CBPN: 140304
MPN:450SS4502LD300
DESCRIPTION
Trerice Pressure Gauge, Dry, Series: 450, 0 to 300 psi/0 to 2000 kPa, 1/4 in MNPT, 4-1/2 in Dial Diameter, +/- 0.5 % Accuracy, 250 deg F, Lower Mount, Fiberglass Reinforced Polypropylene Case, 5.83 in Dia x 3.25 in D
The Trerice 450 Series Process Gauge is designed for the petrochemical and industrial process industries. This solid front, blow-out back gauge is noted for its fiberglass reinforced polypropylene turret case and screwed ring; its sturdy interior design; and its field liquid-fill capability (no kit required). The 450 Series can withstand the most rugged industrial applications, while maintaining precise accuracy. Wetted parts are bronze tube/brass socket, stainless steel, or Monel.
Specifications
Item Features
- Overload and underload stops
- Threaded fiberglass reinforced polypropylene ring
- Micro adjustable, black finished pointer
- 316L stainless steel tube and socket
- Acrylic window
- Fiberglass reinforced polypropylene turret case, solid front with blow-out back case
- Aluminum/white background with black graduations and markings dial face
- Stainless steel movement
