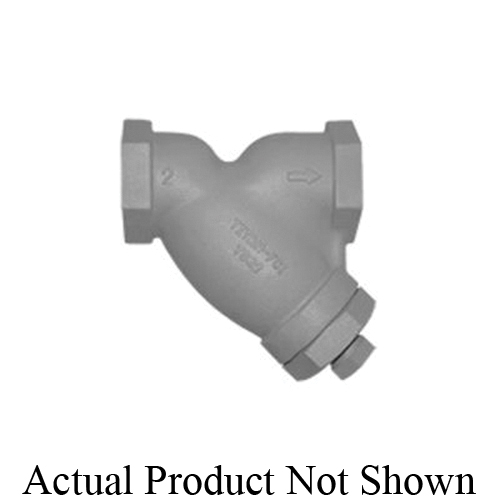

Titan® YS81C0200 YS81-CS Wye Strainer With Cap Cover, 2 in, 6.93 in OAL, FNPT Connection
CBPN: 250894
UPC:046564025493
MPN:YS81C0200
Price:
$358.8 / EA
DESCRIPTION
Titan® Wye Strainer, Series: YS81-CS, 2 in Nominal, 6.93 in Overall Length, 600#, FNPT, 1 in NPT Blow-Off, Carbon Steel Body, Epoxy Painted, Grade WCB
Y Strainers (or Wye Strainers) mechanically remove debris in pipeline with a cylindrical straining element, often called a screen. They can be placed in horizontal or vertical pipelines (downward only) and require regular cleaning of the screen for proper operation.
Titan® YS81C0200 YS81-CS Wye Strainer With Cap Cover, 2 in, 6.93 in OAL, FNPT Connection
CBPN: 250894
MPN:YS81C0200
UPC:046564025493
Price:
$358.8 / EA
DESCRIPTION
Titan® Wye Strainer, Series: YS81-CS, 2 in Nominal, 6.93 in Overall Length, 600#, FNPT, 1 in NPT Blow-Off, Carbon Steel Body, Epoxy Painted, Grade WCB
Y Strainers (or Wye Strainers) mechanically remove debris in pipeline with a cylindrical straining element, often called a screen. They can be placed in horizontal or vertical pipelines (downward only) and require regular cleaning of the screen for proper operation.
Specifications
Brand: Titan®
Weight: 13 lbs
Nominal Size: 2 in
Body Material: Carbon Steel
Connection Type: FNPT
Pressure Class: 600 lb
Overall Length: 6.93 in
Blow-Off Size: 1 in NPT
Finish: Epoxy Painted
Grade: WCB
Manufacturer Name: Titan Flow Control
Series: YS81-CS
Application: Oil and Petrochemical Industries
Warranty: 1 Year
Standards and Approvals: ANSI Class 600 | ANSI/ASME B1.20.1 | ASME/ANSI B16.11 | ASME/ANSI B16.34 | ASTM A-216 Grade WCB Body
Item Features
- Rugged high quality design: The YS81 and YS82 are ideal for petrochemical and other demanding industrial applications that have higher pressure and temperature requirements
- Large straining capacity: With its large body and sizeable straining element, provides excellent open area ratios that are typically two-and-a-half times larger than the corresponding pipeline
- Precision machined seats: Precision machined screen seats in both the body and cap help to ensure accurate positioning of the screen during reassembly after cleaning, also the machined body seats enable finer filtration by preventing debris bypass
- Epoxy painted: Carbon units are epoxy painted to help resist rust and corrosion
