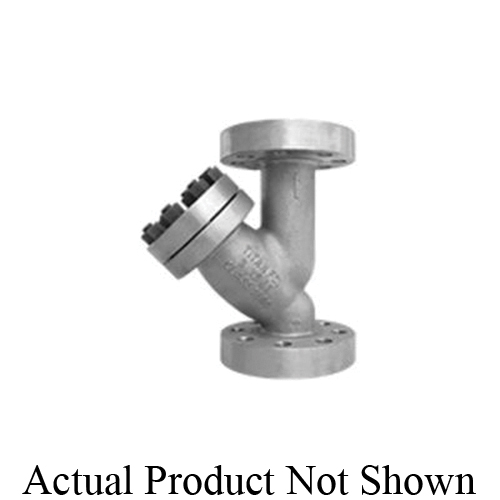

Titan® YS68S0500 YS68-SS Wye Strainer, 5 in Nominal, 1500#, ANSI 1500 Flange Connection
CBPN: 250837
MPN:YS68S0500
Price:
$39517.70 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
DESCRIPTION
Titan® Wye Strainer, Series: YS68-SS, 5 in Nominal, 1500#, Raised Face Flanged, Stainless Steel Body, Grade CF8M
Y Strainers (or Wye Strainers) mechanically remove debris in pipeline with a cylindrical straining element, often called a screen. They can be placed in horizontal or vertical pipelines (downward only) and require regular cleaning of the screen for proper operation.
Titan® YS68S0500 YS68-SS Wye Strainer, 5 in Nominal, 1500#, ANSI 1500 Flange Connection
CBPN: 250837
MPN:YS68S0500
Price:
$39517.70 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
DESCRIPTION
Titan® Wye Strainer, Series: YS68-SS, 5 in Nominal, 1500#, Raised Face Flanged, Stainless Steel Body, Grade CF8M
Y Strainers (or Wye Strainers) mechanically remove debris in pipeline with a cylindrical straining element, often called a screen. They can be placed in horizontal or vertical pipelines (downward only) and require regular cleaning of the screen for proper operation.
Specifications
Brand: Titan®
Weight: 540 lbs
Nominal Size: 5 in
Body Material: Stainless Steel
Connection Type: Flanged
Pressure Class: 1500 lb
Grade: CF8M
Manufacturer Name: Titan Flow Control
Series: YS68-SS
Application: Chemical, Food and Pharmaceutical Industries
Standards and Approvals: ANSI Class 1500 | ASME/ANSI B16.5 | ASME/ANSI B16.34 | ASTM A-351 Grade CF8M Body
Item Features
- Rugged high quality design: Titan®'s YS68 is ideal for petrochemical and other demanding industrial applications that have higher pressure and temperature requirements
- This unit employs heavy gauge, reinforced screens to prevent damage to the straining element, bolt holes are also back or spot faced and the outside diameters of the flanges are machined for precision
- Large straining capacity: With its large body and sizeable straining element, the YS68 provides excellent open area ratios that are typically two-and-a-half times larger than the corresponding pipeline
- Precision machined seats: Precision machined screen seats in both the body and cap help to ensure accurate positioning of the screen during reassembly after cleaning, also the machined body seats enable finer filtration by preventing debris bypass
- Encapsulated "CG" style gasket: The "CG" style cover gasket provides additional radial strength to prevent gasket blowout, it also acts as a compression stop
