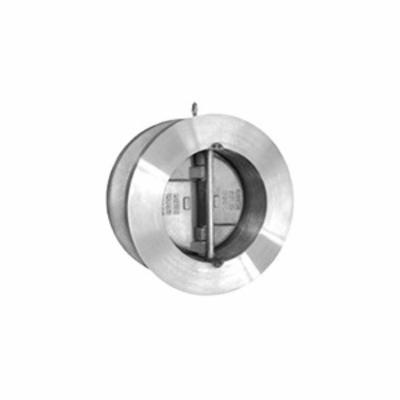

Titan® CV46SSM0250 CV46-SS Dual Disc Wafer Check Valve, 2-1/2 in, Flanged, 600 lb, Stainless Steel Body
CBPN: 251367
UPC:046564018402
MPN:CV46SSM0250
Price:
$1228.32 / EA
DESCRIPTION
Titan® Check Valve, Dual Disc Wafer, Series: CV46-SS, 2-1/2 in Nominal, Flanged, 1440 psi WOG, 600 lb, 100 deg F, 2-5/8 in Inlet to Outlet Length, Stainless Steel Body, 316 Stainless Steel/Inconel X-750 Trim, 5.062 in OD
Check Valves are automatic shut-off valves that are commonly used for preventing backflow or drainage in a piping system. Often applied on the discharge side of pumps, check valves prevent the system from draining if the pump stops and protect against backflow, which could harm the pump or other equipment.
Titan® CV46SSM0250 CV46-SS Dual Disc Wafer Check Valve, 2-1/2 in, Flanged, 600 lb, Stainless Steel Body
CBPN: 251367
MPN:CV46SSM0250
UPC:046564018402
Price:
$1228.32 / EA
DESCRIPTION
Titan® Check Valve, Dual Disc Wafer, Series: CV46-SS, 2-1/2 in Nominal, Flanged, 1440 psi WOG, 600 lb, 100 deg F, 2-5/8 in Inlet to Outlet Length, Stainless Steel Body, 316 Stainless Steel/Inconel X-750 Trim, 5.062 in OD
Check Valves are automatic shut-off valves that are commonly used for preventing backflow or drainage in a piping system. Often applied on the discharge side of pumps, check valves prevent the system from draining if the pump stops and protect against backflow, which could harm the pump or other equipment.
Specifications
Brand: Titan®
Weight: 13 lbs
Nominal Size: 2-1/2 in
End Style: Flanged
Pressure Class: 600 lb
Body Material: Stainless Steel
Dimensions: 5.062 in OD
Inlet to Outlet Length: 2-5/8 in
Manufacturer Name: Titan Flow Control
Pressure Rating: 1440 psi WOG
Series: CV46-SS
Temperature Rating: 100 deg F
Trim Material: 316 Stainless Steel/Inconel X-750
Type: Dual Disc Wafer
Application: Water and Waste Water Treatment, Pulp and Paper, Chemical and Petrochemical, Power, Petroleum, Oil and Gas
Standards and Approvals: ANSI/API 594 | API 598 | API 6D | ASME/ANSI B16.34 | ASTM A351 Grade CF8M body
Item Features
- Cost efficient design: Low weight and short laying length produce savings in initial cost, space requirements, and installation when compared to full body, swing type check valves
- Minimal head loss: Contour of body provides a short and straight flow path that generates very little turbulence
- Additionally, the spring loaded disc is designed with very low cracking pressure which reduces the amount of energy required to open the valve
- Quick closure to reduce water hammer: Shut-off is achieved via the fully automatic, spring assisted discs that close near zero flow velocity
- The lightweight, split disc design creates a positive shutoff prior to flow reversal and helps to keep slamming and surges to a minimum
- Designed for long service life: The spring and discs are designed to allow the discs to lift linearly before pivoting to avoid the disc heal from scrubbing the sealing surface
- Also, discs are equipped with cast-in shock bumpers that help to reduce wear and tear on internal components
- Fugitive emission design: The retainer-less body design eliminates potential leak paths to The environment so there are no body emissions
- Resilient and metal seats: Board, lapped sealing surface (metal) meets or exceeds API 598 test requirements, resilient seats (FKM/Buna-N) ensure a bubble tight seal
