Titan® CV44SSV0600

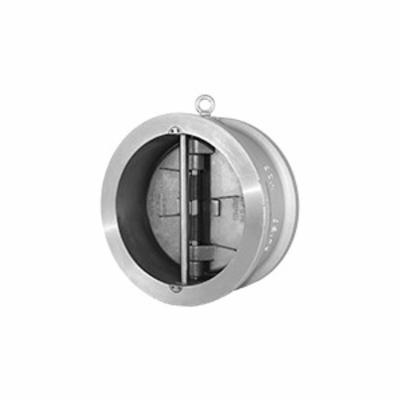

Titan® CV44SSV0600 CV44-SS Dual Disc Wafer Check Valve, 6 in, Flanged, 300 lb, Stainless Steel Body

CBPN:251351

MPN:CV44SSV0600

Price:
$1866.55 / EA

DESCRIPTION

Titan® Check Valve, Dual Disc Wafer, Series: CV44-SS, 6 in Nominal, Flanged, 720 psi WOG, 300 lb, 100 deg F, 3.88 in Inlet to Outlet Length, Stainless Steel Body, 316 Stainless Steel/FKM/Inconel X-750 Trim, 8.69 in OD

Check Valves are automatic shut-off valves that are commonly used for preventing backflow or drainage in a piping system. Often applied on the discharge side of pumps, check valves prevent the system from draining if the pump stops and protect against backflow, which could harm the pump or other equipment.

Titan® CV44SSV0600 CV44-SS Dual Disc Wafer Check Valve, 6 in, Flanged, 300 lb, Stainless Steel Body

CBPN:251351

MPN:CV44SSV0600

Price:
$1866.55 / EA

Titan Flow Control Logo

DESCRIPTION

Titan® Check Valve, Dual Disc Wafer, Series: CV44-SS, 6 in Nominal, Flanged, 720 psi WOG, 300 lb, 100 deg F, 3.88 in Inlet to Outlet Length, Stainless Steel Body, 316 Stainless Steel/FKM/Inconel X-750 Trim, 8.69 in OD

Check Valves are automatic shut-off valves that are commonly used for preventing backflow or drainage in a piping system. Often applied on the discharge side of pumps, check valves prevent the system from draining if the pump stops and protect against backflow, which could harm the pump or other equipment.

Specifications

BrandTitan®
Body MaterialStainless Steel
End StyleFlanged
Nominal Size6 in
Pressure Rating720 psi WOG
SeriesCV44-SS
Temperature Rating100 deg F
TypeDual Disc Wafer
Dimensions8.69 in OD
Pressure Class300 lb
Trim Material316 Stainless Steel/FKM/Inconel X-750
Inlet to Outlet Length3.88 in
Weight36 lbs

Item Features

  • Cost efficient design: Low weight and short laying length produce savings in initial cost, space requirements, and installation when compared to full body, swing type check valves
  • Minimal head loss: Contour of body provides a short and straight flow path that generates very little turbulence
  • Additionally, the spring loaded disc is designed with very low cracking pressure which reduces the amount of energy required to open the valve
  • Quick closure to reduce water hammer: Shut-off is achieved via the fully automatic, spring assisted discs that close near zero flow velocity
  • The lightweight, split disc design creates a positive shutoff prior to flow reversal and helps to keep slamming and surges to a minimum
  • Designed for long service life: The spring and discs are designed to allow the discs to lift linearly before pivoting to avoid the disc heal from scrubbing the sealing surface
  • Also, discs are equipped with cast-in shock bumpers that help to reduce wear and tear on internal components
  • Fugitive emission design: The retainer-less body design eliminates potential leak paths to The environment so there are no body emissions
  • Resilient seats(FKM) ensure a bubble tight seal
