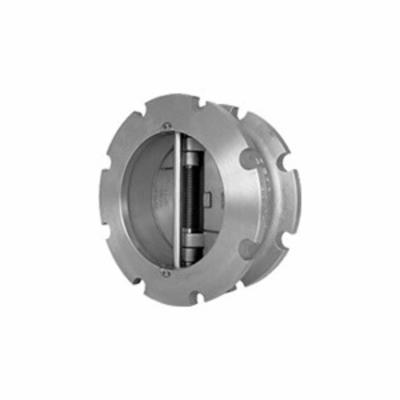

Titan® CV42SSV1000 CV42-SS Dual Disc Wafer Check Valve, 10 in, 150 lb, Stainless Steel Body
CBPN:251292
MPN:CV42SSV1000
Price:
$4120.15 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
DESCRIPTION
Titan® Check Valve, Dual Disc Wafer, Series: CV42-SS, 10 in Nominal, 275 psi WOG, 150 lb, 100 deg F, 5-3/4 in Inlet to Outlet Length, Stainless Steel Body, 316 Stainless Steel/FKM/Inconel X-750 Trim, 13.27 in OD
Check Valves are automatic shut-off valves that are commonly used for preventing backflow or drainage in a piping system. Often applied on the discharge side of pumps, check valves prevent the system from draining if the pump stops and protect against backflow, which could harm the pump or other equipment.
Titan® CV42SSV1000 CV42-SS Dual Disc Wafer Check Valve, 10 in, 150 lb, Stainless Steel Body
CBPN:251292
MPN:CV42SSV1000
Price:
$4120.15 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
DESCRIPTION
Titan® Check Valve, Dual Disc Wafer, Series: CV42-SS, 10 in Nominal, 275 psi WOG, 150 lb, 100 deg F, 5-3/4 in Inlet to Outlet Length, Stainless Steel Body, 316 Stainless Steel/FKM/Inconel X-750 Trim, 13.27 in OD
Check Valves are automatic shut-off valves that are commonly used for preventing backflow or drainage in a piping system. Often applied on the discharge side of pumps, check valves prevent the system from draining if the pump stops and protect against backflow, which could harm the pump or other equipment.
Specifications
Brand: Titan®
Weight: 88lbs
Body Material: Stainless Steel
End Style: Wafer
Nominal Size: 10 in
Series: CV42-SS
Temperature Rating: 100 deg F
Type: Dual Disc Wafer
Pressure Rating: 275 psi WOG
Dimensions: 13.27 in OD
Pressure Class: 150 lb
Trim Material: 316 Stainless Steel/FKM/Inconel X-750
Inlet to Outlet Length: 5-3/4 in
Manufacturer Name: Titan Flow Control
Application: Water and Waste Water Treatment, Pulp and Paper, Chemical and Petrochemical, Power, Petroleum, Oil and Gas
Warranty: 1 Year
Standards and Approvals: ANSI/API 594 | ANSI/ASME 16.5 | API 598 | ASTM A351 Grade CF8M Body
Item Features
- Minimal head loss: Contour of body provides a short and straight flow path that generates very little turbulence
- Additionally, the spring loaded disc is designed with very low cracking pressure which reduces the amount of energy required to open the valve
- Quick closure to reduce water hammer: Shut-off is achieved via the fully automatic, spring assisted discs that close near zero flow velocity
- The lightweight, split disc design creates a positive shutoff prior to flow reversal and helps to keep slamming and surges to a minimum
- Designed for long service life: The spring and discs are designed to allow the discs to lift linearly before pivoting to avoid the disc heal from scrubbing the sealing surface
- Also, discs are equipped with cast-in shock bumpers that help to reduce wear and tear on internal components
- Fugitive emission design: The retainer-less body design eliminates potential leak paths to the environment so there are no body emissions
- Resilient seats(FKM) ensure a bubble tight seal
