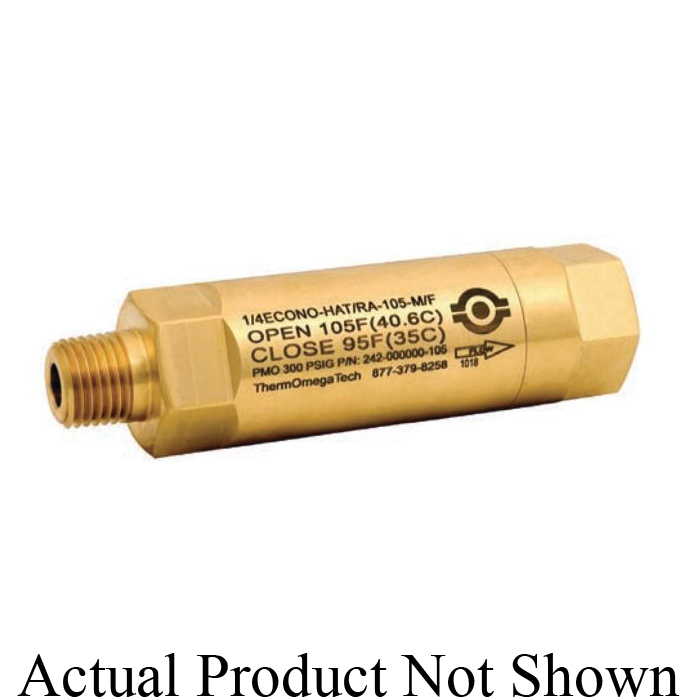

ThermOmegaTech® 242-000000-200 ECONO/HAT-RA Reverse Acting Thermal Insulator Handle Relief Valve, 1/4 in Nominal, MNPT x FNPT End Style, 300 psig Pressure, Brass Body, Domestic
CBPN: 258289
MPN:242-000000-200
DESCRIPTION
ThermOmegaTech® Thermal Insulator Handle Relief Valve, Reverse Acting, Series: ECONO/HAT-RA, 1/4 in Nominal, NPT End Style, 300 psig Pressure, 250 deg F, Media: Water, Thermal Insulator Handle Actuator, 3.6 in Inlet to Outlet Length, Brass Body, 300 Series Stainless Steel Trim, Buna/PTFE Softgoods, 1 in Dia Dimensions, Domestic, Model 1/4 ECONO-HAT/RA-200- M/F
ECONO/HAT-RA is primarily used for thermal relief on booster pumps to keep them cool during idling. It can also be used to controlling cooling water outlet temperature or controlling the flow of cooling water, glycol or other cooling media in applications requiring economical removal of heat from equipment or a process. Since ECONO/HAT-RA valves open on rising temperatures, they can be used in many other Thermal Relief Valve applications. These valves save space, install in seconds and eliminate the use of extra, expensive and time consuming piping. The unique ram type plug and seat provide a reliable, tight shut-off longer than any other design available.
ThermOmegaTech 1/4" ECONO-HAT/RA-200- M/F Pump Valve, Open 200°F (93.3°C) Close 190°F (87.8°C)
ThermOmegaTech® 242-000000-200 ECONO/HAT-RA Reverse Acting Thermal Insulator Handle Relief Valve, 1/4 in Nominal, MNPT x FNPT End Style, 300 psig Pressure, Brass Body, Domestic
CBPN: 258289
MPN:242-000000-200
DESCRIPTION
ThermOmegaTech® Thermal Insulator Handle Relief Valve, Reverse Acting, Series: ECONO/HAT-RA, 1/4 in Nominal, NPT End Style, 300 psig Pressure, 250 deg F, Media: Water, Thermal Insulator Handle Actuator, 3.6 in Inlet to Outlet Length, Brass Body, 300 Series Stainless Steel Trim, Buna/PTFE Softgoods, 1 in Dia Dimensions, Domestic, Model 1/4 ECONO-HAT/RA-200- M/F
ECONO/HAT-RA is primarily used for thermal relief on booster pumps to keep them cool during idling. It can also be used to controlling cooling water outlet temperature or controlling the flow of cooling water, glycol or other cooling media in applications requiring economical removal of heat from equipment or a process. Since ECONO/HAT-RA valves open on rising temperatures, they can be used in many other Thermal Relief Valve applications. These valves save space, install in seconds and eliminate the use of extra, expensive and time consuming piping. The unique ram type plug and seat provide a reliable, tight shut-off longer than any other design available.
ThermOmegaTech 1/4" ECONO-HAT/RA-200- M/F Pump Valve, Open 200°F (93.3°C) Close 190°F (87.8°C)
Specifications
Item Features
- Self-operating, no power or signal required
- Protects pump and pump seals from over-temperature damage
- Prevents potentially scalding water from being distributed to users
- Exclusive Thermoloid® thermal actuator
- Corrosion-resistant, long service life
- Compact, low mass - fast response
- 300 stainless steel operating spring
- Buna body seal, PTFE seat seal
- A #20 mesh strainer is recommended
- 200 deg F open/190 deg F close temperature
