ThermOmegaTech® 242-000000-105

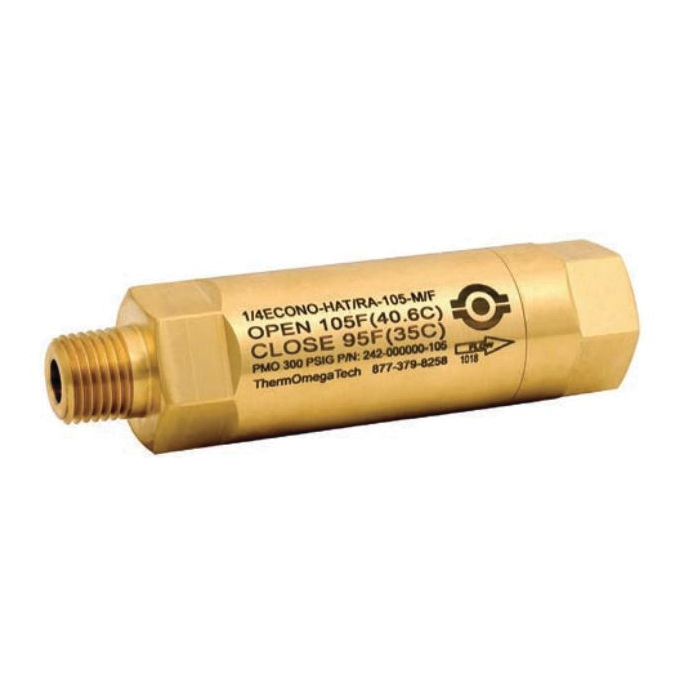

ThermOmegaTech® 242-000000-105 ECONO/HAT-RA Reverse Acting Thermal Insulator Handle Relief Valve, 1/4 in Nominal, NPT End Style, 300 psig Pressure, Brass Body, Domestic

CBPN:256022

MPN:242-000000-105

Price:
$150.00 / EA
Prop 65:

DESCRIPTION

ThermOmegaTech® Thermal Insulator Handle Relief Valve, Reverse Acting, Series: ECONO/HAT-RA, 1/4 in Nominal, NPT End Style, 300 psig Pressure, 250 deg F, Media: Water, Thermal Insulator Handle Actuator, 3.6 in Inlet to Outlet Length, Brass Body, 300 Series Stainless Steel Trim, Buna/PTFE Softgoods, 1 in Dia Dimensions, Domestic, Model 1/4 ECONO-HAT/RA-105- M/F

ECONO/HAT-RA is primarily used for thermal relief on booster pumps to keep them cool during idling. It can also be used to controlling cooling water outlet temperature or controlling the flow of cooling water, glycol or other cooling media in applications requiring economical removal of heat from equipment or a process. Since ECONO/HAT-RA valves open on rising temperatures, they can be used in many other Thermal Relief Valve applications. These valves save space, install in seconds and eliminate the use of extra, expensive and time consuming piping. The unique ram type plug and seat provide a reliable, tight shut-off longer than any other design available.

ThermOmegaTech® 242-000000-105 ECONO/HAT-RA Reverse Acting Thermal Insulator Handle Relief Valve, 1/4 in Nominal, NPT End Style, 300 psig Pressure, Brass Body, Domestic

CBPN:256022

MPN:242-000000-105

Price:
$150.00 / EA

Prop 65:
ThermOmegaTech

DESCRIPTION

ThermOmegaTech® Thermal Insulator Handle Relief Valve, Reverse Acting, Series: ECONO/HAT-RA, 1/4 in Nominal, NPT End Style, 300 psig Pressure, 250 deg F, Media: Water, Thermal Insulator Handle Actuator, 3.6 in Inlet to Outlet Length, Brass Body, 300 Series Stainless Steel Trim, Buna/PTFE Softgoods, 1 in Dia Dimensions, Domestic, Model 1/4 ECONO-HAT/RA-105- M/F

ECONO/HAT-RA is primarily used for thermal relief on booster pumps to keep them cool during idling. It can also be used to controlling cooling water outlet temperature or controlling the flow of cooling water, glycol or other cooling media in applications requiring economical removal of heat from equipment or a process. Since ECONO/HAT-RA valves open on rising temperatures, they can be used in many other Thermal Relief Valve applications. These valves save space, install in seconds and eliminate the use of extra, expensive and time consuming piping. The unique ram type plug and seat provide a reliable, tight shut-off longer than any other design available.

Specifications

BrandThermOmegaTech®
Weight0.5lbs
Nominal Size1/4 in
End StyleNPT
Pressure Rating300 psig
Body MaterialBrass
Actuator TypeThermal Insulator Handle
Dimensions1 in Dia
Inlet to Outlet Length3.6 in
Manufacturer NameThermOmegaTech
MediaWater
SeriesECONO/HAT-RA
Softgoods MaterialBuna/PTFE
Temperature Rating250 deg F
Trim Material300 Series Stainless Steel
TypeReverse Acting
ApplicationFor thermal relief of booster pumps, controlling cooling water outlet temperature and controlling flow of cooling water, glycol or other cooling media in applications requiring economical removal of heat from equipment or a process applications
Warranty18 months
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsNSF 61 | PROP65: This product can expose you to chemicals, for example lead, nickel, acrylonitrile, which are known to the State of CA to cause cancer, birth defects or reproductive harm. For more information, go to www.P65Warnings.ca.gov

Item Features

  • Self-operating, no power or signal required
  • Protects pump and pump seals from over-temperature damage
  • Prevents potentially scalding water from being distributed to users
  • Exclusive Thermoloid® thermal actuator
  • Corrosion-resistant, long service life
  • Compact, low mass - fast response
  • 300 stainless steel operating spring
  • Buna body seal, PTFE seat seal
  • A #20 mesh strainer is recommended
  • 105 deg F open/95 deg F close temperature
