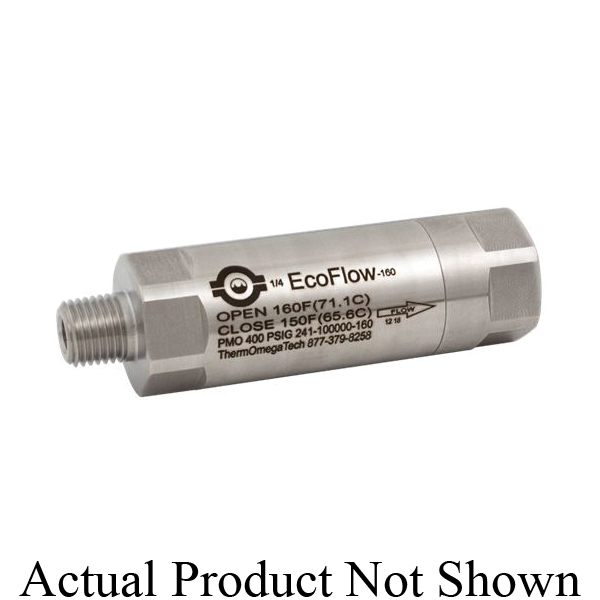

ThermOmegaTech® 241-100000-095 EcoFlow® Mechanical Seal Water Support Valve, 1/4 in Nominal, MNPT x FNPT End Style, 400 psig Pressure, 300 Series Stainless Steel Body, Domestic
CBPN: 258119
MPN:241-100000-095
DESCRIPTION
ThermOmegaTech® Mechanical Seal Water Support Valve, Series: EcoFlow®, 1/4 in Nominal, NPT End Style, 400 psig Pressure, 250 deg F, Media: Water, Thermal Insulator Handle Actuator, 3.6 in Inlet to Outlet Length, 300 Series Stainless Steel Body, 300 Series Stainless Steel Trim, Buna-N Softgoods, 1.1 in Dia Dimensions, Domestic, Model 1/4 EcoFlow-095
The EcoFlow® Mechanical Seal Water Support Valve provides an optimum seal environment for double mechanical seals, while drastically reducing water consumption and significantly increasing cost savings. The thermostatically operated EcoFlow® is installed on the seal water outlet of a double mechanical seal to continuously maintain a constant seal water outlet temperature. If the seal water should exceed the specified factory set point, the valve will modulate open discharging the hot water, displacing it with cool water. This cooler water will cause the EcoFlow® to modulate closed. This cycle will continue to occur as long as excessive heat is being transferred to the seal water causing the water temperature to exceed the valve's factory set point.
ThermOmegaTech 1/4" EcoFlow-095 Pump Valve, Open 95°F (35°C) Close 85°F (29.4°C)
ThermOmegaTech® 241-100000-095 EcoFlow® Mechanical Seal Water Support Valve, 1/4 in Nominal, MNPT x FNPT End Style, 400 psig Pressure, 300 Series Stainless Steel Body, Domestic
CBPN: 258119
MPN:241-100000-095
DESCRIPTION
ThermOmegaTech® Mechanical Seal Water Support Valve, Series: EcoFlow®, 1/4 in Nominal, NPT End Style, 400 psig Pressure, 250 deg F, Media: Water, Thermal Insulator Handle Actuator, 3.6 in Inlet to Outlet Length, 300 Series Stainless Steel Body, 300 Series Stainless Steel Trim, Buna-N Softgoods, 1.1 in Dia Dimensions, Domestic, Model 1/4 EcoFlow-095
The EcoFlow® Mechanical Seal Water Support Valve provides an optimum seal environment for double mechanical seals, while drastically reducing water consumption and significantly increasing cost savings. The thermostatically operated EcoFlow® is installed on the seal water outlet of a double mechanical seal to continuously maintain a constant seal water outlet temperature. If the seal water should exceed the specified factory set point, the valve will modulate open discharging the hot water, displacing it with cool water. This cooler water will cause the EcoFlow® to modulate closed. This cycle will continue to occur as long as excessive heat is being transferred to the seal water causing the water temperature to exceed the valve's factory set point.
ThermOmegaTech 1/4" EcoFlow-095 Pump Valve, Open 95°F (35°C) Close 85°F (29.4°C)
Specifications
Item Features
- Self-operating, no power or signal required
- Drastically decreases seal water consumption
- Eliminates dry runs due to operator error and increases seal life
- Exclusive Thermoloid® thermal actuator
- Stainless steel body, fittings, spring and plug
- Fail-safe design
- 300 stainless steel seat and operating spring
- Buna-N seal/sealing O-ring/seat seal
- 95 deg F open/85 deg F close temperature
