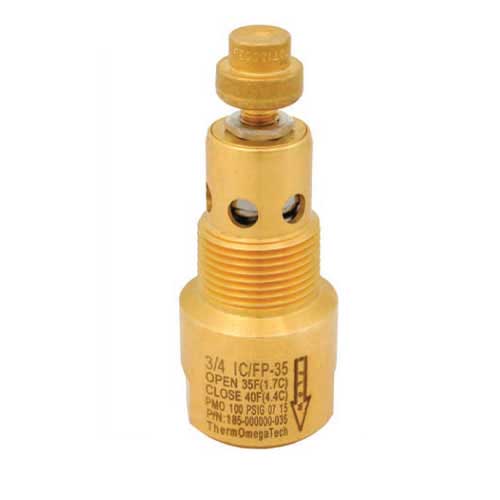

ThermOmegaTech® 185-000000-035 IC/FP Interchangeable Cartridge Thermostatic Freeze Protection Valve, 3/4 in Nominal, NPT End Style, 100 psig Pressure, Brass Body, Domestic
CBPN:258542
MPN:185-000000-035
Price:
$173.00 / EA
Prop 65:
DESCRIPTION
ThermOmegaTech® Thermostatic Freeze Protection Valve, Interchangeable Cartridge, Series: IC/FP, 3/4 in Nominal, NPT End Style, 100 psig Pressure, 200 deg F, Media: Water, Thermal Insulator Handle Actuator, Brass Body, 300 Series Stainless Steel Trim, PTFE, Model 3/4 IC/FP-35
The IC/FP interchangeable cartridge style Thermostatic Freeze Protection Valve is designed to protect piping in processing plants, safety showers, fire lines and spray nozzles or to be used as a backup protection on traced systems. The IC/FP is preferred
ThermOmegaTech 3/4" IC/FP-35 Freeze Protection Valve, Open 35°F (1.7°C) Close 40°F (4.4°C)
ThermOmegaTech® 185-000000-035 IC/FP Interchangeable Cartridge Thermostatic Freeze Protection Valve, 3/4 in Nominal, NPT End Style, 100 psig Pressure, Brass Body, Domestic
CBPN:258542
MPN:185-000000-035
Price:
$173.00 / EA
Prop 65:
DESCRIPTION
ThermOmegaTech® Thermostatic Freeze Protection Valve, Interchangeable Cartridge, Series: IC/FP, 3/4 in Nominal, NPT End Style, 100 psig Pressure, 200 deg F, Media: Water, Thermal Insulator Handle Actuator, Brass Body, 300 Series Stainless Steel Trim, PTFE, Model 3/4 IC/FP-35
The IC/FP interchangeable cartridge style Thermostatic Freeze Protection Valve is designed to protect piping in processing plants, safety showers, fire lines and spray nozzles or to be used as a backup protection on traced systems. The IC/FP is preferred
ThermOmegaTech 3/4" IC/FP-35 Freeze Protection Valve, Open 35°F (1.7°C) Close 40°F (4.4°C)
Specifications
Brand: ThermOmegaTech®
Weight: 0.5 lbs
Nominal Size: 3/4 in
End Style: NPT
Pressure Rating: 100 psig
Body Material: Brass
Actuator Type: Thermal Insulator Handle
Color: Natural White
Dimensions: 1.4 in OD x 3.53 in L
Inlet to Outlet Length: 2.3 in
Manufacturer Name: ThermOmegaTech
Media: Water
Series: IC/FP
Softgoods Material: PTFE
Temperature Rating: 200 deg F
Trim Material: 300 Series Stainless Steel
Type: Interchangeable Cartridge
Application: For the protection of piping, safety showers, solar collectors and piping, condensate systems, fire lines, spray nozzles or as backup protection on traced systems
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: PROP65: This product can expose you to chemicals, for example lead, nickel, acrylonitrile, which are known to the State of CA to cause cancer, birth defects or reproductive harm. For more information, go to www.P65Warnings.ca.gov
Item Features
- Self-operating, no external power source required
- Discharges minimum amount of water required
- Primary protection or fail-safe backup
- Exclusive self-actuating Thermoloid® blend paraffin wax actuator
- Stainless steel body, fittings, spring and plug
- Designed to be tee's into larger diameter pipe lines
- 300 stainless steel operating spring
- PTFE seal
- 35 deg F open/40 deg F close temperature
