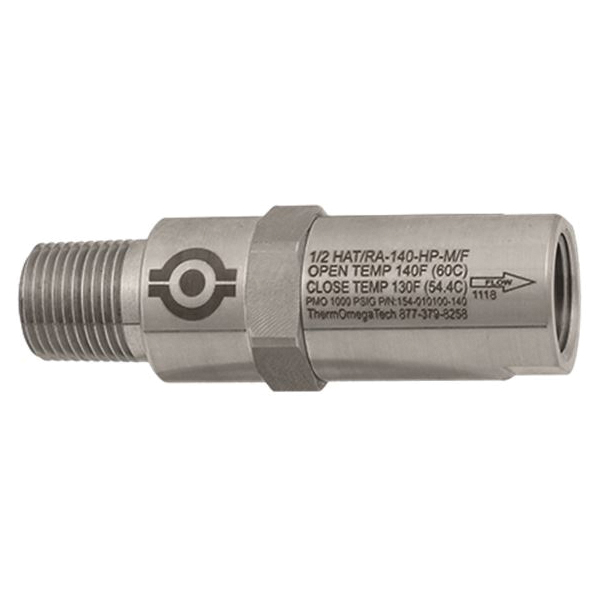

ThermOmegaTech® 154-010100-140 HAT/RA-HP High Pressure In-Line Reverse Acting Temperature Control Valve, 1/2 in Nominal, NPT End Style, 1000 psig Pressure, 300 Series Stainless Steel Body, Domestic
CBPN:255359
MPN:154-010100-140
Price:
$259.00 / EA
Prop 65:
DESCRIPTION
ThermOmegaTech® Temperature Control Valve, High Pressure In-Line Reverse Acting, Series: HAT/RA-HP, 1/2 in Nominal, NPT End Style, 1000 psig Pressure, 250 deg F, Media: Air, Ketones, Steam, Synthetic Hydraulic Oils, Water, Thermal Insulator Handle Actuator, 3.8 in Inlet to Outlet Length, 300 Series Stainless Steel Body, 300 Series Stainless Steel Trim, EPDM/PTFE Softgoods, 1.1 in Dia Dimensions, Domestic
The HAT/RA-HP thermal relief valve is designed to protect higher rated pressure systems (up to 1000 psig [69 bar]) from over-temperature damage. It is commonly used as a thermal relief valve on fire pumps and high pressure water pumps to keep them cool during idling. It may also be used as a regulating valve to maintain the flow of glycol, water or other media in critical cooling applications and to economically remove heat from equipment or a process. If the fluid temperature increases to within the operating range of the HAT/RA-HP, the thermal actuator will modulate the valve open to discharge the over-temperature fluid. As the outlet temperature falls, the valve then modulates toward the closed position, reducing flow. This modulating action maintains a relatively constant fluid temperature and reduces wasted water and energy.
ThermOmegaTech® 154-010100-140 HAT/RA-HP High Pressure In-Line Reverse Acting Temperature Control Valve, 1/2 in Nominal, NPT End Style, 1000 psig Pressure, 300 Series Stainless Steel Body, Domestic
CBPN:255359
MPN:154-010100-140
Price:
$259.00 / EA
Prop 65:
DESCRIPTION
ThermOmegaTech® Temperature Control Valve, High Pressure In-Line Reverse Acting, Series: HAT/RA-HP, 1/2 in Nominal, NPT End Style, 1000 psig Pressure, 250 deg F, Media: Air, Ketones, Steam, Synthetic Hydraulic Oils, Water, Thermal Insulator Handle Actuator, 3.8 in Inlet to Outlet Length, 300 Series Stainless Steel Body, 300 Series Stainless Steel Trim, EPDM/PTFE Softgoods, 1.1 in Dia Dimensions, Domestic
The HAT/RA-HP thermal relief valve is designed to protect higher rated pressure systems (up to 1000 psig [69 bar]) from over-temperature damage. It is commonly used as a thermal relief valve on fire pumps and high pressure water pumps to keep them cool during idling. It may also be used as a regulating valve to maintain the flow of glycol, water or other media in critical cooling applications and to economically remove heat from equipment or a process. If the fluid temperature increases to within the operating range of the HAT/RA-HP, the thermal actuator will modulate the valve open to discharge the over-temperature fluid. As the outlet temperature falls, the valve then modulates toward the closed position, reducing flow. This modulating action maintains a relatively constant fluid temperature and reduces wasted water and energy.
Specifications
Brand: ThermOmegaTech®
Weight: 0.6lbs
Actuator Type: Thermal Insulator Handle
Body Material: 300 Series Stainless Steel
End Style: NPT
Nominal Size: 1/2 in
Series: HAT/RA-HP
Temperature Rating: 250 deg F
Type: High Pressure In-Line Reverse Acting
Pressure Rating: 1000 psig
Dimensions: 1.1 in Dia
Media: Air, Ketones, Steam, Synthetic Hydraulic Oils, Water
Softgoods Material: EPDM/PTFE
Trim Material: 300 Series Stainless Steel
Inlet to Outlet Length: 3.8 in
Manufacturer Name: ThermOmegaTech
Application: For used as a thermal relief valve on fire pumps and high pressure water pumps to keep them cool during idling applications
Warranty: 18 months
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: PROP65: This product can expose you to chemicals, for example lead, nickel, acrylonitrile, which are known to the State of CA to cause cancer, birth defects or reproductive harm. For more information, go to www.P65Warnings.ca.gov
Item Features
- Self-operating, no power or signal required
- Protects pump and pump seals from over-temperature damage
- Rated for higher pressure systems - up to 1000 psig
- Exclusive Thermoloid® thermal actuator
- Stainless steel body, fittings, spring and plug
- Compact, low mass - fast response
- 300 stainless steel operating spring
- EPDM body seal/seat ring seal, PTFE port seal
- A #20 mesh strainer is recommended
- 140 deg F open/130 deg F close temperature
