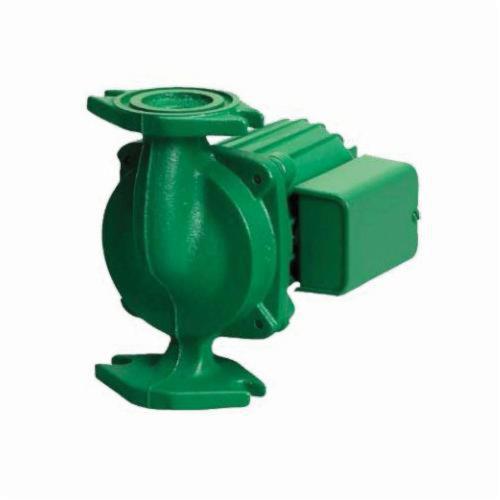

Taco® 009-SF5 9 Series Stainless Steel Cartridge Circulator Pump, 10 gpm Flow Rate, 3/4 in, 1 in, 1-1/4 in, 1-1/2 in Flanged Inlet x 3/4, 1, 1-1/4, 1-1/2 in Outlet, 115 VAC, 1 ph Phase, Domestic
CBPN:7206
MPN:009-SF5
Price:
$773.35 / EA
DESCRIPTION
Taco®, 009-SF5, Cartridge Circulator Pump, Stainless Steel, Series: 9 Series, 10 gpm Flow Rate, 3/4 in, 1 in, 1-1/4 in, 1-1/2 in Flanged Inlet, 3/4, 1, 1-1/4, 1-1/2 in Outlet, 35 ft Maximum Head, 1/8 hp Power, 115 VAC, 1.40 A, 60 Hz Frequency, 1 ph, 150 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, Flange Mounting, 240 deg F, Carbon Bearing, 7 in L x 4-1/8 in W x 6-3/8 in H Dimensions, Domestic
The high velocity series Taco® 009 cartridge circulator is designed for quiet, efficient operation in higher-head/lower-flow applications for Hydronic heating, Radiant in-floor/panel heating, solar heating, heat recovery and domestic water recirculation systems. Its unique field-serviceable cartridge contains all moving parts. Replacing the cartridge rebuilds the circulator. With no mechanical seal, the self-lubricating, maintenance free design provides unmatched reliability. Available in cast iron or bronze construction.
Taco® 009-SF5 9 Series Stainless Steel Cartridge Circulator Pump, 10 gpm Flow Rate, 3/4 in, 1 in, 1-1/4 in, 1-1/2 in Flanged Inlet x 3/4, 1, 1-1/4, 1-1/2 in Outlet, 115 VAC, 1 ph Phase, Domestic
CBPN:7206
MPN:009-SF5
Price:
$773.35 / EA
DESCRIPTION
Taco®, 009-SF5, Cartridge Circulator Pump, Stainless Steel, Series: 9 Series, 10 gpm Flow Rate, 3/4 in, 1 in, 1-1/4 in, 1-1/2 in Flanged Inlet, 3/4, 1, 1-1/4, 1-1/2 in Outlet, 35 ft Maximum Head, 1/8 hp Power, 115 VAC, 1.40 A, 60 Hz Frequency, 1 ph, 150 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, Flange Mounting, 240 deg F, Carbon Bearing, 7 in L x 4-1/8 in W x 6-3/8 in H Dimensions, Domestic
The high velocity series Taco® 009 cartridge circulator is designed for quiet, efficient operation in higher-head/lower-flow applications for Hydronic heating, Radiant in-floor/panel heating, solar heating, heat recovery and domestic water recirculation systems. Its unique field-serviceable cartridge contains all moving parts. Replacing the cartridge rebuilds the circulator. With no mechanical seal, the self-lubricating, maintenance free design provides unmatched reliability. Available in cast iron or bronze construction.
Specifications
Brand: Taco®
Weight: 9.5lbs
Amperage Rating: 1.40 A
Flow Rate: 10 gpm
Inlet Size: 3/4 in, 1 in, 1-1/4 in, 1-1/2 in Flanged
Mounting Type: Flange
Power Rating: 1/8 hp
Series: 9 Series
Temperature Rating: 240 deg F
Type: Stainless Steel
Voltage Rating: 115 VAC
Bearing Type: Carbon
Frequency Rating: 60 Hz
Maximum Pressure: 150 psi
Outlet Size: 3/4, 1, 1-1/4, 1-1/2 in
Dimensions: 7 in L x 4-1/8 in W x 6-3/8 in H
Motor Speed: 3250 rpm
Phase: 1 ph
Maximum Head: 35 ft
Impeller Type: Non-Metallic
Manufacturer Name: Taco
Includes: Flange Gaskets
Application: Residential and Light Commercial Higher-Head/Lowerflow Water Circulating Applications
Warranty: 3 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: cULus Listed | UL-CUS
Item Features
- Typical uses include hydronic heating, radiant in-floor/panel heating and closed-loop solar heating systems
- The stainless steel 009 can be used in higher-head/lower-flow heat recovery, open-loop solar heating and light commercial domestic water recirculation systems
- The unique replaceable cartridge contains all of the moving parts and allows for easy service, instead of replacing the entire circulator
- Compact, direct-drive, low power consumption design is ideal for high-efficiency jobs
- Universal flange to flange dimensions
- Cast iron or bronze construction
- Aluminum stator housing
- Non metallic impeller
- Ceramic shaft
- Carbon bearings
- EPDM O-ring and gaskets
- Standard high capacity output-compact design
- Quiet, efficient operation
- Unique replaceable cartridge design - Field serviceable
- Self lubricating
- No mechanical seal
- Unmatched reliability - Maintenance free
