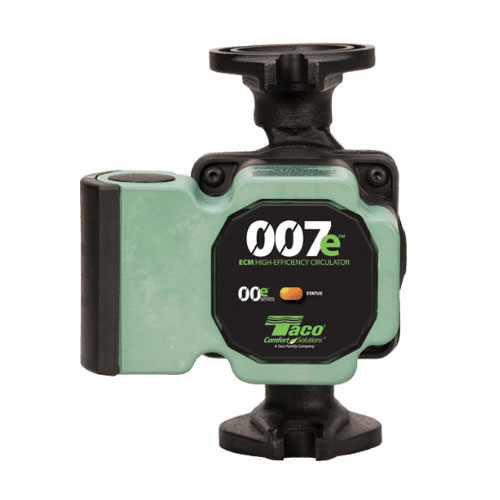

Taco® 007e-2F2 ECM High-Efficiency Circulator, 00e Series, Cast Iron Casing, Standard Flange End Connection, 16 gpm Flow Rate, 115 V, 1 Phase, Domestic
CBPN: 306805
MPN:007e-2F2
DESCRIPTION
Taco® 007e-2F2, Variable Speed Circulator, Cast Iron, Series: 00e, 16 gpm Flow Rate, 10 ft Maximum Head, 1/25 hp Power, 115 V, 0.54 Amps, 60 Hz Frequency, 1 ph, 125 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, Standard 2-Bolt Flange Mounting, 36 to 230 deg F, Carbon Bearing, 6-3/8 in H x 5 in W x 6 in D Dimensions
The Taco 007e-2 is a variable speed, high-efficiency wet rotor circulator with an ECM, permanent magnet motor. Its ECM performance is equivalent to the legendary Taco 007 and ideal for hydronic systems zoned with circulators or zone valves. It reduces power consumption by up to 85% compared to equivalent AC permanent split capacitor circulators, including the Taco 007 model.
Taco® 007e-2F2 ECM High-Efficiency Circulator, 00e Series, Cast Iron Casing, Standard Flange End Connection, 16 gpm Flow Rate, 115 V, 1 Phase, Domestic
CBPN: 306805
MPN:007e-2F2
DESCRIPTION
Taco® 007e-2F2, Variable Speed Circulator, Cast Iron, Series: 00e, 16 gpm Flow Rate, 10 ft Maximum Head, 1/25 hp Power, 115 V, 0.54 Amps, 60 Hz Frequency, 1 ph, 125 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, Standard 2-Bolt Flange Mounting, 36 to 230 deg F, Carbon Bearing, 6-3/8 in H x 5 in W x 6 in D Dimensions
The Taco 007e-2 is a variable speed, high-efficiency wet rotor circulator with an ECM, permanent magnet motor. Its ECM performance is equivalent to the legendary Taco 007 and ideal for hydronic systems zoned with circulators or zone valves. It reduces power consumption by up to 85% compared to equivalent AC permanent split capacitor circulators, including the Taco 007 model.
Specifications
For Water or Maximum of 50% Water/Glycol Solution, Indoor Use Only, Domestic Water Recirculation, Potable Water and Open Loop Systems, Not suitable for chilled water
Item Features
- Standard High Capacity Output-Compact Design
- Quiet, Efficient Operation
- Direct Drive-Low Power Consumption
- Unique Replaceable Cartridge Design-Field Serviceable
- Self Lubricating
- No Mechanical Seal
- Unmatched Reliability-Maintenance Free
- Cast Iron Construction
- 3/4 in, 1 in, 1-1/4 in, 1-1/2 in Flanged Connection Sizes Available
Taco 007E-2F2 Accessories
CBPN:
61213
MPN:
110-251F
CBPN:
25047
MPN:
110-252F
CBPN:
306834
MPN:
110-253F
CBPN:
306835
MPN:
110-254F
CBPN:
307060
MPN:
SF-050S
CBPN:
307062
MPN:
SFL-050T
CBPN:
307063
MPN:
SFL-075S
CBPN:
307064
MPN:
SFL-075T
CBPN:
307065
MPN:
SFL-100S
CBPN:
307066
MPN:
SFL-100T
CBPN:
307067
MPN:
SFL-125S
CBPN:
307068
MPN:
SFL-125T
CBPN:
307069
MPN:
SFL-150S
CBPN:
307070
MPN:
SFL-150T
Taco 007E-2F2 Spare Parts
CBPN:
307122
MPN:
0010-025RP
CBPN:
35845
MPN:
007-007RP
CBPN:
307181
MPN:
198-213RP
