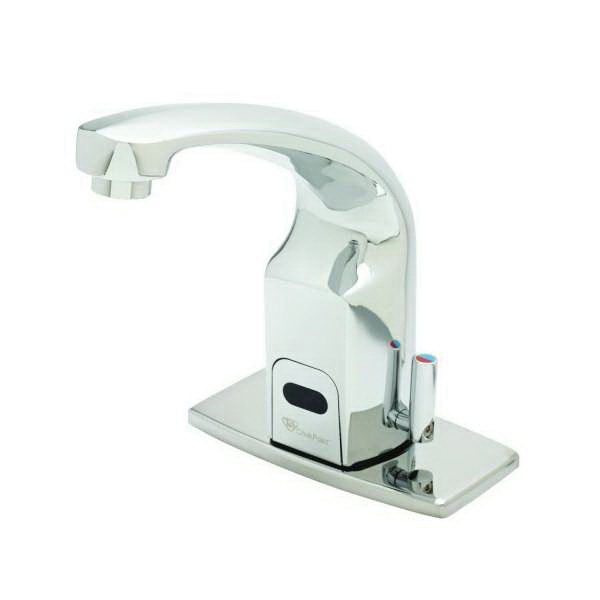

T & S ChekPoint™ EC-3132-4DP Electronic Sensor Faucet, Commercial, 2.2 gpm Flow Rate, 4 in Center, Integral Spout, 3/8 in Compression x 1/2 in NPSM Outlet Hose, Polished Chrome
CBPN: 244700
UPC:671262778336
MPN:EC-3132-4DP
Price:
$1018.40 / EA
Prop 65:
DESCRIPTION
T & S ChekPoint™ Electronic Sensor Faucet, 2.2 gpm Flow Rate, 4 in Center Distance, Integral Spout, 5-1/2 in Spout Reach, 7 in Spout Height, 3/8 in Compression x 1/2 in NPSM Outlet Hose, Side Spray(Y/N): No, 1 Faucet Holes, Spray Pattern: Vandal-Resistant Aerator, 1-1/2 in Maximum Deck Thickness, Deck Mounting, AC/DC Control Module, 6 in W x 2-5/8 in D x 8-1/16 in H Dimensions, Brass, Polished Chrome, Commercial Commercial/Residential
T & S ChekPoint™ EC-3132-4DP Electronic Sensor Faucet, Commercial, 2.2 gpm Flow Rate, 4 in Center, Integral Spout, 3/8 in Compression x 1/2 in NPSM Outlet Hose, Polished Chrome
CBPN: 244700
MPN:EC-3132-4DP
UPC:671262778336
Price:
$1018.40 / EA
Prop 65:
DESCRIPTION
T & S ChekPoint™ Electronic Sensor Faucet, 2.2 gpm Flow Rate, 4 in Center Distance, Integral Spout, 5-1/2 in Spout Reach, 7 in Spout Height, 3/8 in Compression x 1/2 in NPSM Outlet Hose, Side Spray(Y/N): No, 1 Faucet Holes, Spray Pattern: Vandal-Resistant Aerator, 1-1/2 in Maximum Deck Thickness, Deck Mounting, AC/DC Control Module, 6 in W x 2-5/8 in D x 8-1/16 in H Dimensions, Brass, Polished Chrome, Commercial Commercial/Residential
Specifications
Brand: T & S
Weight: 7.95 lbs
Flow Rate: 2.2 gpm
Center Distance: 4 in
Spout Type: Integral
Outlet Hose Connection Size: 3/8 in Compression x 1/2 in NPSM
Finish/Color: Polished Chrome
Side Spray(Y/N): No
Commercial/Residential: Commercial
Dimensions: 6 in W x 2-5/8 in D x 8-1/16 in H
Manufacturer Name: T & S Brass
Material: Brass
Maximum Deck Thickness: 1-1/2 in
Mounting Type: Deck
Number of Faucet Holes: 1
Spout Height: 7 in
Spout Reach: 5-1/2 in
Spray Pattern: Vandal-Resistant Aerator
Valve/Cartridge Type: AC/DC Control Module
Warranty: 3 Years Limited
Standards and Approvals: ASME A112.18.1 | CSA B125.1 | ANSI/ICC A117.1 (ADA) | ANSI A117.1 (ADA) | Taiwan/TAA | NSF/ANSI 61 Section-9 | NSF/ANSI 372 | UL 1951 | ADA Compliant | cULus Listed | cCSAus Listed | Low Lead Compliant | WaterSense® Certified | US Green Building Council Member | PROP65: This product can expose you to chemicals including Lead, Chromium (hexavalent compounds) and Phthalates (DEHP) which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.P65Warnings.ca.gov.
Item Features
- Single hole deck mount faucet with polished chrome plated brass body
- B-0199-08 series 8, 2.2 gpm vandal resistant aerator
- 4 in centerline deck plate with gasket and hardware
- Above deck electronic module with internal flow control switches for adjusting auto time out and shut off delay settings
- Above deck temperature mixing handle
- 19 in flexible stainless steel supply hoses with filter washers
- Check valve adapter with 3/8 in compression connection
- Low battery LED indicator light
- Material - Polished chrome plated brass body and deck plate
- Above deck electronics
- Side manual mixing valve
- Cast spout
