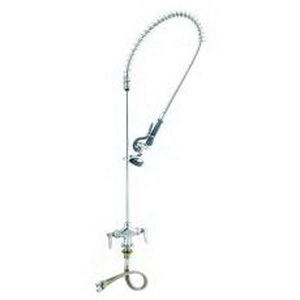

T & S B-0113 Easy-Install Pre-Rinse Unit, 1.15 gpm Flow Rate, Polished Chrome, Domestic
CBPN: 36680
MPN:B-0113
UPC:671262000949
Price:
$576.80 / EA
DESCRIPTION
T & S Pre-Rinse Unit, Easy-Install, 1.15 gpm, 14-1/16 in Spout Reach, 12-9/16 in Spout Height, 18 in Hose, Lever Handle, Side Spray(Y/N): Yes, 1 Faucet Holes, 1-1/2 in Faucet Hole, 1/2 in, NPSM, 1-3/8 in Maximum Deck Thickness, Deck Mount, Quarter-Turn Eterna Compression Valve/Cartridge, 7-9/16 in W, Brass, Polished Chrome, Domestic
Specifications
Brand: T & S
Weight: 13 lbs
Type: Easy-Install
Flow Rate: 1.15 gpm
Finish/Color: Polished Chrome
Side Spray(Y/N): Yes
Connection Size: 1/2 in
Connection Type: NPSM
Dimensions: 7-9/16 in W
Faucet Hole Size: 1-1/2 in
Handle Type: Lever
Hose Size: 18 in
Manufacturer Name: T & S Brass
Material: Brass
Maximum Deck Thickness: 1-3/8 in
Mounting Type: Deck
Number of Faucet Holes: 1
Spout Height: 12-9/16 in
Spout Reach: 14-1/16 in
Valve/Cartridge Type: Quarter-Turn Eterna Compression
Warranty: 3 Years Limited
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASME A112.18.1/CSA B125.1 | ASTM F2324 | BAA/ARRA Certification | California Energy Commission CEC-400 (Plumbing) | EPAct 2005 (PRSV) | NSF/ANSI 61/372
Item Features
- Easy-install riser for quick installation
- 44 in flexible stainless steel hose with heat resistant gray handle and hold down ring
- Quarter turn eterna compression cartridge with spring check to prevent cross flow of water
- Lever handles with color coded indexes
- 18 in flexible stainless steel supply hoses with 1/2 in NPSM / 5/8 in OD compression connections
- 24 in riser
- 20 to 125 psi
- 40 to 140 deg F
- 1.15 gpm at 60 psi
- 2-1/4 in Dia flange
- Polished chrome plated brass body, riser, swivel arm and spray valve body, stainless steel hose and chrome plated metal handles
