Spirax Sarco 80716, FAB-75 Liquid Drain Trap, 2-1/2 in, FNPT End Style, 15.4 in L, 75 psig Operating, Cast Iron
CBPN: 222304
MPN:80716
DESCRIPTION
Spirax Sarco Liquid Drain Trap, 2-1/2 in Nominal, NPT, 15.4 in Length, 75 psig Operating, Cast Iron, 450 deg F Operating, 15.6 in H
The float-operated liquid drain trap discharges continuously in direct response to variations in liquid flow rate, assuring thorough drainage of the system.
Spirax FAB-75 drain traps are double-seated and may not shut tight under no-load conditions. Normally, the liquid load will always be greater than the small residual leakage.
Spirax Sarco 80716, FAB-75 Liquid Drain Trap, 2-1/2 in, FNPT End Style, 15.4 in L, 75 psig Operating, Cast Iron
CBPN: 222304
MPN:80716
DESCRIPTION
Spirax Sarco Liquid Drain Trap, 2-1/2 in Nominal, NPT, 15.4 in Length, 75 psig Operating, Cast Iron, 450 deg F Operating, 15.6 in H
The float-operated liquid drain trap discharges continuously in direct response to variations in liquid flow rate, assuring thorough drainage of the system.
Spirax FAB-75 drain traps are double-seated and may not shut tight under no-load conditions. Normally, the liquid load will always be greater than the small residual leakage.
Specifications
Item Features
- 240000 lb/hr load at maximum operating pressure
- Parallel piping configuration
- Stainless steel valve head and seat; Brass valve housing
- Maximum allowable pressure: 175 psig at 0 to 450 deg F
- Maximum allowable temperature: 125 psig at 0 to 450 deg F
- Available options: gauge glass
Spirax Sarco 80716 Spare Parts
CBPN:
15351
MPN:
58173

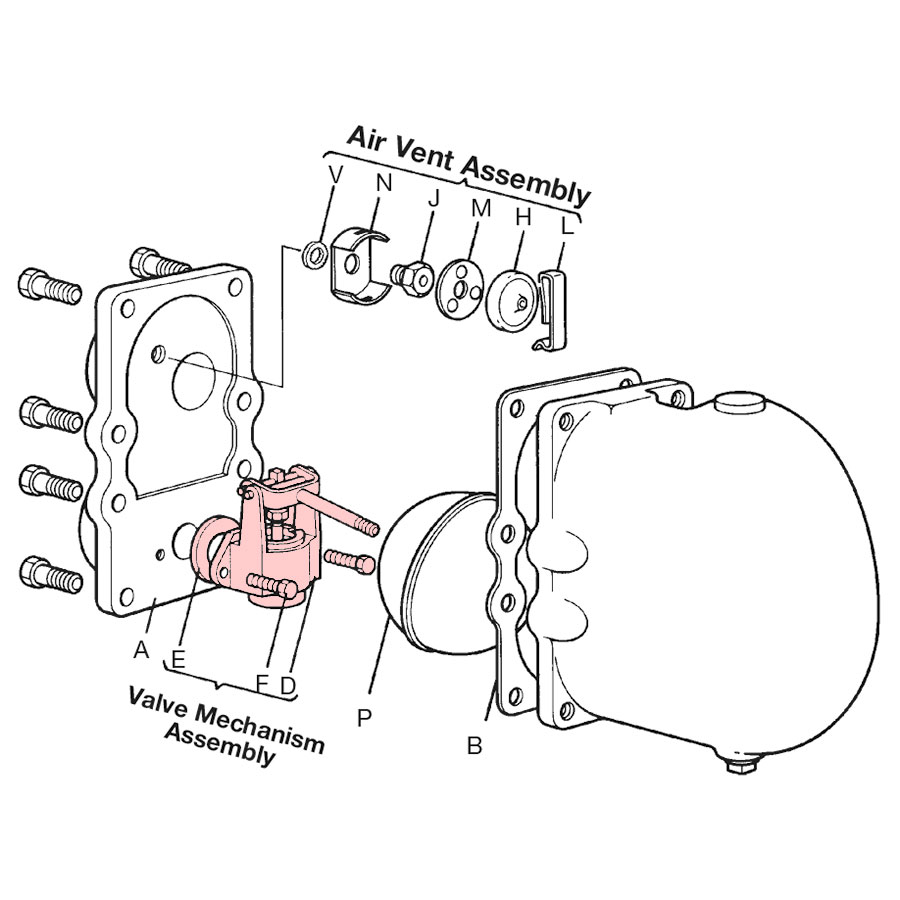

CBPN:
16728
MPN:
58177

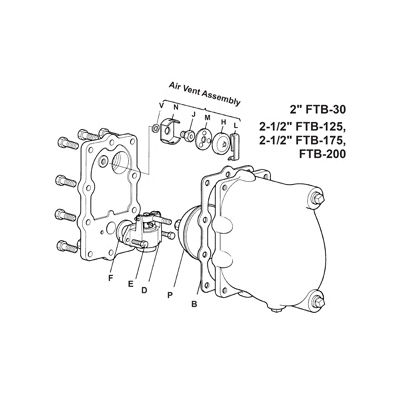

CBPN:
21928
MPN:
58160
