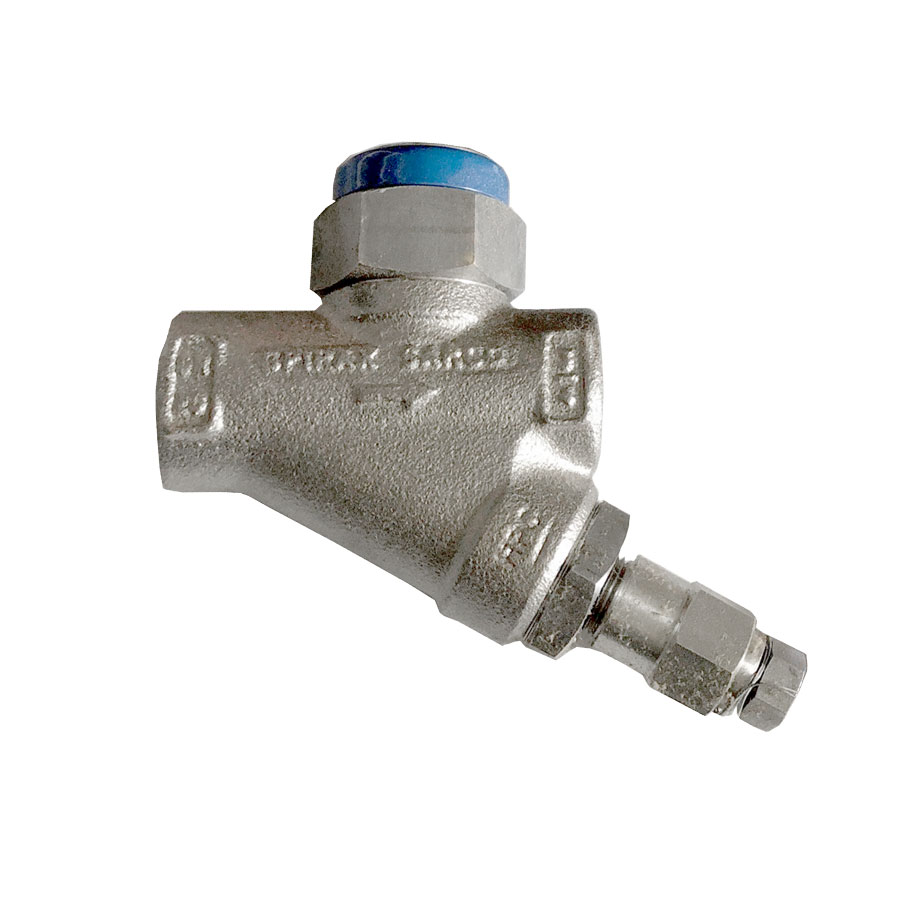

Spirax Sarco 73647, TD42L Low Capacity Thermo-Dynamic Steam Trap With Blowdown Valve, 1/2 in, FNPT, 752 deg F, 600 psig, Stainless Steel
CBPN: 99587
MPN:73647
Price:
$858.13 / EA
DESCRIPTION
Spirax Sarco Thermo-Dynamic Steam Trap, Low Capacity, 1/2 in Nominal, FNPT, 600 psig, Stainless Steel, ENP, Cool Blue, 752 deg F
The Thermodynamic steam trap cycles periodically to discharge condensate very near to steam temperature. It is unaffected by waterhammer or superheat.
Spirax Sarco 73647, TD42L Low Capacity Thermo-Dynamic Steam Trap With Blowdown Valve, 1/2 in, FNPT, 752 deg F, 600 psig, Stainless Steel
CBPN: 99587
MPN:73647
Price:
$858.13 / EA
DESCRIPTION
Spirax Sarco Thermo-Dynamic Steam Trap, Low Capacity, 1/2 in Nominal, FNPT, 600 psig, Stainless Steel, ENP, Cool Blue, 752 deg F
The Thermodynamic steam trap cycles periodically to discharge condensate very near to steam temperature. It is unaffected by waterhammer or superheat.
Specifications
Brand: Spirax Sarco
Weight: 2.4 lbs
Nominal Size: 1/2 in
End Style: FNPT
Material: Stainless Steel
Max Operating Pressure: 600 psig
Max Allowable Pressure: 609 psig/up to 752 deg F
Max Allowable Temperature: 752 deg F/up to 609 psig
Color: Cool Blue
Finish: ENP
Manufacturer Name: Spirax-Sarco Inc
Series: TD42L
Type: Low Capacity
Application: Steam main drainage, Tracer lines, Process equipment, Outdoor installations subject to freezing
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM A743 Grade CA40F Body
Item Features
- Maximum allowable pressure: 914 psig up to 248 deg F
- Maximum allowable temperature: 752 deg F at 0 to 609 psig
- Horizontal installation
Spirax Sarco 73647 Spare Parts
CBPN:
74534
MPN:
0162780
In Stock: 272
Price:
$128.0 / EA
CBPN:
97813
MPN:
71899
Check Availability
Price:
$91.81 / EA
CBPN:
74533
MPN:
1534080
In Stock: 32
Price:
$91.81 / EA
Spirax Sarco 0680797 Cap Assembly, For Use With: Model TD42L 1/2 and 1 in Thermo-Dynamic® Steam Trap
CBPN:
181532
MPN:
0680797
Check Availability
Price:
$255.0 / EA
CBPN:
95672
MPN:
73438
Check Availability
Price:
$346.0 / EA
