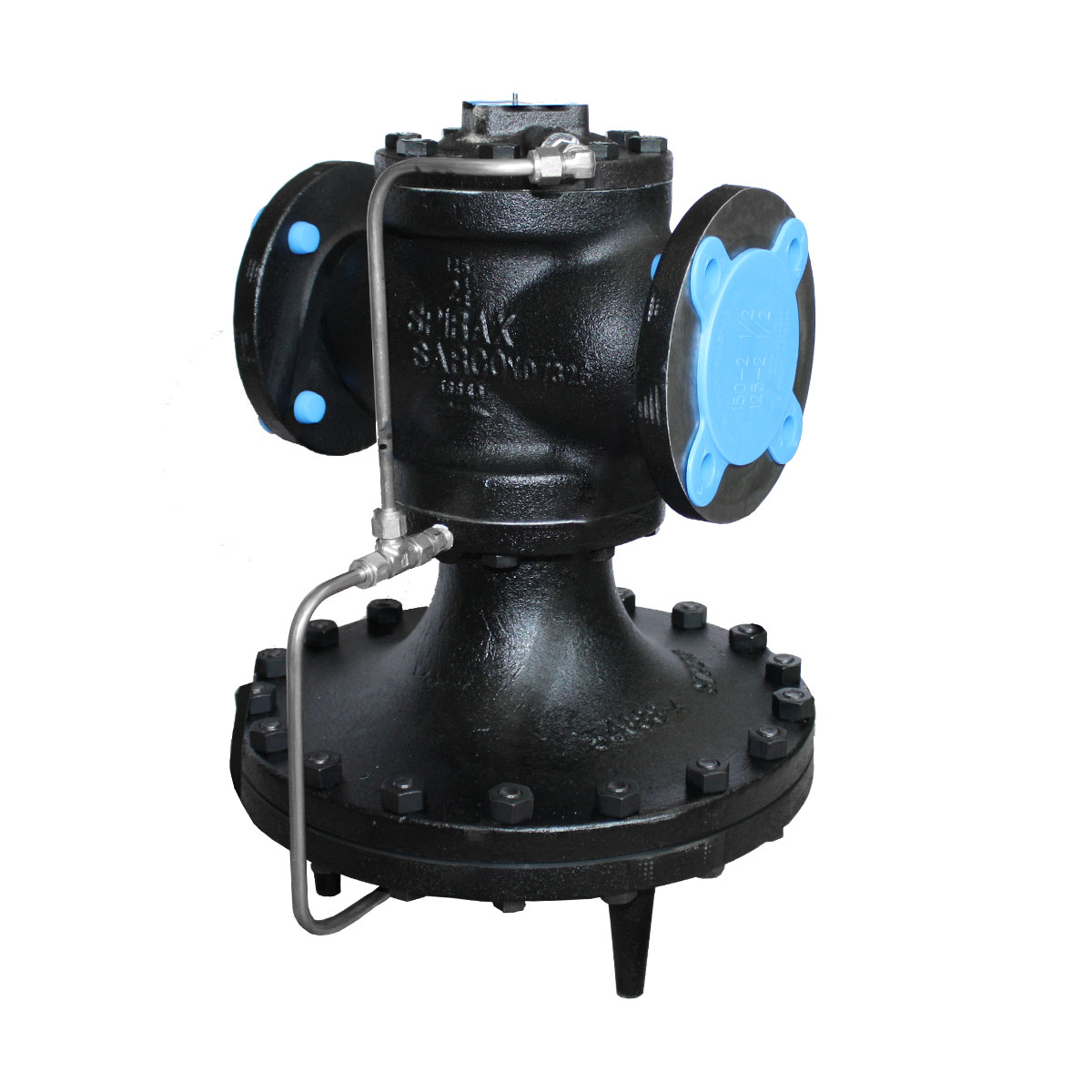

Spirax Sarco 71447, 25P Pilot Operated Pressure Reducing Main Valve, 3 in, ANSI 250 Flange, 300 psig, 450 deg F
CBPN:222371
MPN:71447
Price:
$5578.36 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
DESCRIPTION
Spirax Sarco Pressure Reducing Main Valve, Pilot Operated, 3 in Nominal, ANSI 250 Flange, 300 psig, 450 deg F, Cast Iron Body, Media: Steam, 28.4 in H
The 25P is a self-actuated pilot-operated pressure regulator. Downstream pressure is fed back through an external sensing line to the pressure pilot, which adjusts the opening of the main valve so as to maintain the set pressure. The main valve can close tight for ANSI/FCI 70-2 Class IV shut off when steam is not required.
Spirax Sarco 71447, 25P Pilot Operated Pressure Reducing Main Valve, 3 in, ANSI 250 Flange, 300 psig, 450 deg F
CBPN:222371
MPN:71447
Price:
$5578.36 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
DESCRIPTION
Spirax Sarco Pressure Reducing Main Valve, Pilot Operated, 3 in Nominal, ANSI 250 Flange, 300 psig, 450 deg F, Cast Iron Body, Media: Steam, 28.4 in H
The 25P is a self-actuated pilot-operated pressure regulator. Downstream pressure is fed back through an external sensing line to the pressure pilot, which adjusts the opening of the main valve so as to maintain the set pressure. The main valve can close tight for ANSI/FCI 70-2 Class IV shut off when steam is not required.
Specifications
Brand: Spirax Sarco
Weight: 188 lbs
Nominal Size: 3 in
End Style: ANSI 250 Flange
Pressure Rating: 300 psig
Temperature Rating: 450 deg F
Body Material: Cast Iron
Dimensions: 28.4 in H
Manufacturer Name: Spirax-Sarco Inc
Media: Steam
Series: 25P
Type: Pilot Operated
Warranty: 2 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM A 126 Class B Body
Item Features
- Combination of pilots allow for different types of control in one regulator
- Fatigue-tested diaphragm designed without a piston to prevent danger of sticking
- Stainless steel internals for excellent durability and resistance to corrosion
- Maximum allowable pressure: 250 psig at 0 to 450 deg F
- Maximum allowable temperature: 450 deg F at 0 to 250 psig
- Patented self scrubbing guide for long, trouble-free service
- Accurate control of pressure with choice of color coded springs
- Horizontal installation
- 13.6 in inlet to outlet
- Stainless steel transmission tubing
