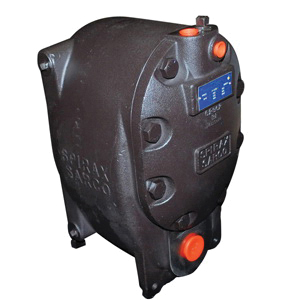

Spirax Sarco 69375, PPEC Low Profile Pressure Powered Pump With Check Valve, 316 Stainless Steel Body, 1-1/2 in Inlet x 3/4 in Outlet, FNPT/ANSI 150 Flanged Connection
CBPN: 222174
MPN:69375
DESCRIPTION
Spirax Sarco Pressure Powered Pump, Low Profile, Series: PPEC, 30 gpm Flow Rate, 1-1/2 in Inlet, 3/4 in Outlet, Socket Welded Connection, 125 psig Operating Maximum, Stainless Steel Float, 316 Stainless Steel Body, 17.1 in L x 19.6 in H Dimensions, Domestic/Import: Domestic
Spirax Sarco Pressure Powered Pump™ is a non-electric pump which transfers high temperature condensate or other liquids from a low point, low pressure or vacuum space to an area of higher pressure or elevation. This self-contained unit uses steam, compressed air or any other suitable pressurized gas as the pumping force.
Spirax Sarco 69375, PPEC Low Profile Pressure Powered Pump With Check Valve, 316 Stainless Steel Body, 1-1/2 in Inlet x 3/4 in Outlet, FNPT/ANSI 150 Flanged Connection
CBPN: 222174
MPN:69375
DESCRIPTION
Spirax Sarco Pressure Powered Pump, Low Profile, Series: PPEC, 30 gpm Flow Rate, 1-1/2 in Inlet, 3/4 in Outlet, Socket Welded Connection, 125 psig Operating Maximum, Stainless Steel Float, 316 Stainless Steel Body, 17.1 in L x 19.6 in H Dimensions, Domestic/Import: Domestic
Spirax Sarco Pressure Powered Pump™ is a non-electric pump which transfers high temperature condensate or other liquids from a low point, low pressure or vacuum space to an area of higher pressure or elevation. This self-contained unit uses steam, compressed air or any other suitable pressurized gas as the pumping force.
Specifications
Item Features
- 4 gal nominal pump discharge per cycle
- 220 psig at 0 to 400 deg F maximum allowable pressure
- 850 deg F at 180 psig maximum allowable temperature
- 5 psig minimum motive differential pressure
- 0.89 to 0.8 specific gravity
- Stainless steel internal
- Stainless steel check valve
- Graphite cover gasket
- 3 lb of steam/1000 lb of liquid pumped air consumption
- 100 SCF/1000 lb of liquid pumped air consumption
- For increased service life, operate pump with motive pressure 15 to 20 psig above pump back pressure
Resources
Spirax Sarco 69375 Spare Parts
CBPN:
7768
MPN:
62999
CBPN:
7762
MPN:
66956
CBPN:
54710
MPN:
70938
CBPN:
253525
MPN:
76352F
CBPN:
7766
MPN:
33069F
CBPN:
7764
MPN:
66413
CBPN:
104709
MPN:
71071
CBPN:
7765
MPN:
64299
CBPN:
89673
MPN:
62993F
CBPN:
54834
MPN:
69900
