Spirax Sarco UTD52H Steam Trap

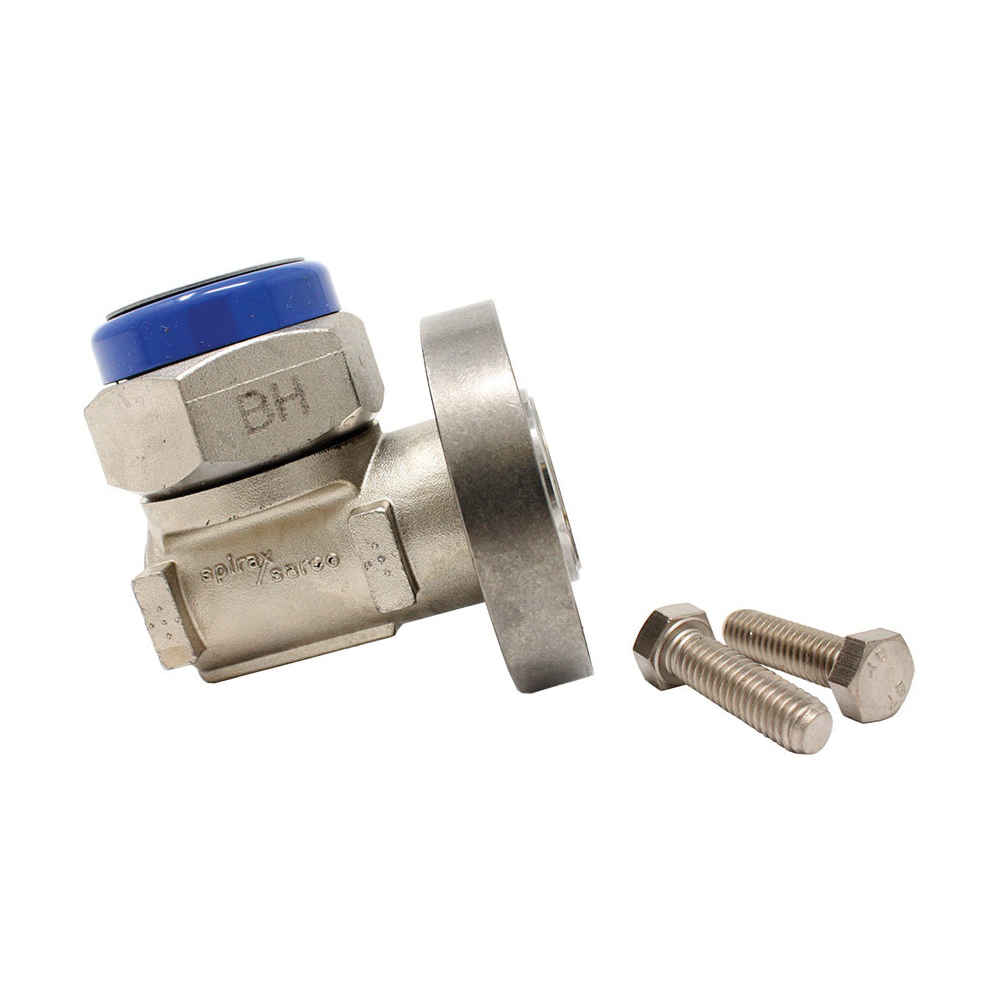

Spirax Sarco 68568C, UTD52H Universal High Capacity Thermo-Dynamic Steam Trap, 750 deg F, 600 psig, Stainless Steel

CBPN:54024

MPN:68568C

Price:
$441.35 / EA

DESCRIPTION

Spirax Sarco Thermo-Dynamic Steam Trap, Universal High Capacity, 600 psig, Stainless Steel, Cool Blue, 750 deg F

Steam trap shall be supplied with a pipeline connector which, once installed, remains in the line permanently. Trap shall be attached to the connector by two bolts to enable simple and rapid installation and replacement. The connection is designed to allow installation on pipework that is vertical, horizontal, or any angle in between. Operation shall be on/off discharge with tight shut off and no bleed or "controlled" leak, with back pressures up to 80% of inlet pressure. When specified, the connector shall be provided with integral "Y" pattern strainer with or without integral blowdown valve, standard or left hand pattern. The trap itself shall be Thermo-Dynamic® disc type of stainless steel construction and integral seat design with hardened disc and seating surface. Cap to have integral ceramic insulator with stainless steel cover.

Spirax Sarco 68568C, UTD52H Universal High Capacity Thermo-Dynamic Steam Trap, 750 deg F, 600 psig, Stainless Steel

CBPN:54024

MPN:68568C

Price:
$441.35 / EA

Spirax Sarco logo

DESCRIPTION

Spirax Sarco Thermo-Dynamic Steam Trap, Universal High Capacity, 600 psig, Stainless Steel, Cool Blue, 750 deg F

Steam trap shall be supplied with a pipeline connector which, once installed, remains in the line permanently. Trap shall be attached to the connector by two bolts to enable simple and rapid installation and replacement. The connection is designed to allow installation on pipework that is vertical, horizontal, or any angle in between. Operation shall be on/off discharge with tight shut off and no bleed or "controlled" leak, with back pressures up to 80% of inlet pressure. When specified, the connector shall be provided with integral "Y" pattern strainer with or without integral blowdown valve, standard or left hand pattern. The trap itself shall be Thermo-Dynamic® disc type of stainless steel construction and integral seat design with hardened disc and seating surface. Cap to have integral ceramic insulator with stainless steel cover.

Specifications

BrandSpirax Sarco
MaterialStainless Steel
SeriesUTD52H
TypeUniversal High Capacity
ColorCool Blue
Domestic/ImportDomestic
Pressure Rating600 psig
Temperature Rating750 deg F
Weight2.8 lbs
Standards ApprovalsASTM A743 Grade CA40F Body

Item Features

  • Maximum back pressure should not exceed 80% of the upstream pressure
  • Maximum allowable pressure: 600 psig at 750 deg F
  • Maximum allowable temperature: 750 deg F at 600 psig
  • Designed for a maximum cold hydraulic test pressure of 1080 psig
  • Horizontal or vertical installation
