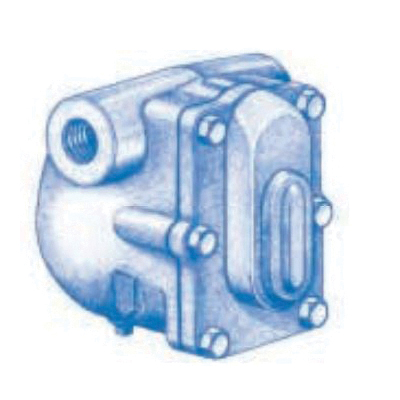

Spirax Sarco 67402, FAI-200 Liquid Drain Trap, 3/4 in, FNPT End Style, 6-1/2 in L, 200 psi Operating, Cast Iron
CBPN: 54511
MPN:67402
Price:
$574.21 / EA
DESCRIPTION
Spirax Sarco Liquid Drain Trap, 3/4 in Nominal, NPT, 6-1/2 in Length, 200 psi Operating, Cast Iron, 450 deg F Operating, 5.8 in H
The float-operated liquid drain trap discharges continuously in direct response to variations in liquid flow rate, assuring thorough drainage of the system.
Spirax Sarco 67402, FAI-200 Liquid Drain Trap, 3/4 in, FNPT End Style, 6-1/2 in L, 200 psi Operating, Cast Iron
CBPN: 54511
MPN:67402
Price:
$574.21 / EA
DESCRIPTION
Spirax Sarco Liquid Drain Trap, 3/4 in Nominal, NPT, 6-1/2 in Length, 200 psi Operating, Cast Iron, 450 deg F Operating, 5.8 in H
The float-operated liquid drain trap discharges continuously in direct response to variations in liquid flow rate, assuring thorough drainage of the system.
Specifications
Brand: Spirax Sarco
Weight: 11.3 lbs
Nominal Size: 3/4 in
End Style: FNPT
Length: 6-1/2 in
Pressure Rating: 200 psi Operating
Material: Cast Iron
Dimensions: 5.8 in H
Manufacturer Name: Spirax-Sarco Inc
Series: FAI-200
Temperature Rating: 450 deg F Operating
Application: Receiver and air line drainage, Draining a liquid from its vapor phase
Standards and Approvals: ASTM A126 Class B Body
Item Features
- 200 psig at 0 to 450 deg F Maximum allowable pressure
- 450 deg F at 0 to 200 psig Maximum allowable temperature
- Inline vertical or horizontal piping configuration
- Stainless steel internals

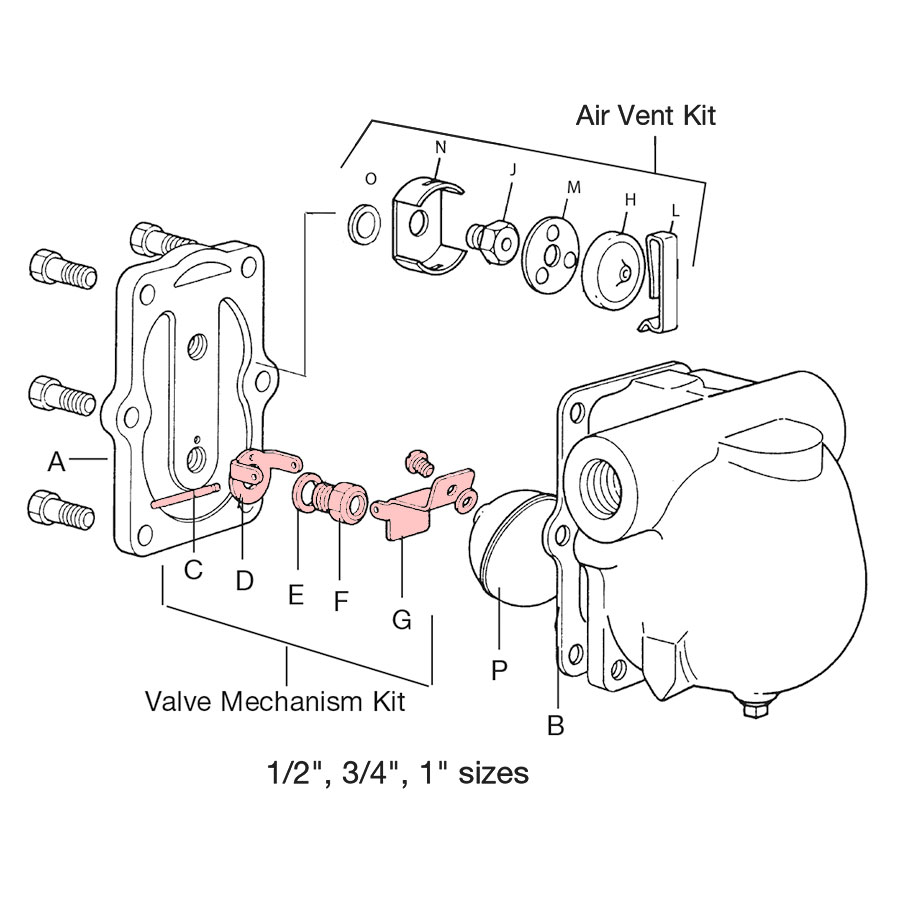

Spirax Sarco 67402 Spare Parts
CBPN:
50723
MPN:
67048
In Stock: 5
Price:
$408.00 / EA
CBPN:
7690
MPN:
67049
In Stock: 6
Price:
$121.00 / EA
CBPN:
216155
MPN:
71942
Check Availability
Price:
$505.00 / EA
CBPN:
7683
MPN:
55447
In Stock: 32
Price:
$271.00 / EA
