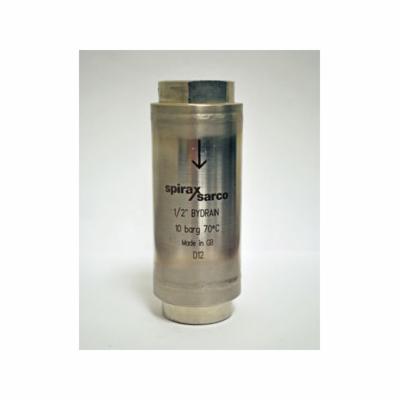

Spirax Sarco 6701102 Bydrain Liquid Expansion Trap, 1/2 in, NPT, 158 deg F, 145 psig, Stainless Steel
CBPN:188518
MPN:6701102
Price:
$747.11 / EA
DESCRIPTION
Spirax Sarco Liquid Expansion Trap, Bydrain, 1/2 in Nominal, NPT, 145 psig, Stainless Steel, 158 deg F, 1.7 in W x 4.3 in H
The Spirax Sarco bydrain freeze protection liquid expansion trap is made of stainless steel. It has been specifically designed for protecting condensate systems from frost damage. This fixed temperature discharge trap continuously monitors the temperature in the pipes; the trap is firmly closed at 45 deg F, but as the temperature of the liquid cools to 36 deg F the trap opens, discharging any liquid in the pipe.
Spirax Sarco 6701102 Bydrain Liquid Expansion Trap, 1/2 in, NPT, 158 deg F, 145 psig, Stainless Steel
CBPN:188518
MPN:6701102
Price:
$747.11 / EA
DESCRIPTION
Spirax Sarco Liquid Expansion Trap, Bydrain, 1/2 in Nominal, NPT, 145 psig, Stainless Steel, 158 deg F, 1.7 in W x 4.3 in H
The Spirax Sarco bydrain freeze protection liquid expansion trap is made of stainless steel. It has been specifically designed for protecting condensate systems from frost damage. This fixed temperature discharge trap continuously monitors the temperature in the pipes; the trap is firmly closed at 45 deg F, but as the temperature of the liquid cools to 36 deg F the trap opens, discharging any liquid in the pipe.
Specifications
Brand: Spirax Sarco
Weight: 1.4lbs
End Style: FNPT
Material: Stainless Steel
Nominal Size: 1/2 in
Type: Bydrain
Dimensions: 1.7 in W x 4.3 in H
Max Operating Pressure: 145 psig
Max Allowable Pressure: 600 psig
Max Allowable Temperature: 842 deg F
Manufacturer Name: Spirax-Sarco Inc
Application: Freeze protection for float and thermostatic steam traps, coils, tanks, water lines on docks, eyewash stations, safety showers, tracing condensate manifolds, tracing steam manifolds, condensate return lines, pressure powered pumps, electric pumps, and flash tanks
Standards and Approvals: AISI 316L Body | EN 10204 3.1.B | Complies with the Requirements of the European Pressure Equipment Directive 97/23/EC | PN50 Class 300 to ANSI B 16.34
