Spirax Sarco 66910, CI-250 Wye Strainer With #20 Mesh 304 Stainless Steel Screen, 2 in, 11.6 in OAL, ANSI 250 Flanged Connection, Graphite
CBPN: 160141
MPN:66910
Price:
$758.00 / EA
DESCRIPTION
Spirax Sarco Wye Strainer, 2 in Nominal, 11.6 in Overall Length, Flanged, 1-1/4 in NPT Blow-Off, Graphite Softgoods, Cast Iron Body
Spirax Sarco 66910, CI-250 Wye Strainer With #20 Mesh 304 Stainless Steel Screen, 2 in, 11.6 in OAL, ANSI 250 Flanged Connection, Graphite
CBPN: 160141
MPN:66910
Price:
$758.00 / EA
DESCRIPTION
Spirax Sarco Wye Strainer, 2 in Nominal, 11.6 in Overall Length, Flanged, 1-1/4 in NPT Blow-Off, Graphite Softgoods, Cast Iron Body
Specifications
Brand: Spirax Sarco
Weight: 30 lbs
Nominal Size: 2 in
Body Material: Cast Iron
Connection Type: Flanged
Pressure Class: 250 lb
Softgoods Material: Graphite
Overall Length: 11.6 in
Blow-Off Size: 1-1/4 in NPT
Manufacturer Name: Spirax-Sarco Inc
Series: CI-250
Standards and Approvals: ANSI 250 | ASTM A-126 Class B
Item Features
- High efficiency steam strainers for better quality steam
- Designed to remove solid particles from the steam supply
- Reduce levels of contamination
- Maintain quality of end product
- 280 psig maximum saturated steam pressure
- 500 psig at -20 to 150 deg F maximum allowable pressure
- 450 deg F at 0 to 250 psi maximum allowable temperature
- Vertical down or horizontal piping configuration
- Graphite cap gasket
Resources

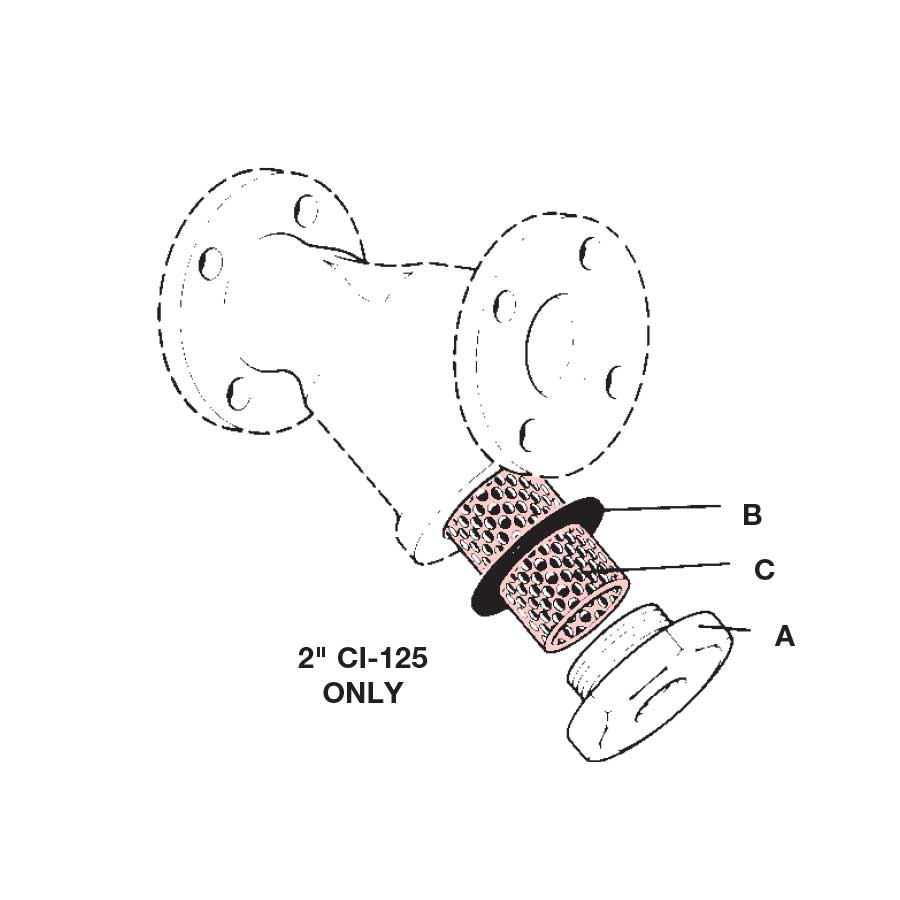

Spirax Sarco 66910 Spare Parts
CBPN:
239651
MPN:
63960F
Check Availability
Price:
$142.00 / EA
CBPN:
45497
MPN:
66904F
Check Availability
Price:
$253.00 / EA
