Spirax Sarco 64209, B12HS-30 Inverted Bucket Steam Trap With Integral Strainer and Bimetal Air Vent, 3/4 in, FNPT, 450 deg F, 30 psig, Cast Iron
CBPN: 222277
MPN:64209
Price:
$491.4 / EA
DESCRIPTION
Spirax Sarco Inverted Bucket Steam Trap, Series: B Series, 3/4 in Nominal, FNPT, 5 in Length, 30 psig, Cast Iron, 450 deg F
The trap contains an inverted bucket mechanism which responds to the difference in density between steam and condensate. The discharge action is cyclic. Condensate is discharged close to steam temperature.
Spirax Sarco 64209, B12HS-30 Inverted Bucket Steam Trap With Integral Strainer and Bimetal Air Vent, 3/4 in, FNPT, 450 deg F, 30 psig, Cast Iron
CBPN: 222277
MPN:64209
Price:
$491.4 / EA
DESCRIPTION
Spirax Sarco Inverted Bucket Steam Trap, Series: B Series, 3/4 in Nominal, FNPT, 5 in Length, 30 psig, Cast Iron, 450 deg F
The trap contains an inverted bucket mechanism which responds to the difference in density between steam and condensate. The discharge action is cyclic. Condensate is discharged close to steam temperature.
Specifications
Brand: Spirax Sarco
Weight: 6.3 lbs
Nominal Size: 3/4 in
End Style: FNPT
Material: Cast Iron
Max Operating Pressure: 30 psig
Max Allowable Pressure: 250 psig/up to 450 deg F
Max Allowable Temperature: 450 deg F/0-250 psig
Length: 5 in
Manufacturer Name: Spirax-Sarco Inc
Series: B Series
Application: Steam main drip stations, Laundry equipment, Industrial dryers and Storage tanks
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM A126 Class B Body
Item Features
- Maximum allowable pressure: 250 psig at up to 450 deg F
- Maximum allowable temperature: 450 deg F at 0 to 250 psig
- The optional bimetal air vent allows rapid air removal on cold start-up and the vent closes at approximately 200 deg F, and will remain closed during normal operation of the trap
- In-line horizontal piping configuration
- Stainless steel bucket
Resources

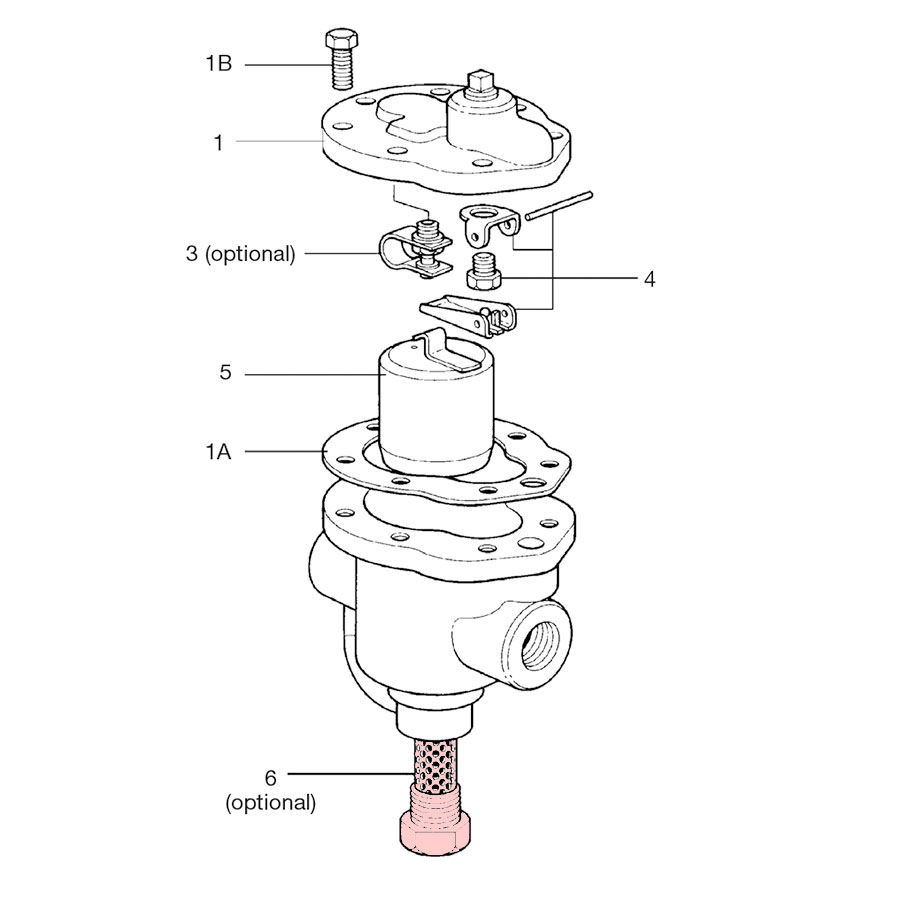

Spirax Sarco 64209 Spare Parts
CBPN:
12794
MPN:
55553
In Stock: 8
Price:
$159.0 / EA
CBPN:
7712
MPN:
54720
Check Availability
Price:
$170.0 / EA
CBPN:
7717
MPN:
55563
In Stock: 10
Price:
$188.0 / EA
CBPN:
7295
MPN:
67769
Check Availability
Price:
$196.0 / EA
CBPN:
14455
MPN:
67771
Check Availability
Price:
$342.0 / EA
CBPN:
7384
MPN:
55458
Check Availability
Price:
$177.0 / EA
CBPN:
7710
MPN:
55543
In Stock: 131
Price:
$85.0 / EA
