Spirax Sarco 64164, B1H-250 Inverted Bucket Steam Trap, 3/4 in, FNPT, 450 deg F, 250 psi, Cast Iron
CBPN: 9905
MPN:64164
Price:
$328.51 / EA
DESCRIPTION
Spirax Sarco Inverted Bucket Steam Trap, Series: B Series, 3/4 in Nominal, FNPT, 5 in Length, 250 psi, Cast Iron, 450 deg F
The trap contains an inverted bucket mechanism which responds to the difference in density between steam and condensate, the discharge action is cyclic. Condensate is discharged close to steam temperature.
Spirax Sarco 64164, B1H-250 Inverted Bucket Steam Trap, 3/4 in, FNPT, 450 deg F, 250 psi, Cast Iron
CBPN: 9905
MPN:64164
Price:
$328.51 / EA
DESCRIPTION
Spirax Sarco Inverted Bucket Steam Trap, Series: B Series, 3/4 in Nominal, FNPT, 5 in Length, 250 psi, Cast Iron, 450 deg F
The trap contains an inverted bucket mechanism which responds to the difference in density between steam and condensate, the discharge action is cyclic. Condensate is discharged close to steam temperature.
Specifications
Brand: Spirax Sarco
Weight: 6.3 lbs
Nominal Size: 3/4 in
End Style: FNPT
Material: Cast Iron
Max Operating Pressure: 250 psig
Max Allowable Pressure: 250 psig/up to 450 deg F
Max Allowable Temperature: 450 deg F/0-250 psig
Length: 5 in
Manufacturer Name: Spirax-Sarco Inc
Series: B Series
Application: For Steam main drip stations, laundry equipment, industrial dryers and storage tanks
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM A126 Class B Body
Item Features
- 250 psig at 450 deg F Maximum allowable pressure
- 450 deg F at 0 to 250 psig Maximum allowable temperature
- Inline horizontal piping configuration

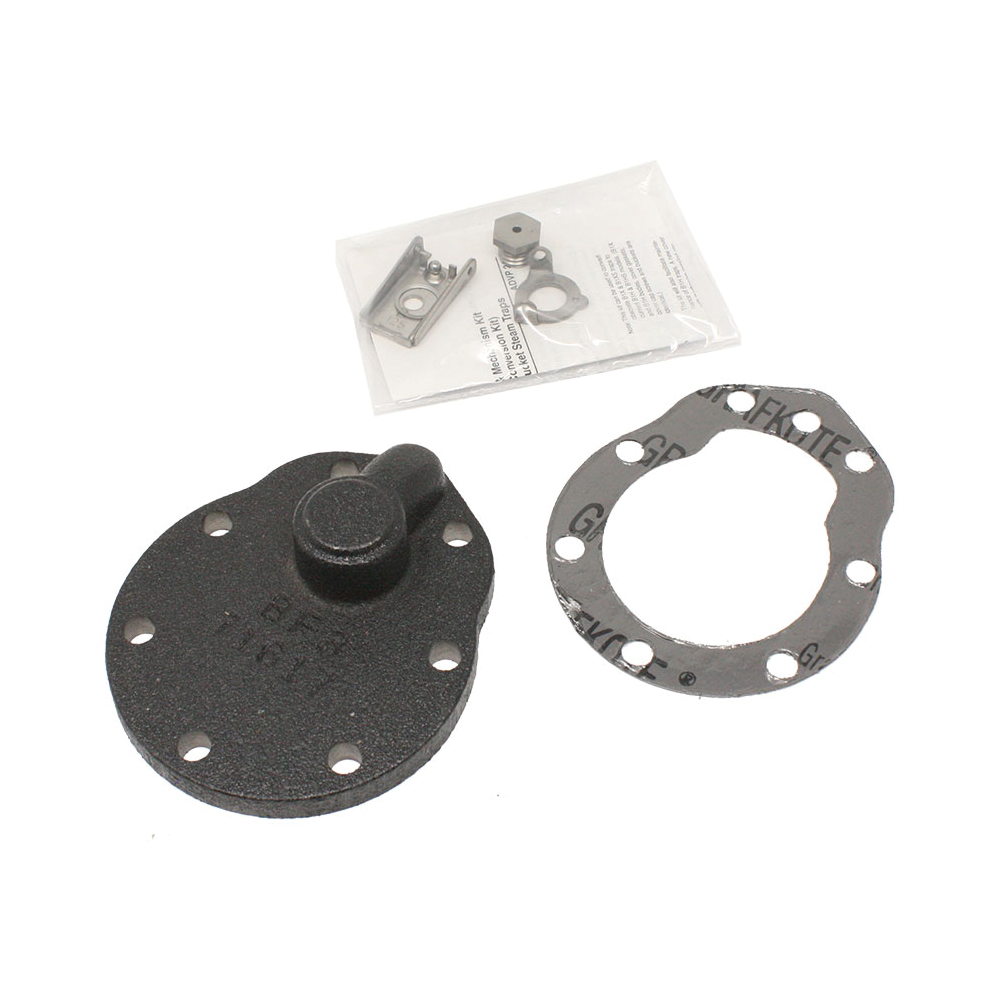

Spirax Sarco 64164 Spare Parts
