Spirax Sarco B1H Inverted Bucket Steam Trap

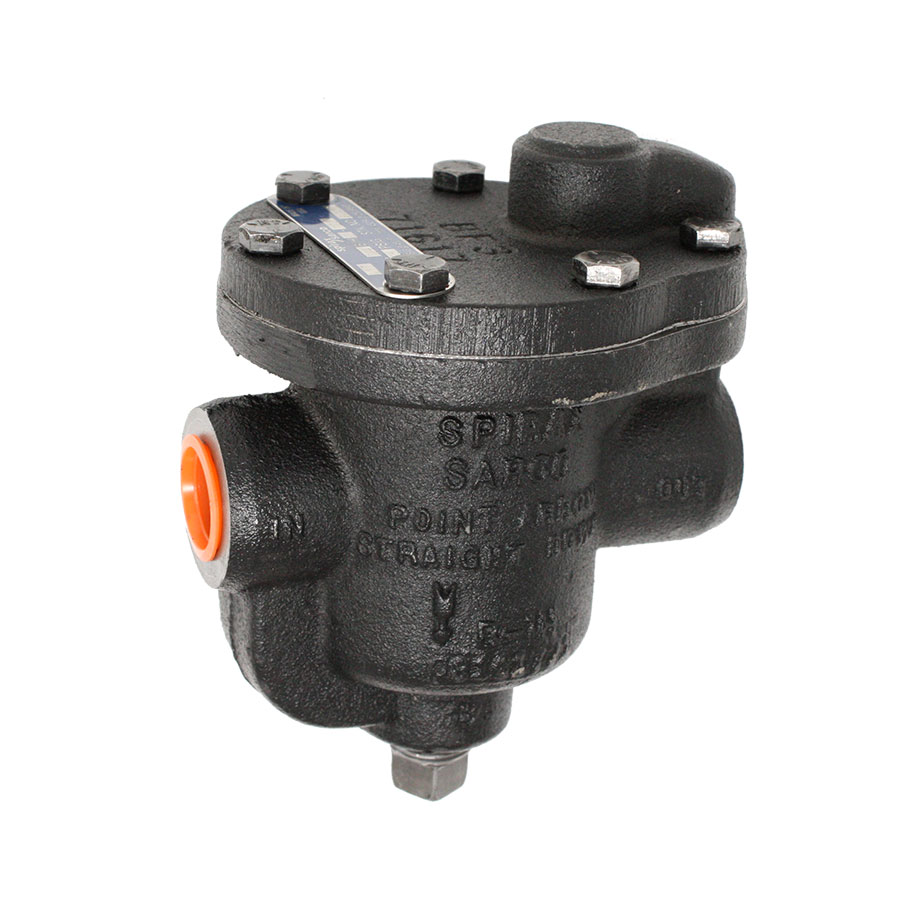

Spirax Sarco 64162, B1H-125 Inverted Bucket Steam Trap, 3/4 in, FNPT, 450 deg F, 125 psi, Cast Iron

CBPN:7502

MPN:64162

Price:
$208.39 / EA

DESCRIPTION

Spirax Sarco Inverted Bucket Steam Trap, Series: B Series, 3/4 in Nominal, FNPT, 5 in Length, 125 psi, Cast Iron, 450 deg F

The trap contains an inverted bucket mechanism which responds to the difference in density between steam and condensate, the discharge action is cyclic. Condensate is discharged close to steam temperature.

Spirax Sarco 64162, B1H-125 Inverted Bucket Steam Trap, 3/4 in, FNPT, 450 deg F, 125 psi, Cast Iron

CBPN:7502

MPN:64162

Price:
$208.39 / EA

Spirax Sarco logo

DESCRIPTION

Spirax Sarco Inverted Bucket Steam Trap, Series: B Series, 3/4 in Nominal, FNPT, 5 in Length, 125 psi, Cast Iron, 450 deg F

The trap contains an inverted bucket mechanism which responds to the difference in density between steam and condensate, the discharge action is cyclic. Condensate is discharged close to steam temperature.

Specifications

BrandSpirax Sarco
End StyleFNPT
Length5 in
MaterialCast Iron
Nominal Size3/4 in
SeriesB Series
Domestic/ImportDomestic
Max Operating Pressure125 psig
Max Allowable Pressure250 psig/up to 450 deg F
Max Allowable Temperature450 deg F/0-250 psig
ApplicationFor Steam main drip stations, laundry equipment, industrial dryers and storage tanks
Country of OriginUS
Manufacturer NameSpirax-Sarco Inc
Standard ApprovalsASTM A126 Class B Body
Weight6.2lbs

Item Features

  • 250 psig at 450 deg F Maximum allowable pressure
  • 450 deg F at 0 to 250 psig Maximum allowable temperature
  • Inline horizontal piping configuration
  • https://youtu.be/nn1pfrjRXP4
