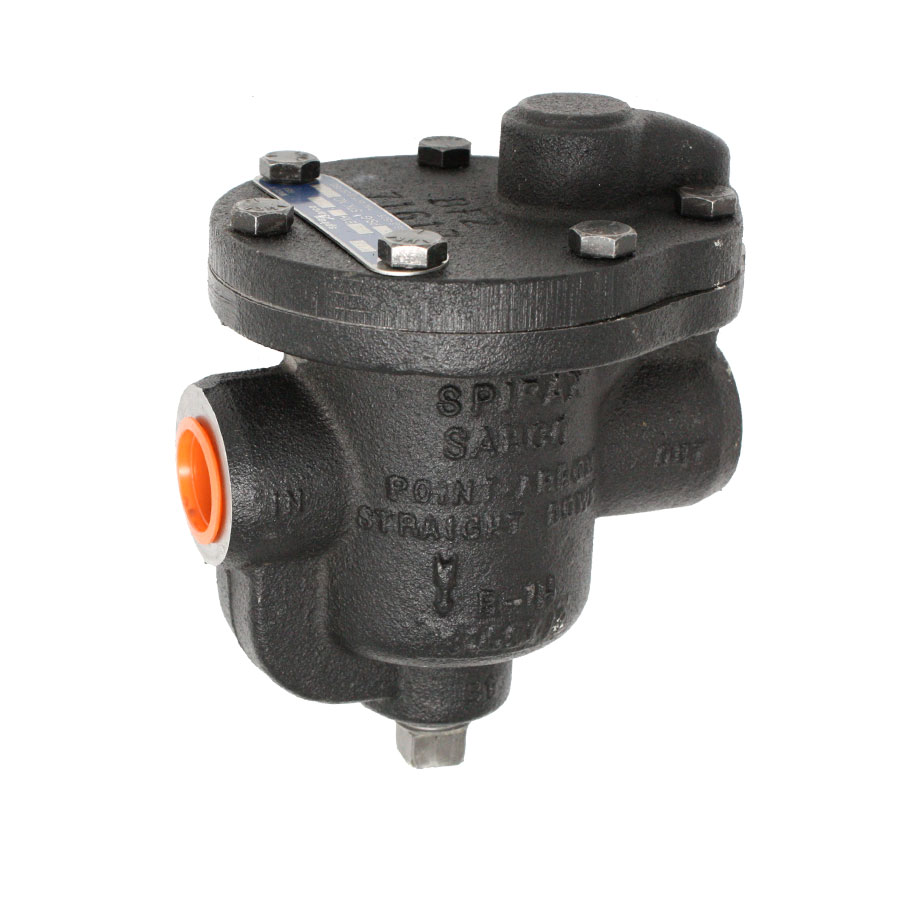

Spirax Sarco 64159, B1H-15 Inverted Bucket Steam Trap, 3/4 in, FNPT, 450 deg F, 15 psi, Cast Iron
CBPN:7286
MPN:64159
Price:
$215.67 / EA
DESCRIPTION
Spirax Sarco Inverted Bucket Steam Trap, Series: B Series, 3/4 in Nominal, FNPT, 5 in Length, 15 psi, Cast Iron, 450 deg F
The trap contains an inverted bucket mechanism which responds to the difference in density between steam and condensate, the discharge action is cyclic. Condensate is discharged close ]to steam temperature.
Spirax Sarco 64159, B1H-15 Inverted Bucket Steam Trap, 3/4 in, FNPT, 450 deg F, 15 psi, Cast Iron
CBPN:7286
MPN:64159
Price:
$215.67 / EA
DESCRIPTION
Spirax Sarco Inverted Bucket Steam Trap, Series: B Series, 3/4 in Nominal, FNPT, 5 in Length, 15 psi, Cast Iron, 450 deg F
The trap contains an inverted bucket mechanism which responds to the difference in density between steam and condensate, the discharge action is cyclic. Condensate is discharged close ]to steam temperature.
Specifications
Brand: Spirax Sarco
Weight: 6.3 lbs
Nominal Size: 3/4 in
End Style: FNPT
Material: Cast Iron
Max Operating Pressure: 15 psig
Max Allowable Pressure: 250 psig/up to 450 deg F
Max Allowable Temperature: 450 deg F/0-250 psig
Length: 5 in
Manufacturer Name: Spirax-Sarco Inc
Series: B Series
Application: For Steam main drip stations, laundry equipment, industrial dryers and storage tanks
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM A126 Class B Body
Item Features
- 250 psig at 450 deg F Maximum allowable pressure
- 450 deg F at 0 to 250 psig Maximum allowable temperature
- Inline horizontal piping configuration
