Spirax B2 Inverted Bucket Steam Trap

Spirax Sarco 62762, B2-125 Inverted Bucket Steam Trap, 3/4 in, FNPT, 450 deg F, 125 psi, Cast Iron

CBPN:16835

MPN:62762

Price:
$452.27 / EA

DESCRIPTION

Spirax Sarco Inverted Bucket Steam Trap, Series: B Series, 3/4 in Nominal, FNPT, 6.6 in Length, 125 psi, Cast Iron, 450 deg F

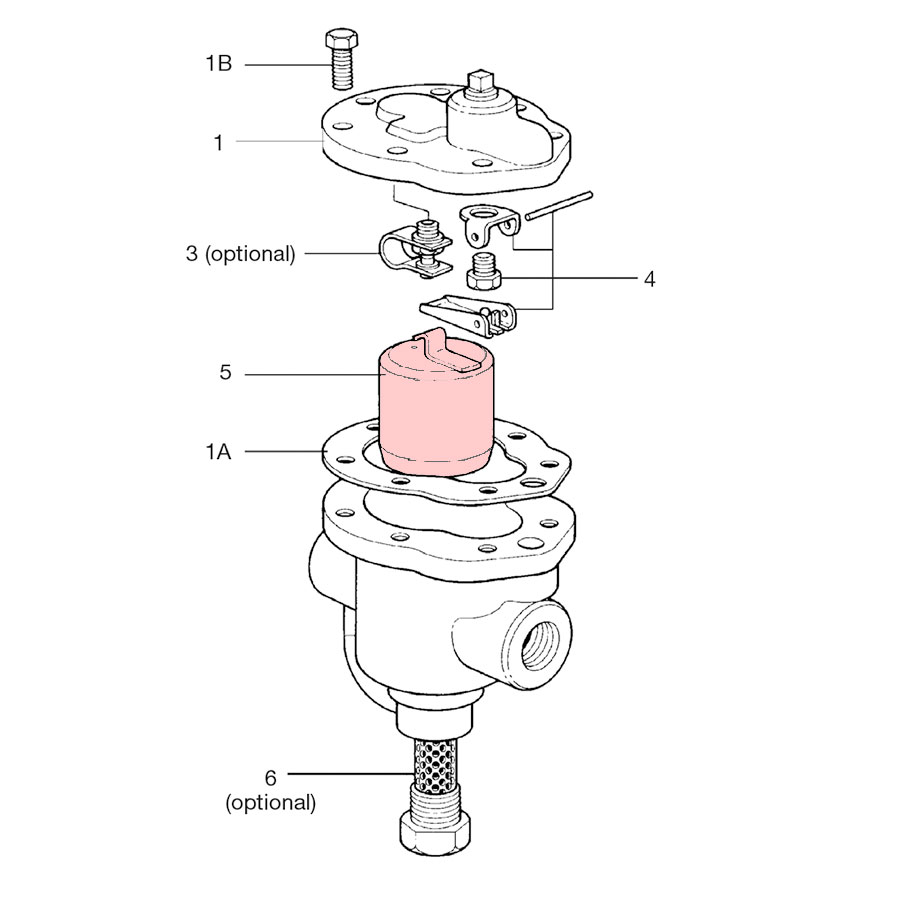

The trap contains an inverted bucket mechanism which responds to the difference in density between steam and condensate. The discharge action is cyclic. Condensate is discharged close to steam temperature.

Spirax Sarco 62762, B2-125 Inverted Bucket Steam Trap, 3/4 in, FNPT, 450 deg F, 125 psi, Cast Iron

CBPN:16835

MPN:62762

Price:
$452.27 / EA

Spirax Sarco logo

DESCRIPTION

Spirax Sarco Inverted Bucket Steam Trap, Series: B Series, 3/4 in Nominal, FNPT, 6.6 in Length, 125 psi, Cast Iron, 450 deg F

The trap contains an inverted bucket mechanism which responds to the difference in density between steam and condensate. The discharge action is cyclic. Condensate is discharged close to steam temperature.

Specifications

BrandSpirax Sarco
Weight12.5 lbs
Nominal Size3/4 in
End StyleFNPT
MaterialCast Iron
Max Operating Pressure125 psig
Max Allowable Pressure250 psig/up to 450 deg F
Max Allowable Temperature450 deg F/0-250 psig
Length6.6 in
Manufacturer NameSpirax-Sarco Inc
SeriesB Series
ApplicationFor Steam main drip stations, laundry equipment, industrial dryers and storage tanks
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsASTM A126 Class B Body

Item Features

  • 250 psig at 450 deg F Maximum allowable pressure
  • 450 deg F at 0 to 250 psig Maximum allowable temperature
  • Inline horizontal piping configuration
