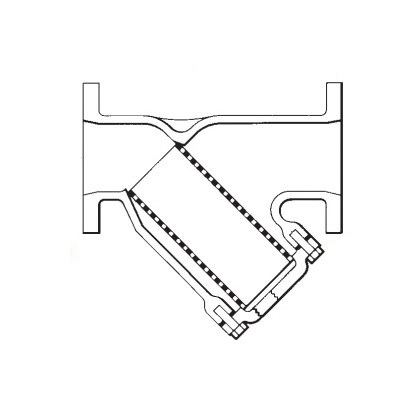

Spirax Sarco 62632 CI-125 Wye Strainer With 1/16 in Perforated 304 Stainless Steel Screen, 8 in Nominal, 21.6 in OAL, ANSI 125 Flanged Connection, Graphite Softgoods
CBPN: 105735
MPN:62632

Spirax Sarco 62632 has been discontinued by the manufacturer.
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
DESCRIPTION
Spirax Sarco Wye Strainer, 8 in Nominal, 21.6 in Overall Length, Flanged, 2 in NPT Blow-Off, Graphite, Cast Iron Body
Spirax Sarco 62632 CI-125 Wye Strainer With 1/16 in Perforated 304 Stainless Steel Screen, 8 in Nominal, 21.6 in OAL, ANSI 125 Flanged Connection, Graphite Softgoods
CBPN: 105735
MPN:62632

Spirax Sarco 62632 has been discontinued by the manufacturer.
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
Specifications
Brand: Spirax Sarco
Weight: 296 lbs
Nominal Size: 8 in
Body Material: Cast Iron
Connection Type: Flanged
Pressure Class: 125 lb
Softgoods Material: Graphite
Overall Length: 21.6 in
Blow-Off Size: 2 in NPT
Manufacturer Name: Spirax-Sarco Inc
Standards and Approvals: ANSI 125 Connection | ASTM A-126 Class B
Item Features
- High efficiency steam strainers for better quality steam
- Designed to remove solid particles from the steam supply
- Reduce levels of contamination
- Maintain quality of end product
- Maximum saturated steam pressure: 125 psig
- Maximum allowable temperature: 450 deg F at 0 to 125 psig
- Maximum allowable pressure: 200 psig at -20 to 150 deg F
- Vertical down or horizontal piping configuration
- Graphite cap gasket
Resources
Spirax Sarco 62632 Spare Parts

Spirax Sarco 62671 Standard Screen, For Use With: CI-125 8 in Y-Strainer, 1/16 in Perforated Screen, Stainless Steel, Steam Applications
CBPN:
144962
MPN:
62671
Check Availability
Price:
$2996.00 / EA

Spirax Sarco 62672, Standard Screen, For Use With: CI-125 8 in Y-Strainer, 1/16 in Perforated Screen, Stainless Steel, Water applications
CBPN:
119832
MPN:
62672
Check Availability
Price:
$2996.00 / EA
CBPN:
100906
MPN:
64334F
Check Availability
Price:
$331.00 / EA
