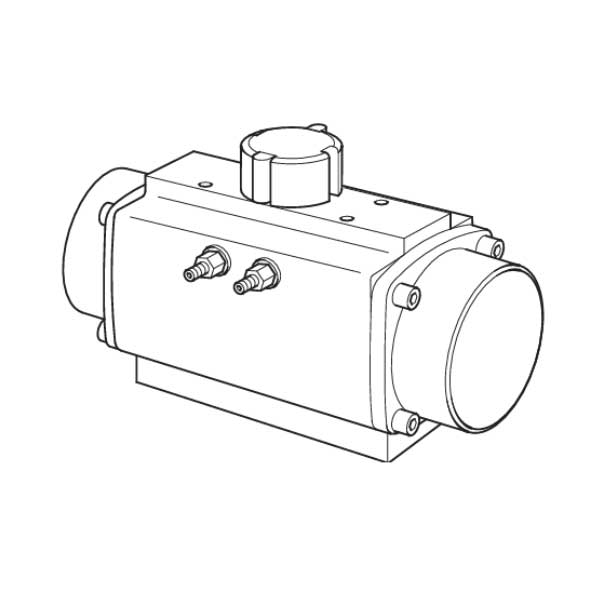

Spirax Sarco 6232919 BVA300, BVA325S/8 Pneumatic Actuator, 258 mm W x 122 mm D x 147 mm H Actuator, Aluminum Body
CBPN:270868
MPN:6232919
Price:
$1202.11 / EA
DESCRIPTION
Spirax Sarco Pneumatic Actuator, Series: BVA300, 258 mm W x 122 mm D x 147 mm H Actuator, Spring Return Valve Design, 0.4 s Opening/0.47 s Closing Timing, 110/220 VAC, 24 VAC/VDC Supply, 3 to 8 bar Pressure, Solenoid Electrical Connections, -30 to 100 deg C, Aluminum Body, For Use With: M10Vi/M10Si/M10Ti/M10ECFi4/M10Hi/M10HTi Series Ball Valves, Hard Anodized
The BVA300 series are pneumatic rotary actuators which automate Spirax Sarco ball valves in a wide range of industrial applications. BVA300 actuators are provided with bi-directional travel stops that allow a rotation of 90 deg +/-5 deg. Linkage is made with the new BVL_X kits with extended stem.
Spirax Sarco 6232919 BVA300, BVA325S/8 Pneumatic Actuator, 258 mm W x 122 mm D x 147 mm H Actuator, Aluminum Body
CBPN:270868
MPN:6232919
Price:
$1202.11 / EA
DESCRIPTION
Spirax Sarco Pneumatic Actuator, Series: BVA300, 258 mm W x 122 mm D x 147 mm H Actuator, Spring Return Valve Design, 0.4 s Opening/0.47 s Closing Timing, 110/220 VAC, 24 VAC/VDC Supply, 3 to 8 bar Pressure, Solenoid Electrical Connections, -30 to 100 deg C, Aluminum Body, For Use With: M10Vi/M10Si/M10Ti/M10ECFi4/M10Hi/M10HTi Series Ball Valves, Hard Anodized
The BVA300 series are pneumatic rotary actuators which automate Spirax Sarco ball valves in a wide range of industrial applications. BVA300 actuators are provided with bi-directional travel stops that allow a rotation of 90 deg +/-5 deg. Linkage is made with the new BVL_X kits with extended stem.
Specifications
Brand: Spirax Sarco
Weight: 11lbs
Body Material: Aluminum
Series: BVA300
Temperature Rating: -30 to 100 deg C
Finish: Hard Anodized
Pressure Rating: 3 to 8 bar
Suitable For Use With: M10Vi/M10Si/M10Ti/M10ECFi4/M10Hi/M10HTi Series Ball Valves
Actuator Size: 258 mm W x 122 mm D x 147 mm H
Electrical Connections: Solenoid
Manufacturer Name: Spirax-Sarco Inc
Power Supply: 110/220 VAC, 24 VAC/VDC
Timing: 0.4 s Opening/0.47 s Closing
Valve Design: Spring Return
Standards and Approvals: CE Certified | Directive 94/9/CE ATEX Classification Group II Cat 2 | EN 15714-3 | European Pressure Equipment Directive 97/23/EC | Ex II2GDc | Machines Directive 89/392/CEE
