Spirax Sarco 61887, F-150V Liquid Drain Trap, 1/2 in, Socket Weld, 6.1 in L, 1500 psig, 304 Stainless Steel
CBPN: 239470
MPN:61887
Price:
$1337.70 / EA
DESCRIPTION
Spirax Sarco Liquid Drain Trap, Series: F-150V, 1/2 in Nominal, Socket Welded End Style, 6.1 in Length, 1500 psig Pressure, 304 Stainless Steel, 750 deg F, 5.3 in H Dimensions, Domestic/Import: Domestic
The F-150V and F-300V Liquid Drain Traps are compact units with vertical top in/bottom out flow pattern. The in-line design allows for simple servicing of the internal parts without removal from the pipeline.
Spirax Sarco 61887, F-150V Liquid Drain Trap, 1/2 in, Socket Weld, 6.1 in L, 1500 psig, 304 Stainless Steel
CBPN: 239470
MPN:61887
Price:
$1337.70 / EA
DESCRIPTION
Spirax Sarco Liquid Drain Trap, Series: F-150V, 1/2 in Nominal, Socket Welded End Style, 6.1 in Length, 1500 psig Pressure, 304 Stainless Steel, 750 deg F, 5.3 in H Dimensions, Domestic/Import: Domestic
The F-150V and F-300V Liquid Drain Traps are compact units with vertical top in/bottom out flow pattern. The in-line design allows for simple servicing of the internal parts without removal from the pipeline.
Specifications
Brand: Spirax Sarco
Weight: 6 lbs
Nominal Size: 1/2 in
End Style: Socket Welded
Length: 6.1 in
Pressure Rating: 1500 psig
Material: 304 Stainless Steel
Dimensions: 5.3 in H
Manufacturer Name: Spirax-Sarco Inc
Series: F-150V
Temperature Rating: 750 deg F
Application: Receiver and air line drainage, draining a liquid from its vapor phase
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ANSI B16.11 Connection
Item Features
- 1250 lb/hr load at maximum operating pressure
- In-line vertical piping configuration
- Stainless steel internals
- Maximum allowable pressure: 450 psig at 0 to 750 deg F
- Maximum allowable temperature: 750 deg F at 0 to 450 psig
Resources

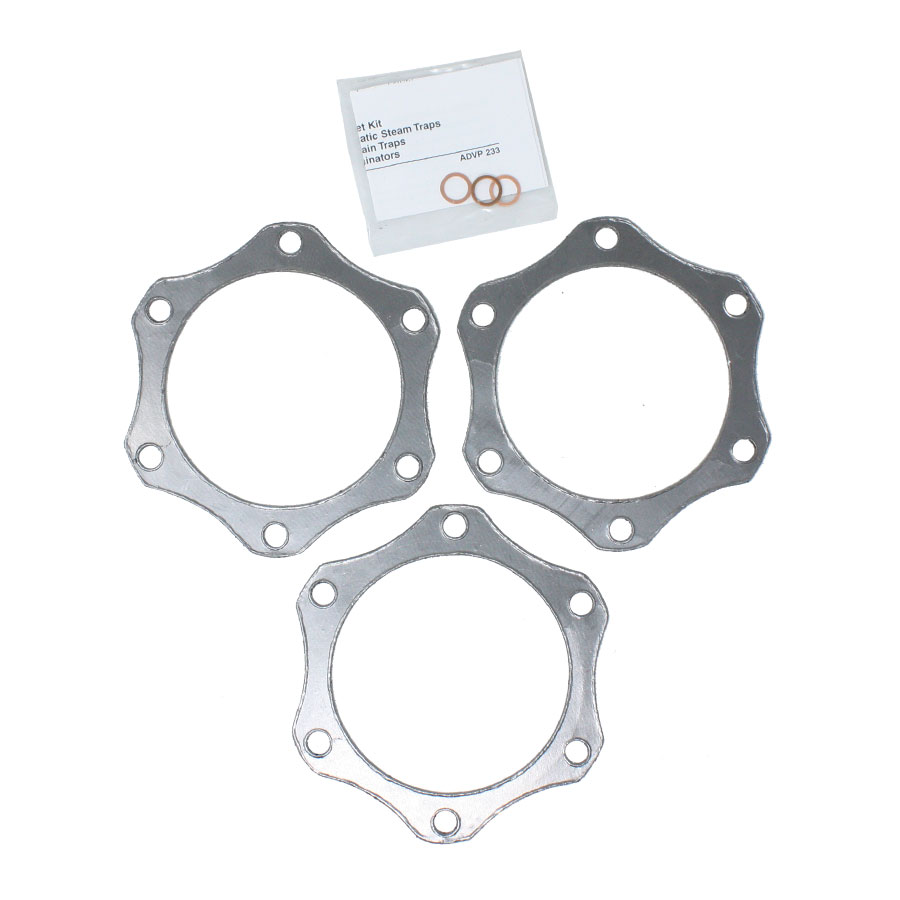

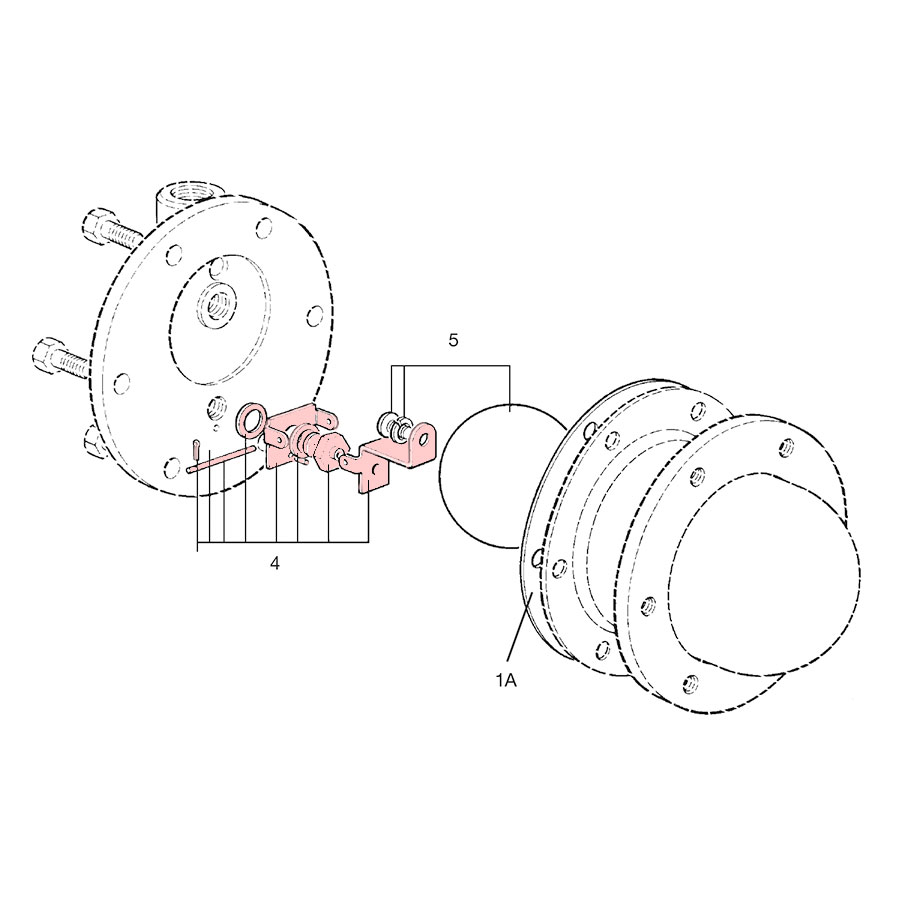

Spirax Sarco 61887 Spare Parts
CBPN:
59522
MPN:
66576
Check Availability
Price:
$132.00 / EA
CBPN:
44225
MPN:
63353
Check Availability
Price:
$694.00 / EA
CBPN:
7683
MPN:
55447
In Stock: 21
Price:
$271.00 / EA
