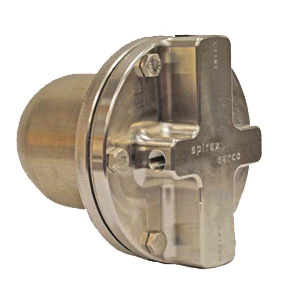

Spirax Sarco 61886, F-300V Liquid Drain Trap, 1/2 in, FNPT End Style, 6.1 in L, 300 psig, 304 Stainless Steel
CBPN: 176080
MPN:61886
Price:
$1411.41 / EA
DESCRIPTION
Spirax Sarco Liquid Drain Trap, 1/2 in Nominal, NPT, 6.1 in Length, 300 psig, 304 Stainless Steel, 750 deg F, 5.3 in H
The F-150V and F-300V Liquid Drain Traps are compact units with vertical top in/bottom out flow pattern. The in-line design allows for simple servicing of the internal parts without removal from the pipeline.
Spirax Sarco 61886, F-300V Liquid Drain Trap, 1/2 in, FNPT End Style, 6.1 in L, 300 psig, 304 Stainless Steel
CBPN: 176080
MPN:61886
Price:
$1411.41 / EA
DESCRIPTION
Spirax Sarco Liquid Drain Trap, 1/2 in Nominal, NPT, 6.1 in Length, 300 psig, 304 Stainless Steel, 750 deg F, 5.3 in H
The F-150V and F-300V Liquid Drain Traps are compact units with vertical top in/bottom out flow pattern. The in-line design allows for simple servicing of the internal parts without removal from the pipeline.
Specifications
Brand: Spirax Sarco
Weight: 6 lbs
Nominal Size: 1/2 in
End Style: FNPT
Length: 6.1 in
Pressure Rating: 300 psig
Material: 304 Stainless Steel
Dimensions: 5.3 in H
Manufacturer Name: Spirax-Sarco Inc
Series: F-300V
Temperature Rating: 750 deg F
Application: Receiver and air line drainage, draining a liquid from its vapor phase
Domestic/Import: Domestic
Country of Origin: US
Item Features
- 920 lb/hr load at maximum operating pressure
- In-line vertical piping configuration
- Stainless steel internals
- Maximum allowable pressure: 450 psig at 0 to 750 deg F
- Maximum allowable temperature: 750 deg F at 0 to 450 psig
Resources

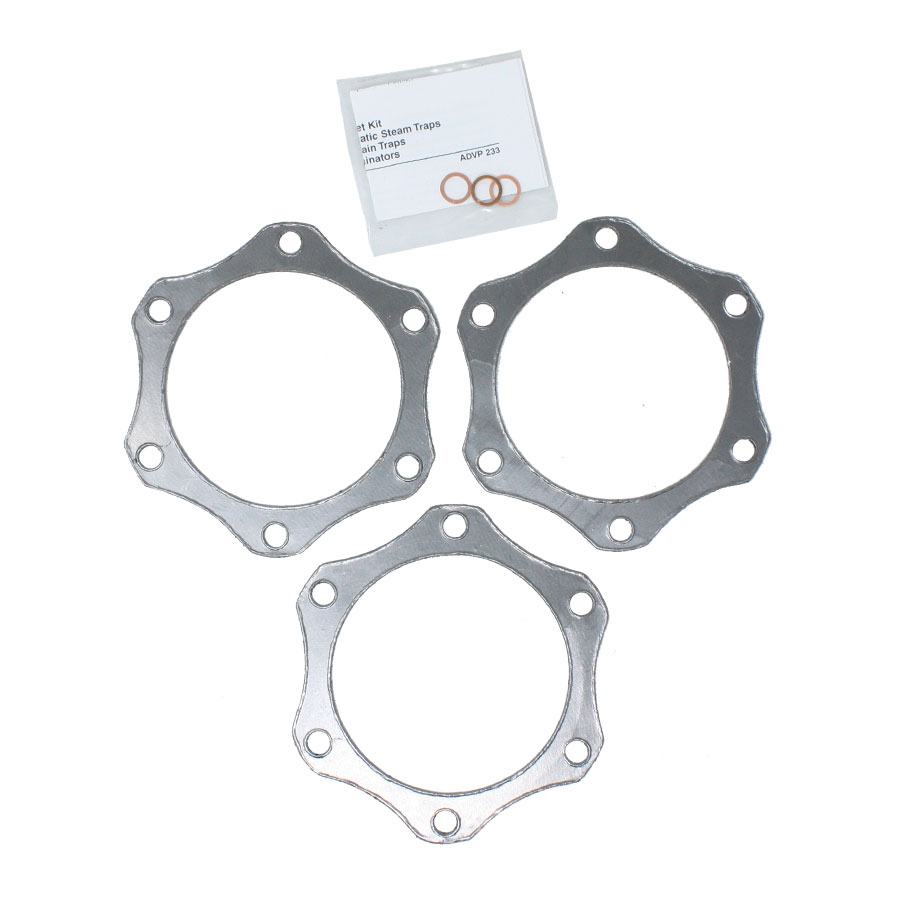

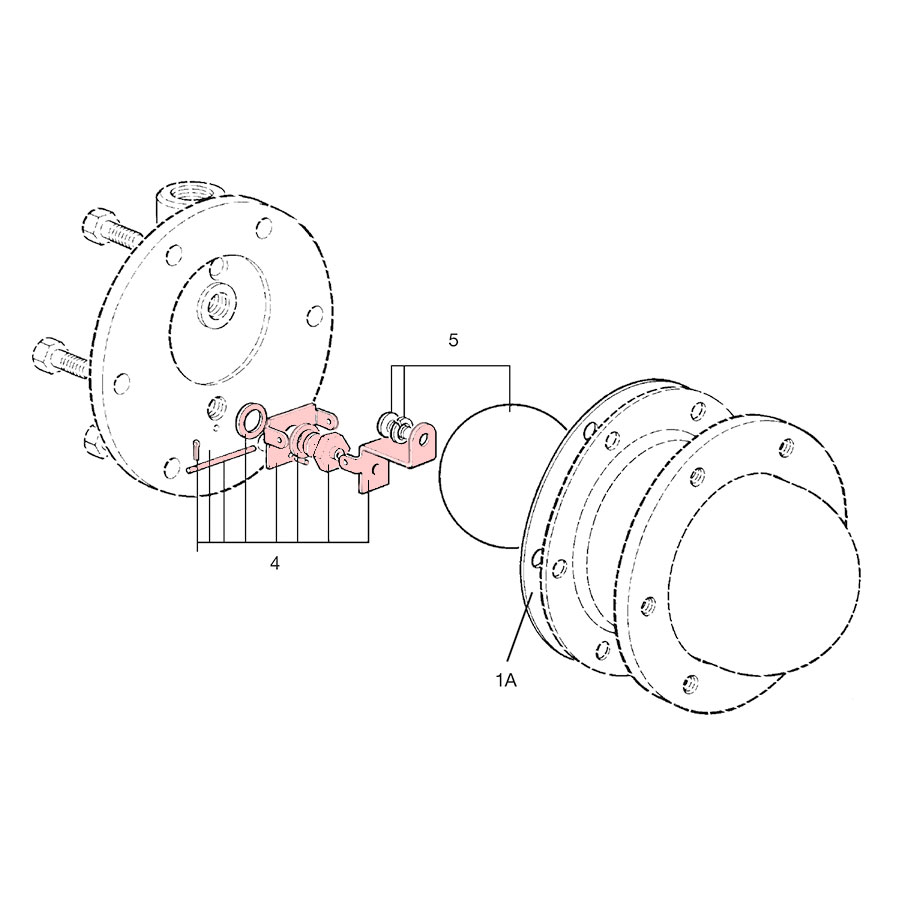

Spirax Sarco 61886 Spare Parts
CBPN:
59522
MPN:
66576
Check Availability
Price:
$132.00 / EA
CBPN:
44226
MPN:
63354
Check Availability
Price:
$773.00 / EA
CBPN:
7683
MPN:
55447
In Stock: 32
Price:
$271.00 / EA
